2a. Mount the NJ95 Main unit on the Universal or
Manufacturer-specific wall plate.
1 Ethernet Uplink port Connects the NJ95 to the network.
2 Screw Tab Guide
3 Main Latch
4 Alignment Tabs
3. Installing the NJ95 Network Jack

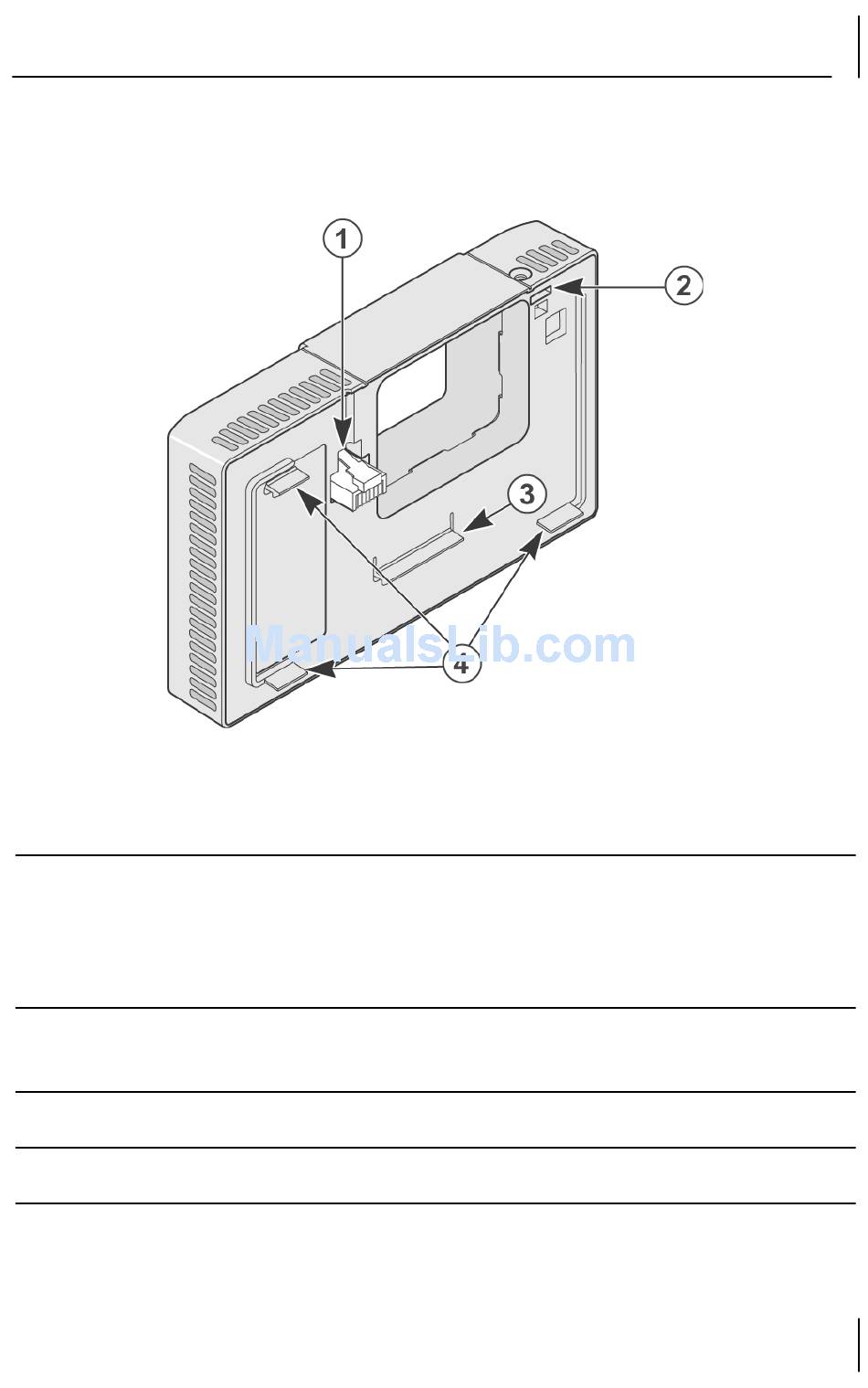

Figure 5: Rear view of NJ95
Make sure the port on the network switch to
which the NJ95 is connected is configured as a
standard MDI port.
Used to align and retain the Main unit to the Wall
Plate
Used to retain the Main unit to the Wall Plate
Used to align the Main unit to the Wall plate
