Pure Reliability lighting

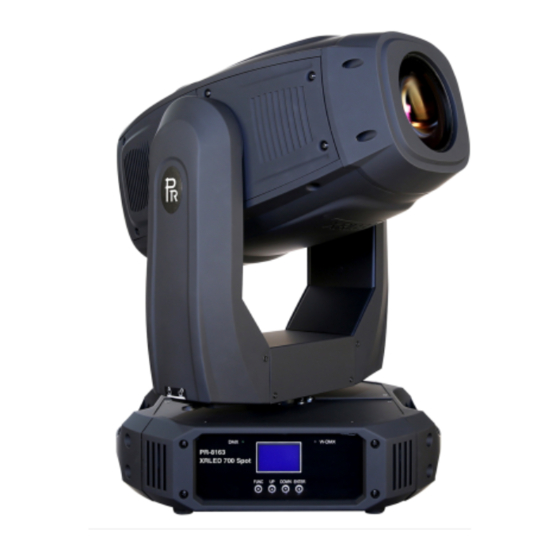

XRLED 700 Spot
PR-8163
This product manual contains important information about the safe installation and use of this projector.
Please read and follow these instructions carefully and keep this manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
.cn
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PR Lighting XRLED 700 Spot
Summary of Contents for PR Lighting XRLED 700 Spot
- Page 1 Pure Reliability lighting XRLED 700 Spot PR-8163 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference.
- Page 2 INDEX 1. SAFE USAGE OF THE PROJECTOR 2. INSTALLING THE PROJECTOR 3. POWER SUPPLY – MAINS 4. CONTROL CONNECTIONS 5. DMX TERMINATOR 6. SETUP OPTIONS-PROJECTOR CONFIGURATION 7. TO SET THE DMX START ADDRESS 8. STAND-ALONE MODE 9. MASTER/SLAVE MODE 10. TECHNICAL DATA 11.
-
Page 3: Safe Usage Of The Projector
SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The projector is for indoor use only, IP20. -
Page 4: Install The Projector
INSTALL THE PROJECTOR Handle Safety cord Clamp Warning Please run the safety cord through a safety cord hole for safety. Safety cord hold Operation menu Take 2 clamps and the safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp. -
Page 5: Power Supply-Mains
POWER SUPPLY-MAINS Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Fixtures must be installed by a Qualified electrician in accordance with all national and local electrical and construction codes and regulation. If you install a cord cap on the power cable to allow connection to power outlets, install a grounding-type (earthed) plug, following the plug manufacturer’s instructions. -
Page 6: Control Connection
CONTROL CONNECTION Connection between controller and projector and between one projector and another must be made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector). -
Page 7: Setup Options-Projector Configuration
SETUP OPTIONS-PROJECTOR CONFIGURATION W-DMX PR-8163 XRLED 700 Spot A device configuration can be set conveniently via press button switch and LCD display. Launch the projector. Press button ENTER more than 5 seconds to unlock panel, LCD display shows functional menus which have their own sub-menus for designated functions, the below is the details Press button UP or DOWN if you want to browse through the various Setup Options. -
Page 8: Technical Data
Master Slave Slave Input Output Input Output Input Output Terminator TECHNICAL DATA VOLTAGES: 100V 240V AC，50/60Hz 2. Light Source: Power:320W Color: White Color Temperature：8000K± 500K POWER CONSUMPTION: 400W@220V COLOURS: 1+6Colors(Orange, Magenta, Deep Blue, Red, Green, Yellow) With variable speed bi-directional rainbow effect GOBOS: 1 Rotating gobo wheel:7 interchangeable gobos+ white, glass or metal gobos can be fixed Indexable, bi-directionally rotatable and Wheel Scrolling at variable speeds, shakable at variable speeds... - Page 9 Φ27.8mm Gobo image diameter: Φ23mm Thickness: 1.1mm, high float glass or better Gobo Diameter: Beehive 1 Pockets 2 Curves 3 Snows 4 beehi Swirls 5 Dots 6 Plum blossom 7 1 Fixed gobo wheel : 7 interchangeable gobos+ white Gobo diameter: Φ27.8mm Gobo image diameter: Φ23mm Thickness: 0.4mm Flames 3 Flowers 4 Dots 1...
- Page 10 11. Strobe: Electronic strobe, 0.3~20 F.P.S 12. HEAD MOVEMENT: Pan 0 º ~540º , Tilt 0 º ~270º with auto position correction Swap and Invert functions of Pan and Tilt 13. BEAM ANGLE: 12° ～36° linear adjustment 14. CONTROL: DMX512, 3 pin, 5 pin interfaces 15channels in short mode,19 channels in standard mode, and 23 channels in extended mode.
-
Page 11: Operation Menu
19. LIGHT OUTPUT: 2164 36°lux 12548 3137 1394 12°lux DISTANCE(m) 12°DISTANCE(m) 1.1m 2.15m 3.23m 4.29m 5.37m 6.44m 36°DISTANCE(m) 3.18m 6.35m 9.53m 12.71m 15.88m 19.06m OPERATION MENU 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL AddR （XXX:1~512） DMX Address Reset Are You Sure CNFG Standard 19 Config Settings... - Page 12 Pan Tilt Invert （Default is OFF） Pan Correction 0~127 (default:64) Tilt Correction 0~127 (default:64) XLR First XLR ONLY DMX Mode Wireless Only (Default is XLR) Wireless First Wireless to XLR Unlink Wireless Slave Master/Slave Options （Default is slave） Master Restore ex-factory Defaults Remarks hereinafter parameters Transmission Language (default:English)
- Page 13 NO Gobo Gobo 1 ～ Gobo 7 Gobo1: Dots Gobo2: Squares Gobo3: Flames Gobo4: Flowers Gobo5: Paper Scrap Gobo6: Crisscrossing Gobo7: Stars F-Gobo wheel Forward Rotation Reverse Rotation Shake 1 ～ 6 Effect1: Pattern Crisscrossing shake Effect2:Pattern paper scrap shake Effect3: Pattern Flowers shake Effect4: Pattern Flames Shake Effect5: Pattern Squares shake...
- Page 14 Reverse Rotation Forward Rotation 0-255 Focus Linear Focusing 0-255 ZOOM Linear Zooming 0-255 Pan Location (0° ~540° ) 0-255 Tilt Location (0° ~270° ) 0-255 Pan &Tilt Speed Rotation Speed from Fast to Slow “D” displayed on top-right of the DMX mode display “I”...
- Page 15 160-175 Pattern Crisscrossing shake from fast to slow 176-191 Pattern scrap paper shake from fast to slow 192-207 Pattern Flowers shake from fast to slow 208-223 Pattern Flames shake from fast to slow 224-239 Pattern Squares shake from fast to slow 240-255 Pattern Dots shake from fast to slow 0~255 Gobo1~Gobo7...
-
Page 16: Replacing Gobos
Linear Zooming 0-255 CH13 Pan 0° ~540° Forward Rotation 0-255 CH14 Tilt 0° ~270° 0-255 CH15 Pan & Tilt Speed Speed from fast to slow CH16 Pan & tilt Time mode 0-25 Second Remark: 1. In the synchronous control of multiple projectors parameters can be transmitted from the master including: DMX mode, display setting, operation mode(user memory data included);... -
Page 17: Dmx Protocol
DMX PROTOCOL Short Standard Extended FUNCTION DESCRIPTION mode mode mode 000-015 No Strobe Strobe Pulse Effect 016-127 Strobe speed from slow to fast 128-255 Dimmer 000-255 Dimming from dark to light (0-100%) Dimmer Fine Dimmer in 16 Bit precision 000-255 000-031 White 032-047... - Page 18 Gobo shake 2 from fast to slow(Pattern 176-191 Scrap Paper) Gobo shake 3 from fast to slow(Pattern 192-207 Flowers) Gobo shake 4 from fast to slow(Pattern 208-223 Flames) Gobo shake 5 from fast to slow(Pattern 224-239 Squares) Gobo shake 6 from fast to slow(pattern 240-255 Dots) 000-015...
-
Page 19: Maintenance
Forward rotation from slow to fast 192-255 Focus 000-255 Linearly focusing Focus Fine Focus in 16 precision 000-255 Zoom 000-255 Linearly focusing Zoom Fine 000-255 Focus in 16 precision Forward rotation 0° ~ 540° 000-255 Pan Fine 000-255 Pan rotation in 16 precision Tilt 000-255 Tilt rotation 0°... -
Page 20: Troubleshooting
Do not use any organic solvent, e.g. alcohol, to clean the reflector mirror, dichroic colour filters or housing of the apparatus. TROUBLESHOOTING PROBLEM ACTION Check the fuse on the power socket. The projector doesn’t switch on Replace the lamp. The lamp comes on but the projector doesn’t ... - Page 21 Circuit Diagram 21/24...
- Page 22 PCB Connection Diagram 1. Slave Board 2. LED Driver Board 22/24...
- Page 23 3. Pan & Tilt Board 4. Master Board 23/24...
- Page 24 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020229 Version: 20151123 (Preliminary） 24/24...
