Summary of Contents for PR Lighting PR-2720

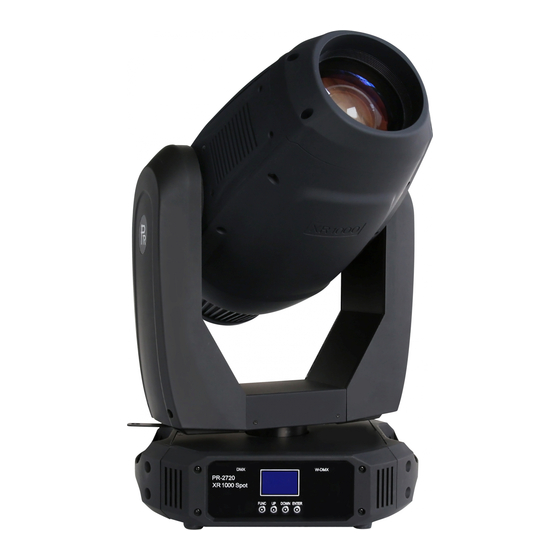

- Page 1 XR 1000 SPOT PR-2720 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com 1/22...
-
Page 2: Table Of Contents
INDEX SAFE USAGE OF THE PROJECTOR INSTALLING THE PROJECTOR FITTING THE LAMP POWER SUPPLY – MAINS CONTROL CONNECTIONS DMX TERMINATOR SETUP OPTIONS-PROJECTOR CONFIGURATION TO SET THE DMX START ADDRESS OPERATION MENU ERROR MESSAGES REPLACING GOBOS DMX PROTOCOL LED INDICATION MAINTENANCE LUBRICATION KEEPING THE PROJECTOR CLEAN TROUBLESHOOTING... -
Page 3: Safe Usage Of The Projector
SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The projector is for indoor use only, IP20. -
Page 4: Fitting The Lamp
INSTALL THE PROJECTOR Take 2 clamps and the safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the underside of the base as shown above) To pass the SAFETY CORD through the HOLES for safety! Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning. -
Page 5: Power Supply – Mains
POWER SUPPLY-MAINS Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Before connection with mains power, make sure that the voltage and frequency marked on the rating plate of the projector match what are supplied. It is recommended that each projector be supplied separately so that they may be individually switched on and off. IMPORTANT It is essential that each projector is correctly earthed(yellow/green twin wire) and the electrical installation conforms to all relevant standards. -
Page 6: Dmx Terminator
DMX TERMINATOR In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. -
Page 7: Operation Menu
OPERATION MENU First Menu Secondary Menu Third Menu Fourth Menu DMX Address （XXX:1~449） DMX 地址 Reset Are You Sure Standard 28 DMX Channel Mode Extended 35 （Default：Standard） Short 23 By Control Channel Lamp Control By Power On （Default：CHAN） By DMX Present Fan Operate Mode Config Settings Normal... - Page 8 Display On Always Display Mode Display Off After Delay Display Invert Display Invert Display Invert Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Display Options Disp Dim Level Display Dimming Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level...
-
Page 9: Error Messages
Electronic SN= Electronic SN ************ RDM Device Label RDM Device Label ANSI E1.20 RDM Version X.X Wiring Normal Pan Encoder Pan Err Count 50880 Wiring Normal Tilt Encoder Tilt Err Count 28080 X Over Temp 0 Y Over Temp 0 Driver Faults X Fault Y Fault... -
Page 10: Replacing Gobos
Sensor Err S3-M4 Prism rotation (3# drive board motor 4) error Sensor Err S3-M5 Fixed gobo wheel (3# drive board motor 5) error Over Temp Error Over Temp Error Temp Sense Error Temp Sense Error Head Fan 1 Fail Head Fan 1 Fail Head Fan 2 Fail Head Fan 2 Fail Head Fan 3 Fail... -
Page 11: Dmx Protocol
DMX PROTOCOL Short Standard Extended FUNCTION DESCRIPTION mode mode Mode 0-10 NO strobe(close) 11-25 NO Strobe(Open) Strobe Strobe speed from slow to fast 26-225 Strobe speed from fast to slow 226-246 Fully open 247-255 0-255 Dimming From dark to bright 0-255 Dimming Fine Dimmer in 16 bit... - Page 12 128-191 Rotation ,Clockwise from slow to fast 192-255 Rotation, Anti-clockwise from slow to fast Iris 0-255 From Big to Small In size Iris Fine Iris in 16 Bit 0-255 White 0-10 11-72 Iris Effect 1 73-136 Iris Effect 2 137-198 Iris Effect 3 Iris Macro 199-214...
- Page 13 236-245 Shake of Gobo 6 246-255 Shake of Gobo 7 0-128 Gobo Indexing (0°-540°) Rotation （Clockwise From slow to Fast） 129-188 Gobo Rotation Stop 189-195 196-255 Rotation （Anti-Clockwise From slow to Fast） Gobo Rotation 0-255 Gobo Rotation in 16 Bit Fine White 0-16...
-
Page 14: Led Indication
LED INDICATION DMX signal OK Green No DMX signal Flash DMX signal error Yellow Setting the panel Blue Power Running self test mode Red/Green Green Reserved Wireless signal OK Green Not connection to any transmitter Flash Lost contact with the transmitter or linkingtransmitter MAINTENANCE If the projector’s lens becomes damaged or broken it should be replaced. -
Page 15: Technical Data
TECHNICAL DATA VOLTAGES: 100V~240V AC，50/60Hz POWER CONSUMPTION: 1200W@220V LAMP: OSRAM Lok-it! HTI 1000 W/60/P28 Colour temperature 6000K PGJX36 Socket Manufacturers rated lamp life 750hours COLOURS: Smooth CYM colour mixing system with macro 1 color wheel with 7 color plus white With variable speed bi-directional rainbow effect Step/linear colour changing is COLOUR TEMPERATURE CORRECTION:... - Page 16 FOCUSING: DMX linear focusing ZOOMING: DMX linear zooming DIMMER: 0-100% linearly adjustable IRIS: 5-100% linearly adjustable Macro SHUTTER: Double shutter blades, 0.3~25 F.P.S Macro HEAD MOVEMENT: Pan 540º, tilt 270º with auto position correction BEAM ANGLE: 9°～47°, linear zoom in 16 bit precision CONTROL: DMX512, 3 pin and 5 pin interfaces RDM control protocol...
- Page 17 NET WEIGHT: 32Kg GROSS WEIGHT (IN FLIGHT CASE): 64Kg SIZES: 17/22...
- Page 18 LIGHT OUTPUT: 18/22...
-
Page 19: Electrical Diagram
ELECTRICAL DIAGRAM: 19/22... -
Page 20: Component Order Codes
COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK 030040178 Pan motor 030040178 Tilt motor 030040186 Dimmer motor 030040210 Shutter blade motor CYM/CTO motor 030040211 030040212 Rotating gobo wheel motor 030040215 Fixed gobo wheel motor Color wheel motor 030040217 030040217 Iris motor Gobo rotation motor 030040218 030040219... - Page 21 21/22...
- Page 22 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N:320020201 Version:20131204(Preliminary） 22/22...
