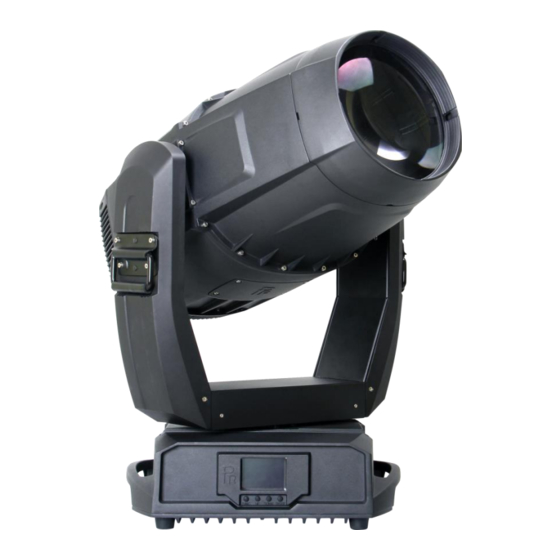

- Page 1 AQUA 580 BEAM PR-2569 The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference. PR LIGHTING LTD.
-
Page 2: Table Of Contents
INDEX ………………………………………………………………………………… SAFETY AND WARNINGS …………………………………………………………………………………………… INSTRUCTIONS ……………………………………………………………………… CLEANING AND MAINTENANCE ● …………………………………………………………………………………………… LUBRICATION ● …………………………………………………………………………………… TROUBLESHOOTING ● ……………………………………………………………………………………………… APPEARANCE …………………………………………………………………………………………… INSTALLATION ………………………………………………………………………………………………… RIGGING ● POWER CONNECTIONS ……………………………………………………………………………… ● ……………………………………………………………………… DMX CONTROL CONNECTIONS ● ……………………………………………………………………………………… DMX TERMINATOR ● ………………………………………… ALIGNMENT/INSTALLATION/REPLACEMENT OF A LAMP ●... -
Page 3: Safety And Warnings
Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty. 1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. -
Page 4: Instructions
There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety ● cord supplied through the safety cord holes for safety support. Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from ●... -
Page 5: Appearance
Remove dust or grease from the lenses. The project image appears to have a halo Carefully clean the lamp, optical lenses and other components. Check if lens are in good condition(not cracked) Heavily Defective Beam Clean dust or grease on the lens. 3. -
Page 6: Installation
4. INSTALLATION RIGGING ● Before moving a projector, Please lock Pan and Tilt. Before its operation, please unlock them. It’s forbidden to run a projector with power while it is locked. Safety Cord Warning Please run the safety cord through the two safety cord holes to ensure safety safety Clamp cord holes... -
Page 7: Dmx Control Connections
DMX CONTROL CONNECTION: ● Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector) or 5 pin XLR plugs and sockets. -
Page 8: Alignment/Installation/Replacement Of A Lamp
ALIGNMENT/INSTALLATION/REPLACEMENT OF A LAMP ● Please hold the projector well before adjustment/installation/replacement of lamp. As shown in figure1, remove fan cover of the head and heat sink. Removal/Installation of lamp as shown in figure2 Adjust the lamp as shown in figure3 Before the removal of the lamp, unplug the lamp wires. -
Page 9: Setup And Configuration
DANGER! Before replacement of gobos, the projector must be off the power. 5. SETUP AND CONFIGURATION FRONT PANEL OPERATION ● To browse through or change the projector ’s settings, press ENTER key for more than 3s(press ENTER key after power on) to key to enter the projector ’s function menus. -
Page 10: Stand-Alone Mode
STAND-ALONE MODE ● Operate the projector without connecting with a controller, enable the master mode through the operation panel, the projector will run in Stand-Alone mode automatically. DMX address can be set at any number within 512. MASTER/SLAVE MODE ● Many projectors can run synchronously in the Master/Slave mode by linking them with each other. - Page 11 Standard Mode Extended Mode View Selected Mode Config Lamp Control OFF/ ON Settings On By Power On OFF/ ON Lamp Control Control By DMX OFF/ ON Lamp ECO Power OFF/ ON XLR Only XLR First Signal Select Wireless Only Wireless First Wireless In/XLR Out Normal time out Loss of DMX...
- Page 12 Settings Tilt DMX Invert OFF/ ON Pan Tilt Swap OFF/ ON XY Feedback OFF/ ON Note: "Speed Mode" means Pan and Tilt will move from Point A to Point B at their respective maximum speeds."Time Mode" means Pan/Tilt mode Speed/Time both Pan and Tilt will arrive at designated point at the same time.
- Page 13 Speed Status Lamp Fan1 xxx on/off Lamp Fan2 xxx on/off Fan Status Head Fan xxx on/off Gobo Fan xxx on/off Lamp T Fan xxx on/off Lamp R Fan xxx on/off X Axis: XXX Acceleration Sensor Y Axis: XXX Z Axis: XXX Strobe XXX Dimmer XXX Dimmer Fine XXX...
- Page 14 Change Operation Mode? Static Scene Confirm or Cancel Strobe XXX Dimmer XXX Dimmer Fine XXX CYM Macro XXX Cyan XXX Cyan Fine XXX Yellow XXX Yellow Fine XXX Magenta XXX Magenta Fine XXX CTO XXX Color Wheel XXX Color Wheel Fine XXX Fixed Gobo Wheel XXX Rot.
-
Page 15: Dmx Protocol
Tilt Fine XXX Pan & Tilt Speed &Time Control Function Reset User Memory? Reset User Memory 1 Confirm or Cancel Reset User Memory? Reset User Memory 2 Init User Memory Confirm or Cancel Reset Static Scene? Reset Static Scene Confirm or Cancel Remarks: Lamp fan sensor is only used during lamp adjustment Open: the lamp is affected by the lamp fan. - Page 16 CTO Fine 000-255 CTO in 16 bit 000-063 Indexing (0-360degrees) 064-068 Color1(Red) 069-073 Color2( Light Green) 074-078 Color3(Blue) 079-083 Color4(Cyan) 084-088 Color5(Yellow) 089-093 Color6(Magenta) 094-098 Color7(Orange) Color Wheel 099-103 Color8(Green) 104-108 Color9(Dark Blue) 109-113 Color10(UV) 114-118 Color11(Light Yellow) 119-123 Color12(Dark Yellow) 124-127 White 128-191...
- Page 17 204-207 Shake effect 6 from slow to fast 208-211 Shake effect 7 from slow to fast 212-215 Shake effect 8 from slow to fast 216-219 Shake effect 9 from slow to fast 220-223 Shake effect 10 from slow to fast 224-227 Shake effect 11 from slow to fast 228-231...
-
Page 18: Signs On The Touch Screen
017-127 Prism3 128-255 Frost in 000-128 Indexing Prism2 129-191 Rotation(Clockwise from slow to fast) Prism2 Rotation Stop 193-255 Rotation(Anti- Clockwise from slow to fast) 000-255 Focus Linear focus 000-255 Focus Fine Focus in 16 bit precision 000-255 Pan(0° ~540° ) Pan Fine 000-255 Pan in 16 bit... -
Page 19: Error Messages
Error messages Service Address Operation Mode User Memories Reset Config Settings 9.ERROR MESSAGES The system can detect some errors during the reset, if displayed, touch to view the error. The error messages are as follows: Name Type Correction Timeout/magnet Sensor/Encoder Check if wiring, positioning parts and motors are normal Timeout/magnet Sensor/Encoder Check if wiring, positioning parts and motors are normal... -
Page 20: Technical Data
Lamp Off[Fan Error Check if all fans are normal Error] Lapsed Time Timeout Time IC Error Lapsed time X days Use hours Setting successfully 10. TECHNICAL DATA ELECTRIC PARAMETERS Input voltages 100V~240V AC，50/60Hz Input Power 800W @ 220V Current at Maximum 8A Power factor: PF〉0.9 LAMP SPECIFICATIONS PHILIPS MSD Platinum 25 R... - Page 21 092550003 A Blue 092550004 A Cyan 092550005 A Yellow 092550006 A Magenta 092550007 A Orange 092550008 A Green 092550009 A Dark Blue 092550010 A 092550011 A Light Yellow 090071258 Dark Yellow INDEPENDENT CTO SYSTEM Linear CTO system FIXED GOBO WHEEL 1 Fixed gobo wheel: 18 gobos +Open Bi-directionally rotatable, and shakable at variable speeds Gobo1...
- Page 22 Gobo 6 Gobo 7 Gobo Replaceable, Gobo diameter: Φ22.5mm ,Gobo image diameter: Φ12mm PRISM/FROST 3 pcs of prisms which can be overlapped (8 facet circular prism+ 4facet linear prism) (16 facet circular prism+ frsot) And other optional prisms FOCUS DMX linear Focus DIMMER/STROBE 0-100% Linearly adjustable/ Double shutter blades, 0.3~25 F.P.S HEAD MOVEMENT...
-
Page 23: Circuit Diagram And Pcb Connections
NET WEIGHT:36Kg WORK TEMPERATURE Maximum ambient temperature: 45° C SIZES LIGHT OUTPUT (lux) Flux 3440000 860000 215000 137600 95556 382222 DISTANCE 0.17 0.35 0.52 0.87 1.05 DIAMETER(m) 10. CIRCUIT DIAGRAM AND PCB CONNECTIONS . CIRCUIT DIAGRAM... -
Page 25: Pcb Connections
PCB CONNECTIONS ● 8-Channel SLAVE1 ：P/N230060735 8 Channel Driver Board 1 M1-1 Motor 24V Input M1-2 Motor Reserved M1-3 Motor Reserved M1-4 Motor HALL1-6Magnet Sensor M1-5 Motor HALL1-5 Magnet Sensor M1-6 Motor HALL1-4 Magnet Sensor M1-7 Motor HALL1-3 Magnet Sensor M1-8 Motor HALL1-2 Magnet Sensor HALL1-1 Magnet Sensor... -
Page 26: Component Order Codes
12. COMPONENT ORDER CODES NAME PART NO. QTY. REMARKS STEPPER MOTOR 030040073C STEPPER MOTOR 030040221C STEPPER MOTOR 030040224D STEPPER MOTOR 030040241A STEPPER MOTOR 030040242A screw mandrel Motor(with nut) 030040243A STEPPER MOTOR 030040244A STEPPER MOTOR 030040246A TURBO FAN 030060072 PWM SPEED ADJUSTING FAN 030060098 030060102 4 WIRE WATERPROOF FAN... - Page 28 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted! P/N: 320020****...
