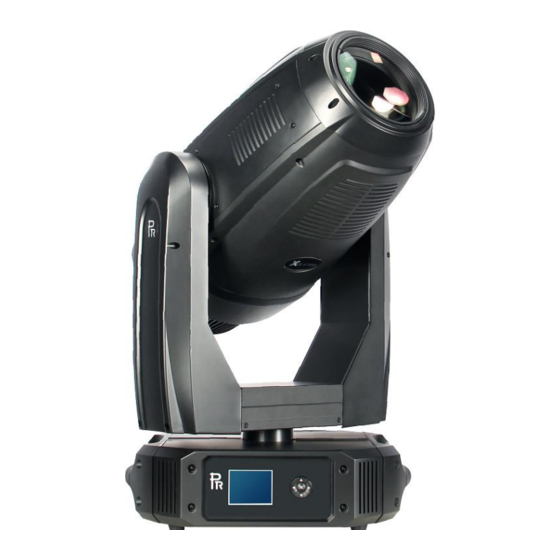

XR 1400 Spot
PR-2730
The user manual contains important information about the safe installation and use of a projector. Please read
and follow these instructions carefully and keep the manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR 1400 Spot and is the answer not in the manual?

Questions and answers

Related Manuals for PR Lighting XR 1400 Spot

Summary of Contents for PR Lighting XR 1400 Spot

  • Page 1 XR 1400 Spot PR-2730 The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference. PR LIGHTING LTD.
  • Page 2 / or dealer. Any future technical changes in the user manual won’t be with any further notice. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from...

  • Page 3: Safety And Warnings

    the delivery date but the light source is not within the warranty. 1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. User Electrical Protective...
  • Page 4 There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety ● cord supplied through the safety cord holes for safety support. Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from ●...
  • Page 5 3. APPEARANCE HEAD BASE 4. INSTALLATION RIGGING ● Before moving a projector, Please lock Pan and Tilt. Before its operation, please unlock them. It’s forbidden to run a projector with power while it is locked. WARNING CLAMP TO pass 2 SAFETY CORDS through 4 HOLES for safety HOLES for SAFETY CORDS CONTROL...
  • Page 6 The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in ● accordance with the standards concerned. If any questions about the electrical installation, do not continue but consult a qualified electrician. ● DMX CONTROL CONNECTION: ●...

  • Page 7: Back Cover

    DMX TERMINATOR CONNECTION Connect a 120 (OHM) resistor across pins 2 and 3 in an XLR plug and insert into the DMX out socket on the last unit in the chain. PIN 2 PIN 3 ALIGNMENT/INSTALLATION/REPLACEMENT OF A LAMP ● Before installation/replacement/alignment of a lamp, disconnect the unit from the power and let it cool first.
  • Page 8 FRAMING MODULE ROTATING GOBO WHEEL 2 EFFECT WHEEL ROTATING GOBO WHEEL 1 COLOUR WHEEL Lock the tilt and loosen the 6 fast-fit screws on the upper cover ,After removing the cover, you will see the structures as the figure below. Before replacing a gobo on the fixed gobo wheel, use your finger to remove the spring tightening it and take the old one out with due care.
  • Page 9 Or touch the option needed for change. Shortcut keys: After the Function Menu is entered into, there are all options for the functions on the top of the screen. On the ←,→ right there are 4 shortcut keys like Lamp Control and English/Chinese. DMX START ADDRESS ●...

  • Page 10: Operation Menu

    SLAVE SLAVE MASTER DMX IN DMX IN DMX IN DMX OUT DMX OUT DMX TERMINATOR FIRMWARE UPGRADE VIA USB INTERFACE ● Copy the .PRS file for upgrading to U disk and plug it into USB interface. The upgrading file name or its file folder can be seen via the USB firmware upgrading interface under menu SERVICE.
  • Page 11 Off After Delay Display Mode On Always Invert OFF Display Config Display Invert Invert ON Invert Auto English Language Setting Chinese Input Password 123 Touch Calibration Celsius Degree Temperature Unit Fahrenheit Degree Un-Link Wireless Really Un-Link? Defaults Restore Defaults? Pan DMX Invert OFF/ ON Tilt DMX Invert OFF/ ON...
  • Page 12 Version X.X Fan Status Strobe XXX Manual Effect Control Service Dimmer XXX … USB Update Software Change Operation Mode? DMX Mode Preset Memory Change Operation Mode? User Memory 1 Change Operation Mode? Master Mode Change Operation Mode? User Memory 2 Operation Preset Memory Change Operation Mode?
  • Page 13 No Function Colour Macro 1 Colour Macro 2 Colour Macro 3 Colour Macro 4 Colour Macro 5 Colour Macro 6 Colour Macro 7 Colour Macro 8 Colour Macro 9 Colour Macro 10 Colour Macro 11 Colour Macro 12 Colour Macro 13 Colour Macro 14 Colour Macro 15 Colour Macro 16...
  • Page 14 LEE 102 (Light Amber) LEE 103 (Straw) Lee 104 (Deep Amber) LEE 105 (Orange) LEE 106 (Primary Red) LEE 111 (Dark Pink) LEE 115 (Peacock Blue) LEE 116 (Medium Blue-Green) LEE 117 (Steel Blue) LEE 118 (Light Blue) LEE 119 (Dark Blue) LEE 120 (Deep Blue) LEE 121 (LEE Green) LEE 128 (Bright Pink)
  • Page 15 LEE 206 (Quarter C.T. Orange) LEE 247 (LEE Minus Green) LEE 248 (Half Minus Green) LEE 281 (Three Quarter C.T. Blue) LEE 285 (Three Quarter C.T. Orange) LEE 352 (Glacier Blue) LEE 353 (Lighter Blue) LEE 715 (Cabana Blue) LEE 778 (Millennium Gold) LEE 793 (Vanity Fair) CMY colour mixing from slow to fast Cyan...
  • Page 16 Colour 7(UV light) Colour 7(UV light)/white Rainbow rotation speed from slow to fast Rainbow reverse rotation speed from slow to fast Colour Wheel 1 Fine Colour Continual positioning in 16 Bit precision Colour Wheel 2 Continual positioning index 0-360° positioning White/colour 1 (Deep Red) Colour 1(Deep Red) Colour 1(Deep Red)/colour 2(Deep Magenta)
  • Page 17 white Gobo1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 Rotation speed from slow to fast Reverse rotation from slow to fast Gobo 1 shake speed from slow to fast Gobo 2 shake speed from slow to fast Gobo 3 shake speed from slow to fast Gobo 4 shake speed from slow to fast Gobo 5 shake speed from slow to fast...
  • Page 18 Reverse rotation speed from slow to fast Gobo rotation 2 Fine Gobo rotation in 16 bit precision Prism1 Open position (hole) Prism Prism1 rotation Prism index Stop rotating Rotation speed from slow to fast Stop rotating Reverse rotation speed from slow to fast Prism2 Open position (hole) Prism...
  • Page 19 channel (26/31/36) to focus the image. Priority: Gobo Wheel 2>Gobo Wheel 1> IRIS The following function can be realized after the focus channel (27/32/37) is disabled. Autofocus Off Autofocus for 5M Autofocus for 10M Autofocus for 15M Autofocus for 20M Autofocus Calibrations focus calibrations up focus calibrations down...

  • Page 20: Error Messages

    Pan/Tilt time mode Reserved Lamp On Pan/Tilt reset Colour system reset Gobo wheels reset Dimmer/Shutter reset Zoom/focus/frost/prism reset Iris/dual effect wheel reset Total reset Reserved Lamp Off Reserved 1. The projector can’t be turned on within 1 minute after the lamp-off. 2.
  • Page 21 Name Type Correction Timeout/magnet Sensor/Encoder Check if wiring, positioning parts and motors are normal Timeout/magnet Sensor/Encoder Check if wiring, positioning parts and motors are normal Tilt Timeout Check if wiring, positioning parts and motors are normal Cyan Yellow Timeout Check if wiring, positioning parts and motors are normal Magenta Timeout Check if wiring, positioning parts and motors are normal...

  • Page 22: Technical Data

    10. TECHNICAL DATA Input Voltages: 208V~240V AC，50/60Hz Input Power :1800W@220V MAX. Current: AC 8 A Power Factor：PF >90% LAMP SPECIFICATIONS: lok-it! 1400/PS Lamp Color Temperature 6000K Ceramic Stand Single-ended Manufacturers Rated Lamp Life 750hours COLORS: CMY linear color mixing system with macros 2Color wheels: 7colors+ Open, half-color effect, bi-directional rainbow effect with variable speeds, Stepping/linear color changing Color Wheel 1...
  • Page 23 GOBOS: 2 Rotating gobo wheels, each 6 Interchangeable Gobos +Open, glass gobos or metal gobos Bi-directionally rotatable, scrolling and shakable at variable speeds, indexing Rotating gobo wheel1 Rotating gobo wheel2 Gobo size: 37.3mm Gobo image size: 26mm PRISM: 1pc of 6-facet circular prism+ 1 pc of 6-facet linear prism, bi-directional rotation with variable speeds, with indexing function; FROST WHEEL: 2 frost wheels:1 heavy frost +1 light frost, linearly adjustable and both can overlap EFFECT WHEEL:...

  • Page 24: Operation Temperature

    Double blade strobe, 0.3-25 F.P.S . HEAD MOVEMENT: Pan 540º , Tilt 270º with auto position correction BEAM ANGLE: Linear zoom 5° ～ 55° with 16bit adjustment CONTROL: DMX512, 3 pin and 5 pin interfaces RDM control protocol 32channels in basic mode, 39channels in standard mode , 46channels in extended mode Self-test mode OTHER FUNCTIONS: Adjustable Pan &...
  • Page 25 SIZES: LIGHT OUTPUT: 55°（lux） 2727 5°（lux） 149299 37325 16589 9331 5972 4147 55° 5° DISTANCE （m） 0m 5° DIAMETER （m） 0.42 0.85 1.27 1.70 2.12 2.54 55° DIAMETER （m） 0 4.85 9.70 14.55 19.40 24.25 29.10...

  • Page 26: Circuit Diagram And Pcb Connections

    11. CIRCUIT DIAGRAM AND PCB CONNECTIONS CIRCUIT DIAGRAM ●...
  • Page 27 12. COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK 192010136 POWER SWITCH S-350-24 193020008 POWER FILTER 20A 115/250VAC 190010150 THERMAL SWITCH 250V-16A 1400W ELECTRONIC 040070140 ELECTRONIC BALLAST BALLAST 040090066 IGNITER IGNITER 100070047 LAMP LOK-IT！1400W/PS OSRAM 290151205 PAN BELT 558-3M-11 290151207 TILT BELT 885-3M-12 PAN MOTOR...
  • Page 28 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted! P/N: 320020657...

This manual is also suitable for:
