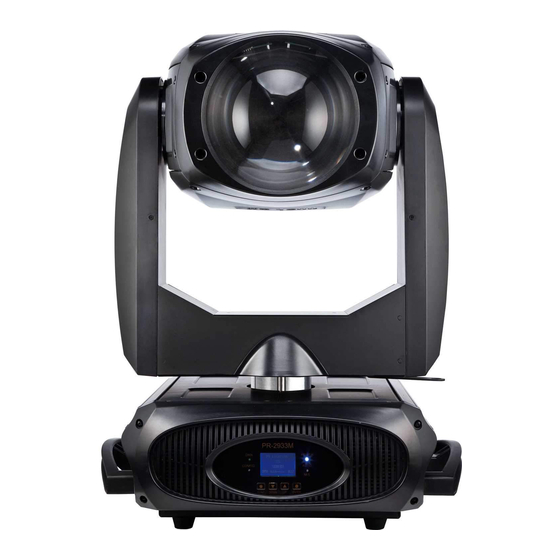

XS 1200 Beam
PR-2933M
This product manual contains important information about the safe installation and use of this
projector. Please read and follow these instructions carefully and keep this manual in a safe place
for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XS 1200 Beam and is the answer not in the manual?

Questions and answers

Related Manuals for PR Lighting XS 1200 Beam

Summary of Contents for PR Lighting XS 1200 Beam

  • Page 1 XS 1200 Beam PR-2933M This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD.

  • Page 2: Table Of Contents

    INDEX SAFE USAGE OF THE PROJECTOR INSTALLING THE PROJECTOR FITTING THE LAMP POWER SUPPLY – MAINS CONTROL CONNECTIONS DMX TERMINATOR SETUP OPTIONS-PROJECTOR CONFIGURATION TO SET THE DMX START ADDRESS OPERATION MENU ERROR MESSAGES REPLACING GOBOS DMX PROTOCOL LED INDICATION MAINTENANCE LUBRICATION KEEPING THE PROJECTOR CLEAN TROUBLESHOOTING...

  • Page 3: Safe Usage Of The Projector

    SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The projector is for indoor use only, IP20.

  • Page 4: Fitting The Lamp

    INSTALL THE PROJECTOR Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the underside of the base as shown above) To pass 2 SAFETY CORDS through 4 HOLES for safety! Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning.
  • Page 5 POWER SUPPLY-MAINS Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off.

  • Page 6: Dmx Terminator

    DMX TERMINATOR In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain.
  • Page 7 Launch the projector. Press button ENTER or encoder knob more than 5 seconds to unlock panel. Press button FUNC to display DMX address; Press button UP and DOWN, you can set the address; Press button ENTER to confirm; In the same time. The GREEN LED will flash one time. It means the setting has been enabled.

  • Page 8: Operation Menu

    OPERATION MENU 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL PR LIGHTING XS SERIES DMX Address=001 XS 1200 BEAM DMX Address DMX Address Reset Reset Are You Sure? DMX Mode Standard 16 DMX Mode DMX Mode Extended 16 DMX Mode...
  • Page 9 On Always Display Mode Off After Delay Display Invert Display Invert Display Invert Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Display Dimming Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level full...

  • Page 10: Error Messages

    ERROR MESSAGES In the course of launch, this unit examines automatically whether there are errors and if there are, it will display information as follows: Display Message Sensor Err S1-M1 Colour wheel (1# drive board motor 1) error Sensor Err S1-M2 CYM-cyan (1# drive board motor 2) error Sensor Err S1-M3 CYM-yellow (1# drive board motor 3) error...

  • Page 11: Dmx Protocol

    DMX PROTOCOL Short Standard Extended FUNCTION DESCRIPTION mode mode mode 000-010 Black 011-025 Open Strobe 026-225 Strobe speed from slow to fast 226-246 Macro 247-255 Open Black 000-003 Dimmer 004-255 Dimming from dark to light (0-100%) Dimmer Fine 000-255 Dimmer in 16 Bit precision 000-016 White 017-035...
  • Page 12 Rainbow reverse rotation speed from 192-255 fast to slow 000-016 White 017-032 Gobo1 Gobo 2 033-048 049-064 Gobo 3 065-080 Gobo 4 Gobo 5 081-096 097-112 Gobo 6 113-127 Gobo 7 Fixed Gobo Rotation speed from slow to fast 128-149 Wheel 150-171 Reverse rotation from slow to fast...
  • Page 13 Pan Fine 000-255 Pan rotation in 16 precision Tilt 000-255 Tilt rotation Tilt Fine 000-255 Tilt rotation in 16 precision Pan & Tilt 000-255 Pan&Tilt speed from fast to slow speed 000-047 Reserved 048-080 Reset 081-112 Reserved 113-144 Lamp off ( stop in DMX value for 10 s) Control 145-168 Reserved...

  • Page 14: Led Indication

    LED INDICATION DMX signal OK Green No DMX signal Flash DMX signal error Yellow Setting the panel Blue Power Running self test mode Red/Green Green Reserved MAINTENANCE If the projector’s lens becomes damaged or broken it should be replaced. If the lamp becomes damaged or deformed in any way it must be replaced.

  • Page 15: Troubleshooting

    TROUBLESHOOTING PROBLEM ACTION Check the fuse on the power socket. The projector doesn’t switch on Replace the lamp. The lamp comes on but the projector Make sure that the projector is correctly configurated. doesn’t respond to the controller Replace or repair the DMX cable. The projector only functions intermittently Make sure the fan is working and not dirty.

  • Page 16: Technical Data

    TECHNICAL DATA VOLTAGES: 220V/230V AC，50/60Hz Option: 200V/240V AC，50/60Hz POWER CONSUMPTION: 1300W@220V LAMP: PHILIPS MSR Gold 1200 SA/2 DE Colour Temperature 7500°K Socket SFc10-4，double ends Manufacturers Rated Lamp Life 750 hours replacement OSRAM SharXS HTI 1200 W/D7/60 Colour Temperature 6000°K Socket SFc10-4，double ends Manufacturers Rated Lamp Life 750 hours replacement...
  • Page 17 DIMMER: 0-100% linearly adjustable SHUTTER: Double shutter blades, 0.3~25 F.P.S HEAD MOVEMENT: Pan 540º, Tilt 270º with auto position correction BEAM ANGLE: Focus 5°in 16 Bit precision Extended frost 1：9.5° Extended frost 2：11.5° CONTROL: DMX512, 3 pin and 5 pin interfaces RDM control protocol 16 channels in short mode, 20 channels in standard mode, and 25 channels in extended mode.
  • Page 18 LIGHT OUTPUT: 11.5°Lux 6007 3379 13516 54065 2163 9.5°Lux 7009 3943 15771 63084 2523 5°Lux 33075 18605 74419 297675 11907 5° 9.5° 11.5° DISTANCE(m) DIAMETER(m) 0.45 2.25 0.90 1.35 1.80 DIAMETER(m) 0.91 4.55 1.82 2.73 3.64 DIAMETER(m) 1.00 5.00 2.00 4.00 3.00 18/22...
  • Page 19 DMX-SENS2 DMX-SENS1 DMX-SENS2 DMX-SENS1 SW-PB LOW Ballast HIGH Ballast...

  • Page 20: Component Order Codes

    COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK 193020005 20A 115/250VAC MAINS FILTER 190010074 250V-16A THERMOSTAT IGNITOR 040090036 1500W 040030056 IGN40C12E TRANSFARMER 040070059 HTI 1500W/60/P50 BALLAST 140010043 CAPACITOR 100050064 LAMP 290151323 TILT DRIVE BELT 290151322 PAN DRIVE BELT 030040023 FOCUS MOTOR FIXED GOBO WHEEL MOTOR 030040154 030040084...
  • Page 21 21/22...
  • Page 22 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020038 Version: 20111111(Preliminary) 22/22...
