Summary of Contents for PR Lighting XR380 BEAM

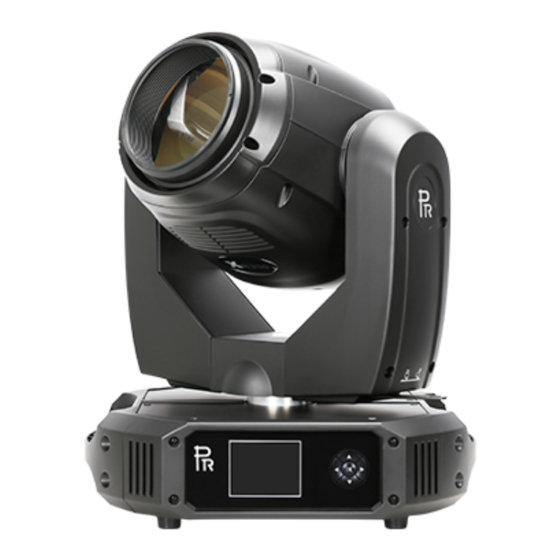

- Page 1 XR 380（BEAM） PR-2345 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...
-
Page 2: Table Of Contents
INDEX ……………………………………………………………………………………… SAFETY AND WARNINGS …………………………………………………………………………………………………… INSTRUCTIONS ……………………………………………………………………………………………………… 5 APPEARANCE …………………………………………………………………………………………………… INSTALLATION …………………………………………………………………………………… SETUP AND CONFIGURATION ……………………………………………………………………………………………… OPERATION MENU ………………………………………………………………………………………………… DMX PROTOCOL ………………………………………………………………………………… SIGNS ON THE TOUCH SCREEN ………………………………………………………………………………………………… ERROR MESSAGE ………………………………………………………………………………………………… TECHNICAL DATA ……………………………………………………………………………………………… CIRCUIT DIAGRAM …………………………………………………………………………………… COMPONENT ORDER CODES ACCESSORIES The following items are supplied with the projector and please check: Name... -
Page 3: Safety And Warnings
Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty. 1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. -
Page 4: Instructions
All power cords must conform to related safety and regulations ● While being operated, the projector should not be under rains or in humidity. ● Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other ●... -
Page 5: Appearance
TROUBLESHOOTING ● PROBLEM ACTION Check the fuse on the power socket. The projector doesn’t switch on Check the lamp. The lamp is on but the projector doesn’t respond Make sure that the fixture’s start address is right ... -
Page 6: Installation
4. INSTALLATION RIGGING ● Before moving a projector, Please lock Pan and Tilt. Before its operation, please unlock them. It’s forbidden to run a projector with power while it is locked Clamp Safety cord Warning: Please run the safety cord through the safety cord holes for safety. Take 2 clamps and 1 safety cords out from the package and mount 2 clamps on the underside of fixture with 4 retainers attached to each clamp. - Page 7 If any questions about the electrical installation, do not continue but consult a qualified electrician. ● DMX CONTROL CONNECTION ● Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector) or 5 pin XLR plugs and sockets.
- Page 8 ALIGNMENT/INSTALLATION/REPLACEMENT OF A LAMP ● Lock Tilt before lamp adjustment/installation/replacement. As figure1 below, loosen 4 screws of lamp chamber cover. 示例1：松开8颗快速安装螺丝 figure1:loosen 8 pcs of fast-fit screws Removal/installation of a lamp as the figure2 below: Figure2: lamp adjustment 1. Use a cross screw driver to remove screws for fans on both sides of the amp and open the fans. 2.
-
Page 9: Setup And Configuration
Before the lamp’s removal, unplug its both wires. After a new lamp installed, plug its both wires. Don’t touch the internal surface of the reflector and the burner of the lamp with bare hands so as not to ● impair the beam output. While lamp’s installation, do not damage the metal wire around the burner. Please read "Instructions "... - Page 10 The projector configuration can be set conveniently via push buttons and color touch screen. To browse through or change the projector ’s settings, touch the white area of the touch screen or press OK button for more than ► key to enter the projector ’s function 3s(Only powered by the battery, pressing the OK button) to unlock the screen , then press menus.
-
Page 11: Operation Menu
Operate the projector without connecting with a controller, enable the master mode through the operation panel, the projector will run in Stand-Alone mode automatically. DMX address can be set at any number within 512. MASTER/SLAVE MODE ● Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First, connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR control cable and then connect the second fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. - Page 12 ArtNet Only ArtNet In/XLR Out sACN Only sACN In/XLR Out Normal time out Loss of DMX Hold Last Value Off After Delay Display Mode On Always Invert OFF Display Config Display Invert Invert ON Invert Auto English Language Setting Chinese Celsius Degree Temperature Unit Fahrenheit Degree...
-
Page 13: Dmx Protocol
Driver Board1 ××× ××× ×××××××××××× Electronic SN XR 380 Beam RDM Device Label ANSI E1.20 RDM Speed RSpeed ××× ××× Lamp Fan ××× ××× Fan Status Basic Fan ××× ×× Head Fan1 ××× ×× Head Fan2 Error Count ××× Lamp Fan ×××... - Page 14 Short Standard Extended FUNCTION DESCRIPTION mode mode Mode Close 000-010 Open 011-025 Strobe Strobe from slow to fast 026-225 Strobe Macro(Strobe at random) 226-246 Open 247-255 Close 000-035 Dimmer Linear Dimmer（0-100%） 036-255 Dimmer Fine Dimmer in 16 bit 000-255 000-006 White 007-010 White /Red...
- Page 15 000-008 White 009-015 Gobo 1 016-022 Gobo 2 023-029 Gobo 3 030-036 Gobo 4 037-043 Gobo 5 044-050 Gobo 6 051-057 Gobo 7 058-064 Gobo 8 Fixed Gobo 065-071 Gobo 9 Wheel 072-078 Gobo 10 079-085 Gobo 11 086-092 Gobo 12 093-099 Gobo 13 100-106...
- Page 16 058-067 Gobo 6 068-077 Gobo 7 Rotating Gobo Wheel 078-087 Gobo 8 088-097 Gobo 9 098-107 Gobo 10 108-117 Gobo 11 118-127 Gobo 12 Reverse Rotation （From slow 128-143 to Fast） Forward Rotation （From slow 144-159 to Fast） 160-167 Shake 1（From Fast to slow） Shake 2 （From Fast to slow）...
-
Page 17: Signs On The Touch Screen
Prism Rotation Stop 128-191 clockwise Rotation （From 192-255 slow to Fast） Focus 000-255 Linear Focus Focus Fine 000-255 Focus in 16 bit precision Pan(0° ~540° ) 000-255 Pan Fine Pan in 16 bit precision 000-255 Tilt Tilt(0° ~270° ) 000-255 Tilt Fine Tilt in 16 bit precision 000-255... -
Page 18: Error Message
User Memories Reset Config Settings 9. ERROR MESSAGE The system can detect some errors during the reset, if displayed, touch to view the error. The error messages are as follows: Name Type Correction Timeout/magnet Sensor/Encoder Check if wiring, positioning parts and motors are normal Tilt Timeout/magnet Sensor/Encoder Check if wiring, positioning parts and motors are normal... - Page 19 570W@220V Power factor: PF>0.9 LAMP: Phlips MSD Platinum Flex 300S MSD Silver 380W ( Optional ) Colour Temperature 7800K 1500hrs Manufacturers Rated Lamp Life COLOR S: 1 Color Wheel 13 dichroic color filters plus white variable speed and bi-directional rainbow effect linear color changing is available GOBOS: 1 Fixed gobo wheel :...
-
Page 20: Circuit Diagram
OTHER FUNCTIONS: Adjustable Pan & Tilt speed Fixture and lamp usage time display Modular construction for easy maintenance DMX512 wireless receiver DMX512 wireless transmitter (optional) HOUSING: Composite plastic, IP20 WEIGHT: 16Kg SIZES: LIGHT OUTPUT: Luminous Flux（ Lux ） 126222 71000 1136000 284000 31556 45440... -
Page 22: Component Order Codes
COMPONENT ORDER CODES NAME CODE NUMBER REMARKS LAMP BALLAST 040070148 LAMP 100070052 SWITCHING POWER SUPPLY 192010223 FUSE 270041005 TILT BELT 290151322 PAN BELT 290151331 PRISM WHEEL BELT 290151355 FOCUS BELT 290151310 PAN MOTOR 030040205A TILT MOTOR PRISM WHEEL MOTOR 030040217A ROTATING GOBO WHEEL MOTOR 030040073B COLOR WHEEL MOTOR... - Page 24 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N:320021139 Old Version: 20200904 New Version:20201028...
