Summary of Contents for PR Lighting PR5000 Spot

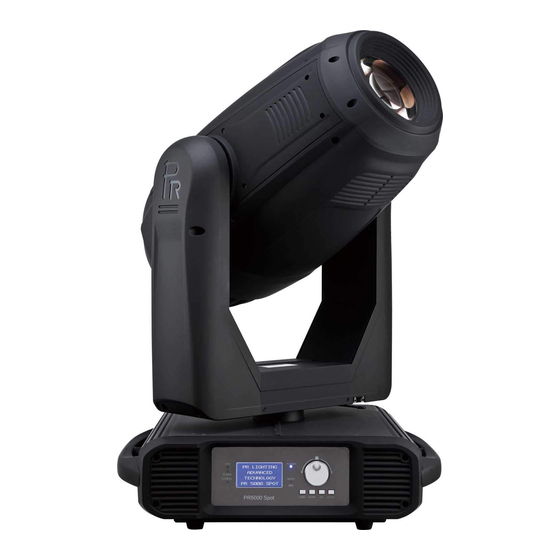

- Page 1 PR5000 Spot This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...
-
Page 2: Table Of Contents
INDEX SAFE USAGE OF THE PROJECTOR INSTALLING THE PROJECTOR FITTING THE LAMP POWER SUPPLY – MAINS CONTROL CONNECTIONS DMX TERMINATOR SETUP OPTIONS-PROJECTOR CONFIGURATION TO SET THE DMX START ADDRESS OPERATION MENU ERROR MESSAGES REPLACING GOBOS DMX PROTOCOL LED INDICATION MAINTENANCE LUBRICATION KEEPING THE PROJECTOR CLEAN TROUBLESHOOTING... -
Page 3: Safe Usage Of The Projector
SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The projector is for indoor use only, IP20. -
Page 4: Fitting The Lamp
INSTALL THE PROJECTOR SAFETY CORD WARNING CLAMP To pass 2 SAFETY CORDS through 4 HOLES for safety! HANDLE CONTROL PANEL Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp. - Page 5 POWER SUPPLY-MAINS Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off.
-
Page 6: Dmx Terminator
This DMX start address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the controller. PR5000 Spot have 3 DMX modes. There are standard mode, extended mode and short mode. For example standard mode have 31 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 032, No. - Page 7 Press button FUNC to display DMX address; Press button UP and DOWN, you can set the address; Press button ENTER to confirm; In the same time. The GREEN LED will flash one time. It means the setting has been enabled. Press button FUNC, it will return to the upper menu one by one.
-
Page 8: Operation Menu
OPERATION MENU 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL PR LIGHTING DMX Address=XXX PR5000 SPOT DMX Address Short Mode DMX Address Standard Mode Extended Mode Reset Reset Are You Sure? DMX Mode Standard DMX Mode DMX Mode Extended DMX Mode... - Page 9 Zoom Invert CMY Invert CMY Invert CMY Invert CTO Invert CTO Invert CTO Invert Defaults Defaults Defaults Restore Defaults Display On Always Display Mode Display Off After Delay Display Invert Display Invert Display Invert Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level...
- Page 10 Driver Board 4 = Driver Board 4 XX ℃ Pan and Tilt = Pan and Tilt XX ℃ Head Sensor= Head Sensor XX ℃ Display Board = Display Board X.X.X Driver Board 1 = Driver Board 1 X.X.X Driver Board 2 = Driver Board 2 X.X.X Driver Board 3 =...
-
Page 11: Error Messages
ERROR MESSAGES In the course of launch, PR5000 Spot examines automatically whether there are errors and if there are, it will display information as follows: Display Message Sensor Err S1-M1 Colour wheel (1# drive board motor 1) error Sensor Err S1-M2... - Page 12 Note: If the gobo is a glass one, it should be touched with glabrous, clean and soft tissue or cloth matted between hand and glass instead of with bare hand. Close the rear cover and fasten 6 screws. 12/24...
-
Page 13: Dmx Protocol
DMX PROTOCOL Short Standard Extended FUNCTION DESCRIPTION mode mode mode 000-010 Black 011-025 Open Strobe 026-225 Strobe speed from slow to fast 226-246 Macro 247-255 Open Black 000-003 Dimmer Dimming from dark to light (0-100%) 004-255 Dimmer Fine 000-255 Dimmer in 16 Bit precision White 000-016 Yellow+ Magenta=Red... - Page 14 white 121-127 Rainbow rotation speed from fast to 128-191 slow Rainbow reverse rotation speed from 192-255 fast to slow Iris 000-255 Iris from large to small (0-100%) Iris Fine 000-255 Iris in 16 Bit precision Iris macro function is invalid 000-010 Macro function 1: Iris from large to small change with speed from slow to...
- Page 15 Stop rotating 189-195 Reverse rotation speed from slow to 196-255 fast Gobo rotation 1 000-255 Gobo rotation in 16 bit precision Fine white 000-018 Gobo1 019-036 Gobo 2 037-054 Gobo 3 055-073 Gobo 4 074-091 Gobo 5 092-109 Gobo 6 110-127 Rotating Gobo Rotation speed from slow to fast...
- Page 16 Pan & Tilt 000-255 Pan&Tilt speed from fast to slow speed Reserved 000-047 Reset 048-080 Reserved 081-112 Lamp off ( stop in DMX value for 10 s) 113-144 Control Reserved 145-168 Lamp power reduced to 50% 169-200 Reserved 201-223 Lamp on (See remark below) 224-255 Remark: If you intend to turn on/off the lamp via the last channel of the controller, don’t attempt to push the channel to value...
-
Page 17: Led Indication
LED INDICATION DMX signal OK Green No DMX signal Flash DMX signal error Yellow Setting the panel Blue Power Running self test mode Red/Green Green Reserved Wireless signal OK Green Not connection to any transmitter Flash Lost contact with the transmitter or linking transmitter MAINTENANCE If the projector’s lens becomes damaged or broken it should be replaced. -
Page 18: Troubleshooting
TROUBLESHOOTING PROBLEM ACTION Check the fuse on the power socket. The projector doesn’t switch on Replace the lamp. The lamp comes on but the projector Make sure that the projector is correctly configurated. doesn’t respond to the controller Replace or repair the DMX cable. The projector only functions intermittently Make sure the fan is working and not dirty. -
Page 19: Technical Data
TECHNICAL DATA VOLTAGES: 200V/220V/230V/240V AC，50/60Hz POWER CONSUMPTION: 1800W@220V LAMP: OSRAM HTI 1500W/60/P50 Colour Temperature 6000°K PGJX50 ，single ended Socket Manufacturers Rated Lamp Life 750 Hours replacement PHILIPS MSR Gold 1500FastFit Colour Temperature 6000°K PGJX50 ，single ended Socket Manufacturers Rated Lamp Life 750 Hours replacement COLOURS: Smooth CYM colour mixing system with macro... - Page 20 EFFECT WHEEL: 1 interchangeable effect wheel, bi-directionally rotatable at variable speeds FOCUS: DMX linear focus DIMMER: 0-100% linearly adjustable IRIS： 5-100% linearly adjustable Macro SHUTTER: Double shutter blades, 0.3~25 F.P.S HEAD MOVEMENT: Pan 540º, Tilt 270º with auto position correction BEAM ANGLE: 10°～68°, Linear zoom in 16 bit precision CONTROL:...
- Page 21 WEIGHT: 48Kg SIZES: LIGHT OUTPUT: 68° lux 1816 93385 23346 10° lux 10376 5837 3735 DISTANCE(m) 10° DIAMETER(m) 0.87 1.74 2.61 3.48 4.36 68° DIAMETER(m) 5.93 11.86 17.79 23.72 29.65 21/24...
- Page 22 M1-6A DIMMER View side of no axletree M1-1 M1-2 M1-3 M1-4 M1-5 M1-6B M2-1 M2-2 M2-3 M2-4 M2-5 M2-6 COLOUR CYAN YELLOW MAGENTA DIMMER IRIS FIXED GOBOS ROTATING-GOBO1 GOBO1 ROTATING STROBE 1 STROBE 2 View side of no axletree View side of no axletree View side of no axletree View side of no axletree View side of no axletree...
-
Page 23: Component Order Codes
COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK POWER SUPPLY 192010136 S-350-24 MAINS FILTER 193020008 20A 115/250VAC THERMOSTAT 190010150 250V-16A ELECTRIC BALLAST 040070100 1500W IGNITOR 040090052 IGN40C12E LAMP 100050087 HTI 1500W/60/P50 TILT DRIVE BELT 290151320 PAN DRIVE BELT 290151321 FAN NEAR GOBO 030060064 FAN NEAR THE LAMP 030060065... - Page 24 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020024 Version: 20110517 24/24...
