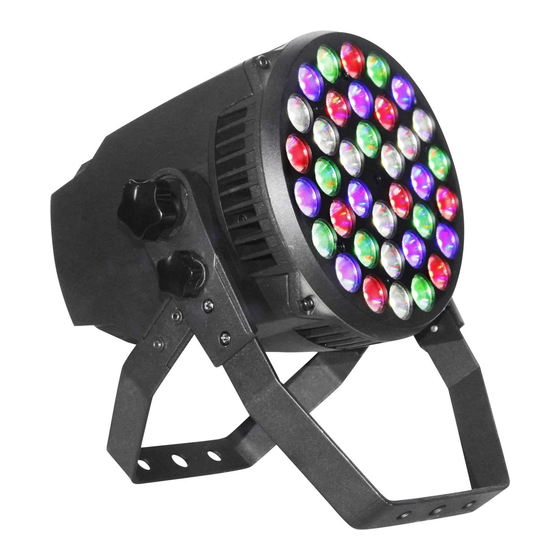

XPar 336
PR-8950
This product manual contains important information about the safe installation and use of this
projector. Please read and follow these instructions carefully and keep this manual in a safe place
for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XPar 336 and is the answer not in the manual?

Questions and answers

Related Manuals for PR Lighting XPar 336

Summary of Contents for PR Lighting XPar 336

  • Page 1 XPar 336 PR-8950 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...
  • Page 2 INDEX SAFE USAGE OF THE PROJECTOR INSTALLING THE PROJECTOR CONTROL SYSTEM AND POWER CONNECTIONS DMX TERMINATOR SETUP OPTIONS-PROJECTOR CONFIGURATION TO SET THE DMX START ADDRESS OPERATION MENU DMX PROTOCOL INDICATION OF LED DISPLAY MAINTENANCE TROUBLESHOOTING TECHNICAL DATA ELECTRICAL DIAGRAM COMPONENT ORDER CODES Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without notice.

  • Page 3: Safe Usage Of The Projector

    SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton, check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The projector can be used indoors and outdoors, IP20.

  • Page 4: Install The Projector

    Note: Care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. The body of the plug is not connected in any way. The XPar 336 accepts digital control signals in protocol DMX512 (1990).

  • Page 5: Dmx Terminator

    All of the connections are as the figure below. Power IN Power IN Power IN DMX Controller DMX OUT DMX OUT DMX IN DMX IN XLR terminator DMX TERMINATOR In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals.

  • Page 6: To Set The Dmx Start Address

    TO SET THE DMX START ADDRESS Each Xpar336 must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the controller.

  • Page 7: Operation Menu

    OPERATION MENU 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL AddR （XXX:1~512） (DMX address) (Standard mode) (DMX mode) (Extended mode) SHRT (Short mode) dISP CNFG (Display settings) (Shut off digital CRT without (Config settings) pressing buttons in 5 minutes) SLAV mORS (Slave) mAST...
  • Page 8 Number Colour Only when setting of “Number” submenu has been done and return to “ET XX” menu, corresponding colour effect comes out. You can choose numbers from Group COL1 to COL4 separately to form a user memory. 8/17...

  • Page 9: Dmx Protocol

    DMX PROTOCOL Short Standard Extended FUNCTION DESCRIPTION mode mode mode Dimmer 000-255 Linear Dimming from dark to light Dimmer Fine 000-255 Dimmer in 16 Bit precision No effect Colour Temperature Colour temperature linear adjustment 001-255 from 3200K to 10000K No effect 001-015 Colour Temperature 3200K 016-031...
  • Page 10 096-111 Preset memory 7 112-127 Preset memory 8 128-143 Preset memory 9 144-159 Preset memory 10 160-175 Preset memory 11 176-191 Preset memory 12 192-207 Preset memory 13 208-223 Preset memory 14 224-239 Preset memory 15 240-255 Preset memory 16 No effect 001-015 User memory 1...
  • Page 11 240-255 Speed 16, the slowest Note: **** Channel priority from high to low is as the following: preset memory, user memory, RGBW dimming, HSV dimming, macro channel; ****When high priority channel is used, low priority channel is No effect. 11/17...

  • Page 12: Maintenance

    INDICATION OF LED CHARACTER DMX signal OK Decimal point of the first character No DMX signal Master / slave signal is OK Decimal point of the third character No master / slave signal When setting master mode Decimal point of the fourth character When setting slave mode Parameters that LED characters display Flash...

  • Page 13: Technical Data

    TECHNICAL DATA VOLTAGES: 200V/220V /230V/240V AC, 50/60Hz Optional: 100V/120V AC, 50/60Hz POWER CONSUMPTION: 120W@220V LED: Power consumption Quantity 36( 9R＋9G＋9B＋9W） Manufacturers Rated LED Life 50000 Hours COLOURS: RGBW linear color mixing with Macro COLOR TEMPERATURE CORRECTION Linear color temperature correction from 3200K to 10000K DIMMER: 0-100% linearly adjustable STROBE:...
  • Page 14 Parameters about DMX mode, Display setting status, operation mode can be transmitted by synchronous control. HOUSING: High temperature ABS +die-casting aluminum, IP20 WORK ENVIRONMENT TEMPERATURE: -20°C~40°C WEIGHT: 2.3kg SIZES: Light output: 26.5° lux(RGBW) 1638 26.5° lux(R) 26.5° lux(G) 26.5° lux(B) 26.5°...
  • Page 15 15/17...

  • Page 16: Component Order Codes

    COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK 070070047 LED LENS 15° 230090002 SIGNAL CABLE 3meters 190010118 150W58V POWER SWITCH DRIVER BOARD 230060114 LED CONTROL BOARD 230060137 LED LAMP BOARD 230020285 16/17...
  • Page 17 PR LIGHTING LTD. PR New Hi-tech Science Park, 1582 Xingye Avenue Nancun Panyu, Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020089 Version: 20120717 17/17...
