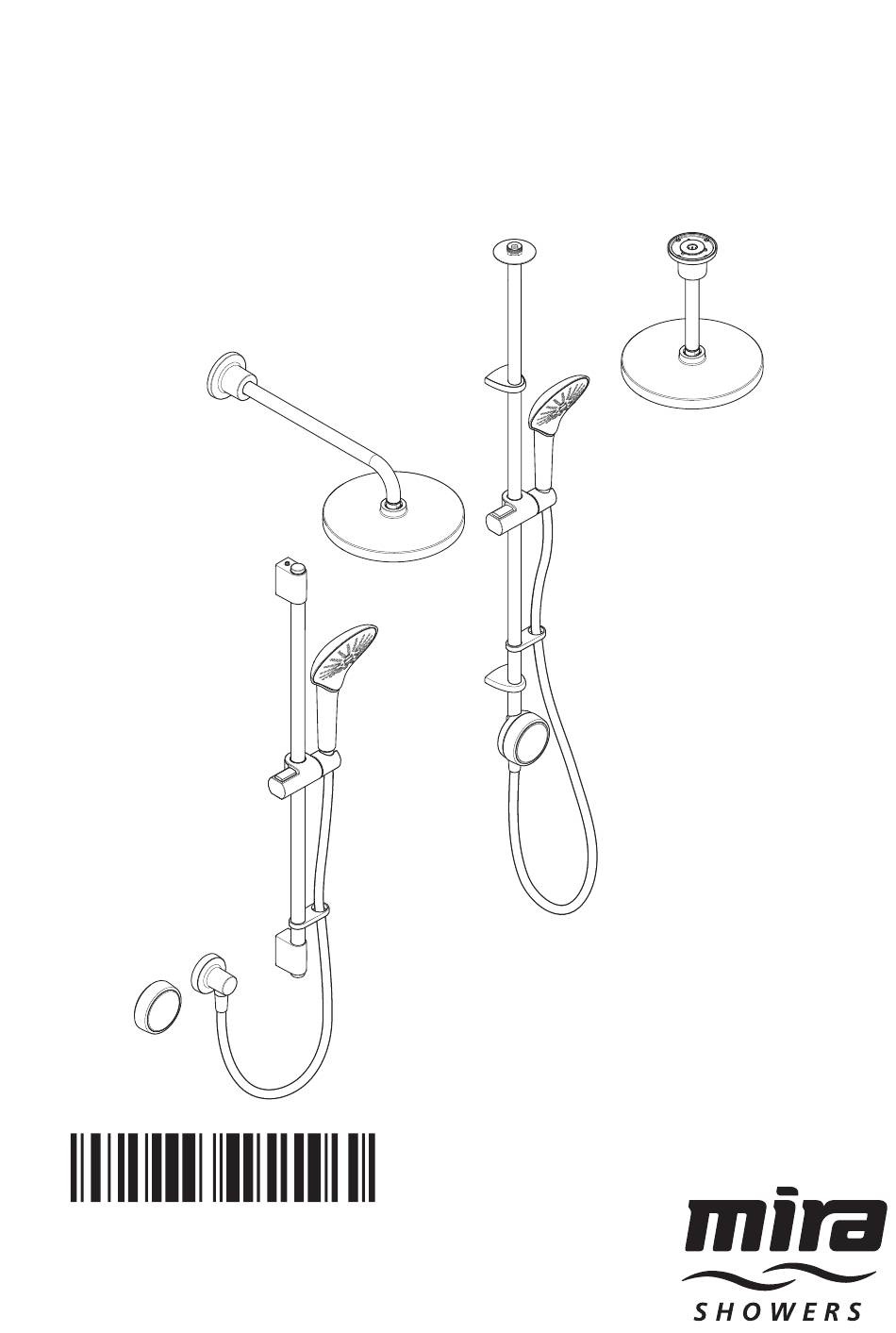

- Page 1 Mira Activate Digital Shower 1399980 Installation and User Guide Please leave these instructions with the user...
-
Page 2: Table Of Contents
Thank you for purchasing a Mira Activate. To enjoy the full potential of your new product, please take time to read this guide thoroughly, and having done so, keep it handy for future reference. For step-by-step installation videos, datasheets or spares information, please visit the Mira Showers website. -
Page 3: Important Safety Information
Important Safety Information Products manufactured by Kohler Mira Ltd. are designed to be safe, provided that they are installed, used and maintained in good working order, in accordance with our instructions and recommendations. Follow all warnings, cautions and instructions contained in this guide, and on, or inside the product. - Page 4 9. DO NOT perform any unspecified modifications, drill or cut holes in the product other than instructed by this guide. When servicing only use genuine Kohler Mira replacement parts. 10. If the product is dismantled during installation or servicing then, upon completion, an inspection must be made to ensure all electrical connections are secure and that there are no leaks.
- Page 5 19. The maximum mixed water temperature from the product is 48°C to take into account losses in metal baths. It is not a safe bathing or showering temperature. 20. Always check the water temperature is safe before bathing or showering. 21.
-
Page 6: Pack Contents
Pack Contents Digital Mixing Valve High Pressure/Combi 2 x Push-Fit Isolators 1 or 2 x Outlet Connector (Depending on number of outlets) Digital Mixing Valve 3 x Fixing Screws 3 x Wall Plugs 2 x Pozi Screws (3.5 x 12mm) 1 x Power Supply 2 x Fixing Feet Digital Mixing Valve Pumped/Gravity... - Page 7 Ceiling Fed Shower Fitting 4 x Wall Plugs 4 x Fixing Screws 1 x Handset 1 x Elbow 1 x Slide Bar Assembly 2 x Wall Spacers & 4 Long Fixing Screws (Optional Fitment) 1 x User Controller (fitted) 1 x Hose 2 x Rubber Washers...
- Page 8 Rear Fed Shower Fitting 2 x Cover Cap 2 x Locking Screw 1 x Controller Cable 1 x Handset 1 x Slide Bar Assembly 1 x Hose 2 x Rubber Washers 2 x Wall Plugs 1 x RAC Assembly 2 x Mounting Brackets 2 x Fixing Screws 4 x Wall Plugs 4 x Fixing Screws...
- Page 9 Overhead Fitting Kit (Dual Outlet models only) 1 x Shower Arm Note: For rear fed, choose the length of the shower arm and cut off straight end. For ceiling fed, choose the length of the 4 x Wall Plugs shower arm and cut off bent end using a 22 mm stainless steel pipe slice, or hack saw.
-
Page 10: Guarantee
Guarantee The Mira Activate has been designed for domestic use only, it is not recommended for Commercial or Healthcare use. For domestic installations, Kohler Mira Ltd. guarantee the Mira Activate against any defect in materials or workmanship for a period of five years from the date of purchase (shower fittings for one year). For non-domestic installations, Kohler Mira Ltd. guarantee the Mira Activate against any defect in materials or workmanship for a period of one year from the date of purchase. -
Page 11: Specifications
Specifications Standards and Approvals The Mira Activate complies with all relevant directives for CE marking. The Mira Activate is a type 1 electronic, independently mounted control for surface mounting. Mira Activate is a thermostatic water mixing valve. General Pollution Degree Rated Impulse Voltage 2.5 kV... - Page 12 Mira Digital Mixing Valve Pumped/Gravity (not suitable for mains pressure systems) Note: The pump in this product is not suitable for dry running. It is essential you follow the commissioning sequence detail in this guide. Pressures Thermostatic Standard TMV 2 - HP (BS EN 1111 Type 2)
-
Page 13: Suitable Plumbing Installations
Suitable Plumbing Installations Digital Mixing Valve (High Pressure/Combi) 1. Combination boiler systems - the digital high pressure/combi shower can be installed with an instantaneous combination boiler. 2. Unvented mains pressurised system - the digital high pressure/combi shower can be installed with an unvented, stored hot water cylinder system. 3. - Page 14 Digital Mixing Valve (Pumped/Gravity) 1. Gravity fed hot water systems Caution! Digital pumped/gravity valves must never be plumbed to mains pressure systems. This includes mixed gravity fed and mains pressure e.g. gravity hot and mains cold. Doing so will invalidate the warranty and potentially cause product and property damage.
-
Page 15: Showering Maximum Flow Rate
It is therefore possible this mixing valve will need to have its outlet flow rate altered to match the capability of the water system. This digital mixing valve has been factory pre-set to 16 l/min outlet flow rate but can be altered by use of the Mira Showers app. High flow rate demanded from low kW combination boilers will result in poor blend temperature stability and could result in your shower going cold. We strongly recommend you to alter the outlet flow rate as the table below. -
Page 16: Installation Schematic
Installation Schematic Max. Cable length 9.8m Max. Cable length 9.8m... -
Page 17: General Installation
General Installation All installations shall comply with the Water Supply (Water Fittings) Regulations 1999. Safe and easy access to the product should be available at all times. When installing the product in an area not regularly accessed, consideration for potential leaks must be taken into account. -
Page 18: Installation Digital Mixing Valve
• Fully commission the product after installation taking care to look for any leaks and correct operation. For pumped product, follow commissioning instructions. • The use of supply-line or zone strainers will reduce the need to remove debris at the digital mixing valve. - Page 19 Fit the 2 feet in desired location on digital mixing valve using the two Pozi 3.5 x 12mm Torx screws supplied. Note: There are 4 possible locations to install the feet, depending on your installation constraints. Mark the fixing holes in the required positions and secure using suitable fixings. Note: The valve must be installed on a flat surface.
- Page 20 Connect the hot and cold inlet supply pipework to the digital mixing valve. Note: The inlet pipework must be flexible enough to allow 25 mm movement to enable filters to be removed for cleaning and for maintenance of the internal components.
- Page 21 Install the power supply unit provided, connecting it to mains socket in accordance with the wiring regulations. Connect the power supply cable to the digital mixing valve. Caution! Before any electrical adjustment is attempted, the electricity supply must be turned off at the mains switch. Electrical installation may only be carried out by a competent person.
-
Page 22: Ceiling Fed Shower Fittings
Installation: Ceiling Fed Shower Fittings Fix at convenient height for all the family. Position the fittings so that water sprays down the centre of the bath, or away from the opening of a shower cubicle. Water should spray away from the user controller when the handshower is held on the slide bar. Locate a suitable entry point in the 45 mm ceiling for the riser rail, avoiding joists and services. - Page 23 Position the slide bar assembly against Mark the fixing holes for both brackets. the wall and move the top bracket to Remove the slide bar assembly and desired height and click in place. drill into the marked holes to suit the wall fixings. Insert the wall plugs. “Click”...
- Page 24 Connect user controller cable to digital mixing valve connection port 1 and route the cable to the user controller location. Connection Port 1 Controller Cable Top View Fit the shower hose to the end of the slide bar assembly. Route the hose through the retaining ring and fit to the handset.
-
Page 25: Rear Fed Shower Fittings
Installation: Rear Fed Shower Fittings Trim the pipework back to the required Disassemble the right angle connector depth from the finished wall surface. assembly and mark the locations of the Remove all burrs and sharp edges. screw fixings. 90° Drill the fixing holes and fit the wall plugs. Caution! Be aware of hidden pipes or cables. Assemble the retaining disc, collet, seal retainer and small o-ring on to the pipe. - Page 26 Twist the shroud and fix using the locking screw. Important! Flush the pipework before fitting the hose and handset. Fit all the components onto the slide bar and position the slide bar assembly against bathroom wall in desired position and mark the fixing holes for both brackets. Carefully remove the slide bar assembly and tighten the screw on the back of the slide bar support to secure in position.
- Page 27 Drill two holes to suit the wall Secure the slide bar supports using the fixings. Fit the wall plugs and locking screws at both ends of slide bar. the mounting brackets and Insert the caps into both ends of slide secure with the wall screws. bar.
-
Page 28: Deluge Overhead
Installation: Deluge Overhead Rear Fed Note: Trim the pipework back to the required depth from the finished wall surface. Remove all burrs and sharp edges. Minimum Distance to Ceiling 35 mm 15 mm copper pipe 29 - 48 mm Choose desired length of arm and cut neatly using a hack saw or a 22 mm pipe slice fitted with a stainless steel cutting blade. Remove all burrs and sharp edges. - Page 29 Disassemble the overhead mount assembly and mark the locations of the screw fixings. Drill the fixing holes and insert the wall plugs. Caution! Be aware of hidden pipes or cables. Assemble the retaining disc, collet, seal retainer and small o-ring on to the pipe. Slide over the bracket and secure with 4x screws supplied. Slide the shroud, nut and olive over cut end of the showering arm. Insert cut end of showering arm in to the bracket and tighten the nut.
- Page 30 Ceiling Fed Note: Trim the pipework back to the required depth from the ceiling surface. Remove all burrs and sharp edges. Noggin 29 - 48 mm 15 mm copper pipe Choose desired length of arm and cut neatly using a hack saw or a 22 mm pipe slice fitted with a stainless steel cutting blade. Remove all burrs and sharp edges.
- Page 31 Note: Alternative longer screws Pilot Hole (No. 8 countersink) might be Retaining required to ensure engagement Disc with noggins in ceiling. Do not Collet screw directly in to plasterboard. Seal Retainer O-ring Bracket Olive Back Nut Shroud Shower Arm Important! Flush the pipework before fitting the deluge overhead.
-
Page 32: User Controller
Installation: User Controller Position the installation template (supplied) at the position on the wall where you intend to install the user controller. Make sure that the installation template is levelled and on a flat surface, the controller must not cover any grout lines. Caution! The user controller cable is max. 9.8m in length. When positioning the user control ensure the cable can reach. - Page 33 Apply silicone sealant around screw holes before inserting the wall plugs. Fit the backplate to the wall in the orientation shown using the fixing screws (supplied). Tighten by hand, do not over tighten. Loosen the screw and remove the lid from the digital mixing valve using a pozi (PZ2) screwdriver.
- Page 34 Connect the user controller cable to digital mixing valve connection port 1 and route cable to the user controller location. Connection Port 1 Controller Cable Top View Connect the cable on the back of the Locate the top of the user controller in user controller to the cable that comes the backplate and press down on the from the valve.
-
Page 35: Commissioning & Starting The Shower
Commissioning & Starting the Shower WARNING! For the Pumped low pressure valve you must follow the separate valve commissioning sequence in the section below. Turn on the water supply and open water inlet supply isolators. Turn on the electrical supply to digital mixing valve. The digital mixing valve will power and perform a self check where the LED will indicate a RED light initially and will then change to BLUE light after a few seconds. - Page 36 Start the shower by pressing the outlet Adjust the temperature by rotating icon buttons. the bezel . ° ° Adjust the flow by pressing the flow icon and then rotating the bezel. °...
- Page 37 Commissioning (Applies to Pumped Valve only) WARNING: Silent pump cannot be dry run for extended period. Ensure all items on the below checklist have been ticked off prior to commissioning. This is a gravity system product, do not install on a mains pressure system. Ensure product is installed in a recommended orientation. Ensure pipework is completely free of airlocks & dead legs. Ensure pipework is flushed & isolators are turned on.
- Page 38 Turn on the electrical supply to digital mixing valve. The digital mixing valve will power and perform a self check where the LED will indicate a RED light initially and will then change to a BLUE/RED flashing light after a few seconds. Note: If the LED does not turn to a BLUE/RED flashing light after 10 seconds, indicating the product is ready to commission, refer to the troubleshooting or fault diagnosis section.
- Page 39 P l e p i p e t r i n l t r y Recommissioning. If recommissioning is required at any point in the future, this can be completed using the Mira Showers app.
-
Page 40: User Controller: Features
User Controller: Features Accessing the presets and menu system Press the Mira button to access Rotate the bezel to select the desired the default shower presets. preset. r k o l e c Press the flow button to activate the selected preset. D o w n l o a d t h e c o m p a n i o n M i r a Showers app to adjust the default shower presets or create your own. - Page 41 Settings menu The settings menu is accessible via the preset menu. The menu can be navigated by using the rotary bezel for scrolling items, the droplet button for confirmation and the Mira button as cancel/back. l o w l o w r e s c t o l e c Setting Description Variables...
-
Page 42: Set Up: Mobile App
Operating Systems the Mira Showers app may NOT be compatible with your device. Your shower can be set up either by using the Controller or via the Mira Showers app. See “User Controller” section. - Page 43 Accessories Product Product Code Mira Activate Accessory Bezel Matt Black 2.1903.094 Mira Activate Accessory Bezel Brushed 2.1903.095 Nickel Mira Activate Accessory Bezel Titanium 2.1903.096 Mira Activate Ceiling Fittings Extension Kit 1.1903.097 Mira Activate Wireless Remote Accessory 2.1903.098 Replacing an Accessory Bezel Caution! Isolate the digital mixer electrical supply before removing bezel to inadvertently avoid turning the shower on during bezel replacement.
-
Page 44: Fault Diagnosis
To access these advanced diagnostics features, please download the Mira Showers app (see section “Set Up: Mobile App”). Please follow this self-diagnosis section to be sure the product is at fault before contacting Mira. Diagnosis stage 1 (Error code check): In the first instance, check your product has no error warning displayed on the controller. - Page 45 Refer to diagnosis section 4b. Flow has been detected when the product should be off. Try powering off the product for 30 seconds or resetting in the Mira Showers app. Refer to diagnosis section 4c. Unusually high flow has been detected. Try powering off the product for 30 seconds or resetting in the Mira Showers app. User Interface stuck button detected. Check that your user interface is free to move and then power off the product for 30 seconds or reset the product in the Mira Showers app.
- Page 46 3. Check the circuit breaker or RCD in your consumer unit has not tripped. 4. Check the fuse and replace if necessary (3 Amp). 5. Contact Mira Customer Service Team if none of the above restored power to the digital mixing valve.
- Page 47 Tip: Use the Mira Showers app to check the temperature of the hot water inlet when the shower is running. 2. Hot water storage tank fed products: Check the hot water supply is not being depleted in use. Reduce the outlet flow or reduce showering time and see if that...
-
Page 48: Cleaning & Maintenance
2. Check to see if you have a maximum showering duration set. This is designed to turn off the shower after a pre-determined duration. 3. Check to see if you are using pre-defined showering experiences. These may turn off the shower after a pre-determined duration. 4. The shower is designed to turn off after 30 minutes. 5. Use the Mira Showers app to check the error log. The shower is designed to turn off if the outlet temperature is too high. 6. Check inlet water temperature and pressures are within specification. The shower may turn off if these are out of specification. Tip: Use the Mira Showers app to check the temperature of the hot water inlet. - Page 49 Cleaning and Maintenance Cleaning Many household and commercial cleaners, including hand and surface cleaning wipes contain abrasives and chemical substances that can damage plastics, plating and printing and should not be used. These finishes should be cleaned with a mild washing up detergent or soap solution, and then wiped dry using a soft cloth. Important! Keeping the showerhead clean and free from limescale will ensure that your shower and showerhead continue to perform to their maximum.
- Page 50 Replace/Clean the Check Valves/Filters Read the section “Important Safety Information” first. Before replacing any parts, ensure that the underlying cause of the malfunction has been identified. If the digital mixing valve is dismantled during installation or servicing then upon completion the product must be inspected to ensure there are no leaks. WARNING! There are no user serviceable components beneath the cover of the appliance.
- Page 51 Frequency Bands and Maximum Radio Frequency Power Hereby, Kohler Mira Ltd. declares that the radio equipment type Mira Activate is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.mirashowers.co.uk The Mira Activate operates in the 2.4 GHz frequency band at a maximum radio frequency...
- Page 52 This product has been designed for domestic use only, it is not recommended for Commercial or Healthcare use. For Domestic installations, Kohler Mira guarantee this product against any defect in materials or workmanship for a period of five years from the date of purchase (shower fittings for one year). Within the guarantee period we will resolve defects in materials or workmanship, free of charge, by repairing or replacing parts or product as we may choose.
