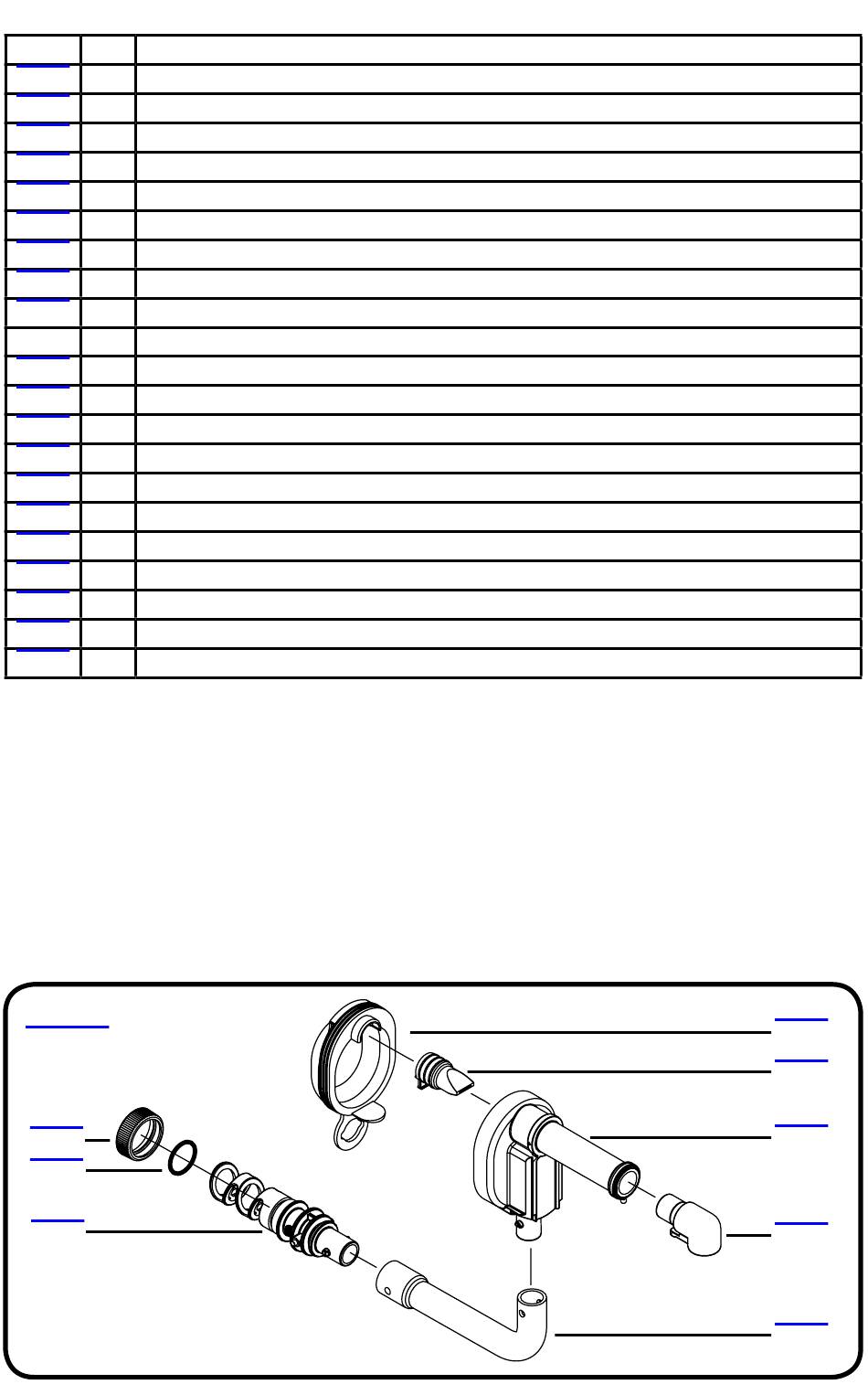

PARTS LIST
Part #
Qty.
Description
07014
1
LEVER
07056
1
ROLLER
07161
1
PIN, HINGE
07383
1
DOME, PUMP
07388
1
PUMP HOUSING ASSEMBLY
07823
1
LID
07813
1
SPRING, TORSION
07507
1
CONNECTOR, ANTI-CHOKE OFF
07814
1
PLATE, EVACUATION
07818
1
HOUSING, OUTER ASSEMBLY
07517
1
CAP, PLASTIC 38MM
07796
1
FITTING, DISCHARGE
07798
1
VALVE, PINCH
07811
1
SUPPORT, POUCH
07812
1
HOSE, RIGHT ANGLE
07821
1
PUMP ASSEMBLY
81058
4
FOOT W/SCREW
81105
1
PIN, COTTERLESS HINGE
BRUSH, 1
82049
1
85248
1
O-RING
86337
4
CAP, PROTECTIVE
EXTREME
TM
07821
07517
85248
07507
1 / 4
" D
PUMP
07383
07798
07388
07796
07812
