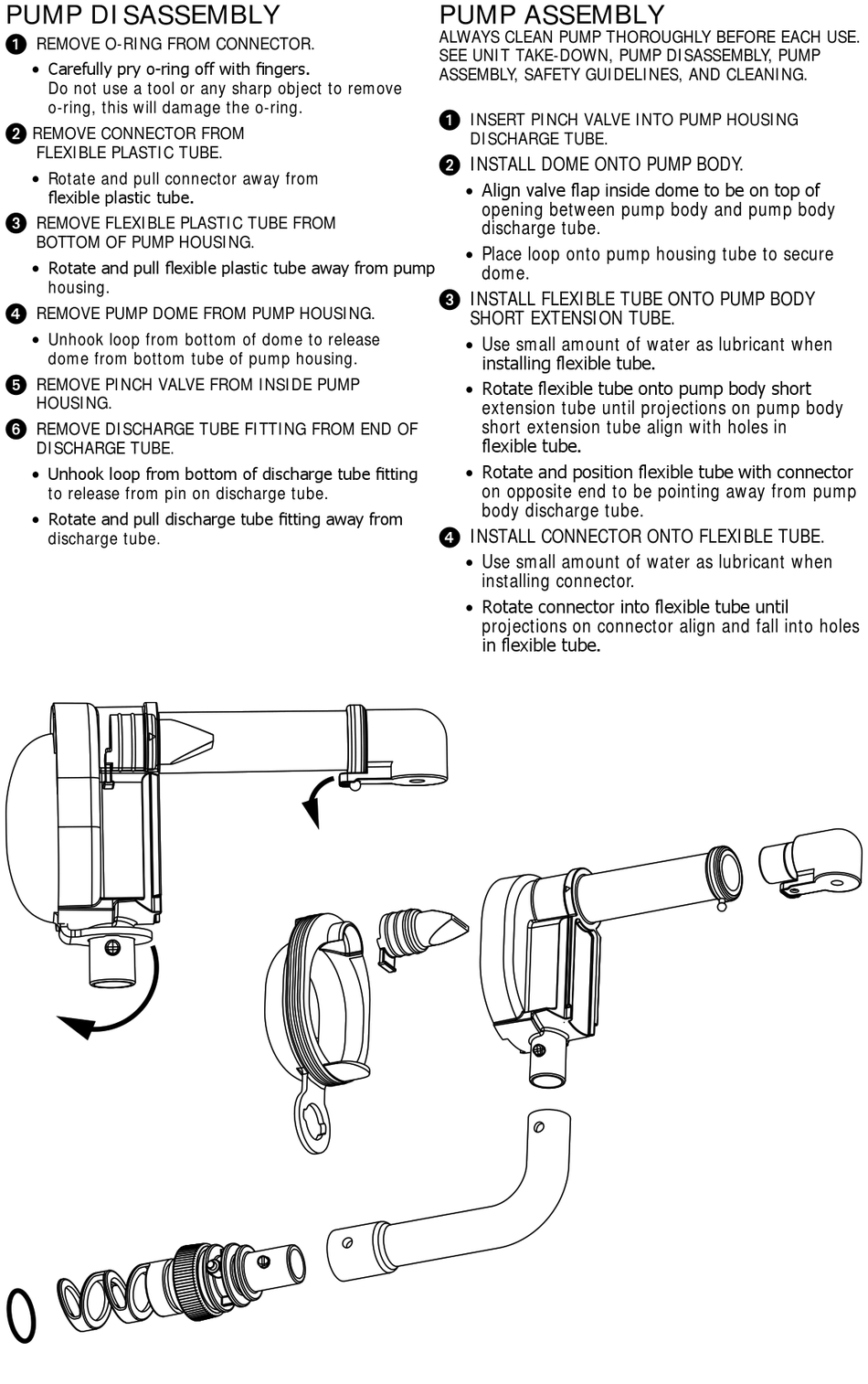

PUMP DISASSEMBLY

1 REMOVE O-RING FROM CONNECTOR.
• Carefully pry o-ring off with fingers.
Do not use a tool or any sharp object to remove
o-ring, this will damage the o-ring.
2 REMOVE CONNECTOR FROM
FLEXIBLE PLASTIC TUBE.
• Rotate and pull connector away from
flexible plastic tube.
3 REMOVE FLEXIBLE PLASTIC TUBE FROM
BOTTOM OF PUMP HOUSING.
• Rotate and pull flexible plastic tube away from pump
housing.
4 REMOVE PUMP DOME FROM PUMP HOUSING.
• Unhook loop from bottom of dome to release
dome from bottom tube of pump housing.
5 REMOVE PINCH VALVE FROM INSIDE PUMP
HOUSING.
6 REMOVE DISCHARGE TUBE FITTING FROM END OF
DISCHARGE TUBE.
• Unhook loop from bottom of discharge tube fitting
to release from pin on discharge tube.
• Rotate and pull discharge tube fitting away from
discharge tube.

PUMP ASSEMBLY

ALWAYS CLEAN PUMP THOROUGHLY BEFORE EACH USE.
SEE UNIT TAKE-DOWN, PUMP DISASSEMBLY, PUMP
ASSEMBLY, SAFETY GUIDELINES, AND CLEANING.
1 INSERT PINCH VALVE INTO PUMP HOUSING
DISCHARGE TUBE.
INSTALL DOME ONTO PUMP BODY.
2
Align valve flap inside dome to be on top of
•
opening between pump body and pump body
discharge tube.
Place loop onto pump housing tube to secure
•
dome.
INSTALL FLEXIBLE TUBE ONTO PUMP BODY
3
SHORT EXTENSION TUBE.
Use small amount of water as lubricant when
•
installing flexible tube.
Rotate flexible tube onto pump body short
•
extension tube until projections on pump body
short extension tube align with holes in
flexible tube.
Rotate and position flexible tube with connector
•
on opposite end to be pointing away from pump
body discharge tube.
INSTALL CONNECTOR ONTO FLEXIBLE TUBE.
4
Use small amount of water as lubricant when
•
installing connector.
Rotate connector into flexible tube until
•
projections on connector align and fall into holes
in flexible tube.
