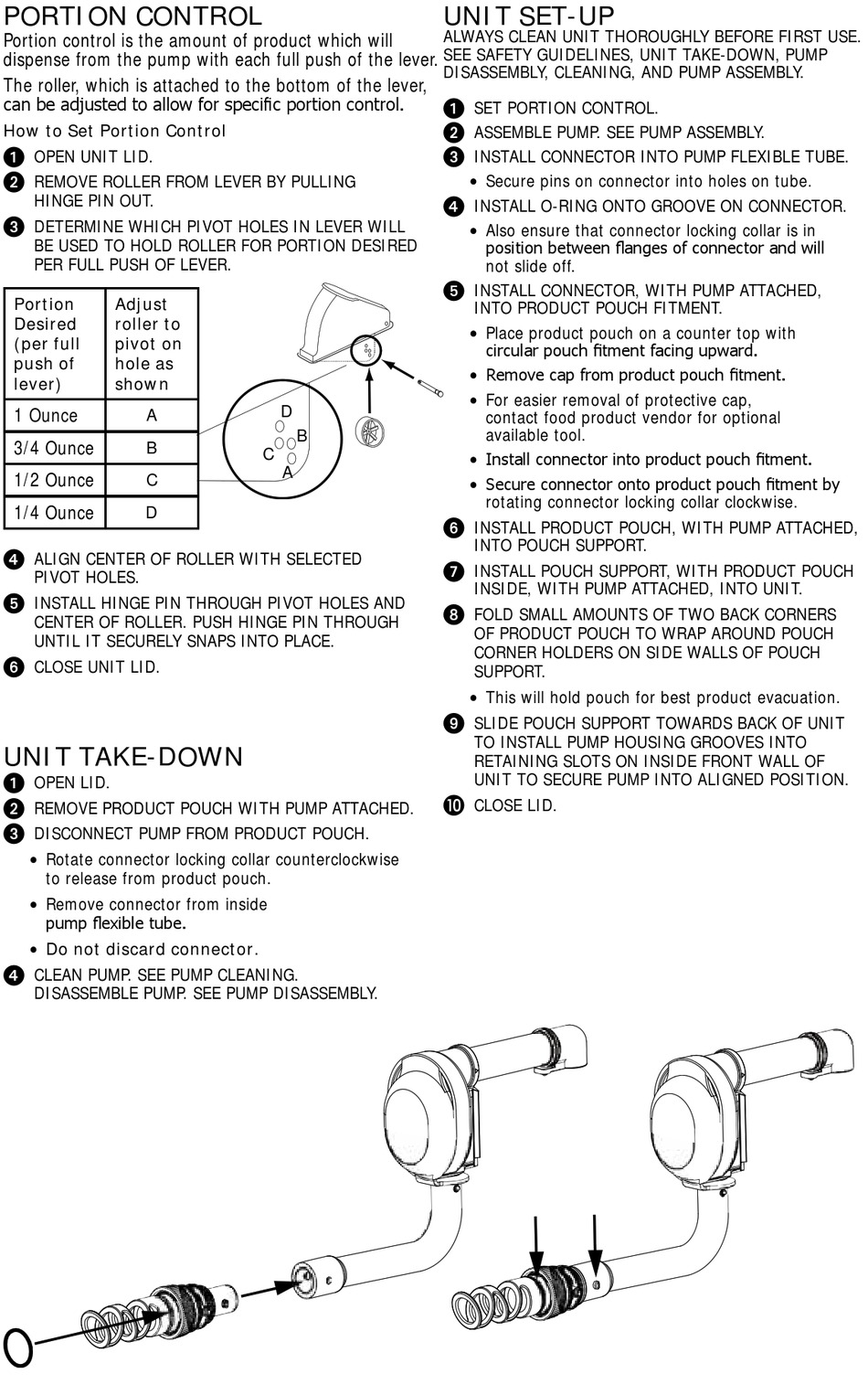

PORTION CONTROL

Portion control is the amount of product which will
dispense from the pump with each full push of the lever.
The roller, which is attached to the bottom of the lever,
can be adjusted to allow for specific portion control.
How to Set Portion Control
1 OPEN UNIT LID.
2 REMOVE ROLLER FROM LEVER BY PULLING
HINGE PIN OUT.
3
DETERMINE WHICH PIVOT HOLES IN LEVER WILL
BE USED TO HOLD ROLLER FOR PORTION DESIRED
PER FULL PUSH OF LEVER.
Portion Adjust
Desired roller to
(per full pivot on
push of hole as
lever) shown
1 Ounce A
B
3/4 Ounce
1/2 Ounce C
1/4 Ounce D
4 ALIGN CENTER OF ROLLER WITH SELECTED
PIVOT HOLES.
5
INSTALL HINGE PIN THROUGH PIVOT HOLES AND
CENTER OF ROLLER. PUSH HINGE PIN THROUGH
UNTIL IT SECURELY SNAPS INTO PLACE.
6 CLOSE UNIT LID.
UNIT TAKE-DOWN
1 OPEN LID.
2 REMOVE PRODUCT POUCH WITH PUMP ATTACHED.
3
DISCONNECT PUMP FROM PRODUCT POUCH.
• Rotate connector locking collar counterclockwise
to release from product pouch.
• Remove connector from inside
pump flexible tube.
• Do not discard connector.
4 CLEAN PUMP. SEE PUMP CLEANING.
DISASSEMBLE PUMP. SEE PUMP DISASSEMBLY.
D
B
C
A
UNIT SET-UP
ALWAYS CLEAN UNIT THOROUGHLY BEFORE FIRST USE.
SEE SAFETY GUIDELINES, UNIT TAKE-DOWN, PUMP
DISASSEMBLY, CLEANING, AND PUMP ASSEMBLY.
1 SET PORTION CONTROL.
2 ASSEMBLE PUMP. SEE PUMP ASSEMBLY.
3 INSTALL CONNECTOR INTO PUMP FLEXIBLE TUBE.
• Secure pins on connector into holes on tube.
4
INSTALL O-RING ONTO GROOVE ON CONNECTOR.
• Also ensure that connector locking collar is in
position between flanges of connector and will
not slide off.
5 INSTALL CONNECTOR, WITH PUMP ATTACHED,
INTO PRODUCT POUCH FITMENT.
• Place product pouch on a counter top with
circular pouch fitment facing upward.
• Remove cap from product pouch fitment.
• For easier removal of protective cap,
contact food product vendor for optional
available tool.
• Install connector into product pouch fitment.
• Secure connector onto product pouch fitment by
rotating connector locking collar clockwise.
6 INSTALL PRODUCT POUCH, WITH PUMP ATTACHED,
INTO POUCH SUPPORT.
7 INSTALL POUCH SUPPORT, WITH PRODUCT POUCH
INSIDE, WITH PUMP ATTACHED, INTO UNIT.
8 FOLD SMALL AMOUNTS OF TWO BACK CORNERS
OF PRODUCT POUCH TO WRAP AROUND POUCH
CORNER HOLDERS ON SIDE WALLS OF POUCH
SUPPORT.
• This will hold pouch for best product evacuation.
9
SLIDE POUCH SUPPORT TOWARDS BACK OF UNIT
TO INSTALL PUMP HOUSING GROOVES INTO
RETAINING SLOTS ON INSIDE FRONT WALL OF
UNIT TO SECURE PUMP INTO ALIGNED POSITION.
J CLOSE LID.
