7.1.9
Installing the Ultrasound Modulo
Equipment/Tools Required:
•
cable ties
•
7mm wrench
•
10mm wrench.
To Install the Ultrasound Modulo:
1.
Slide the modulo into the front opening with the transducer connectors facing front.
2.

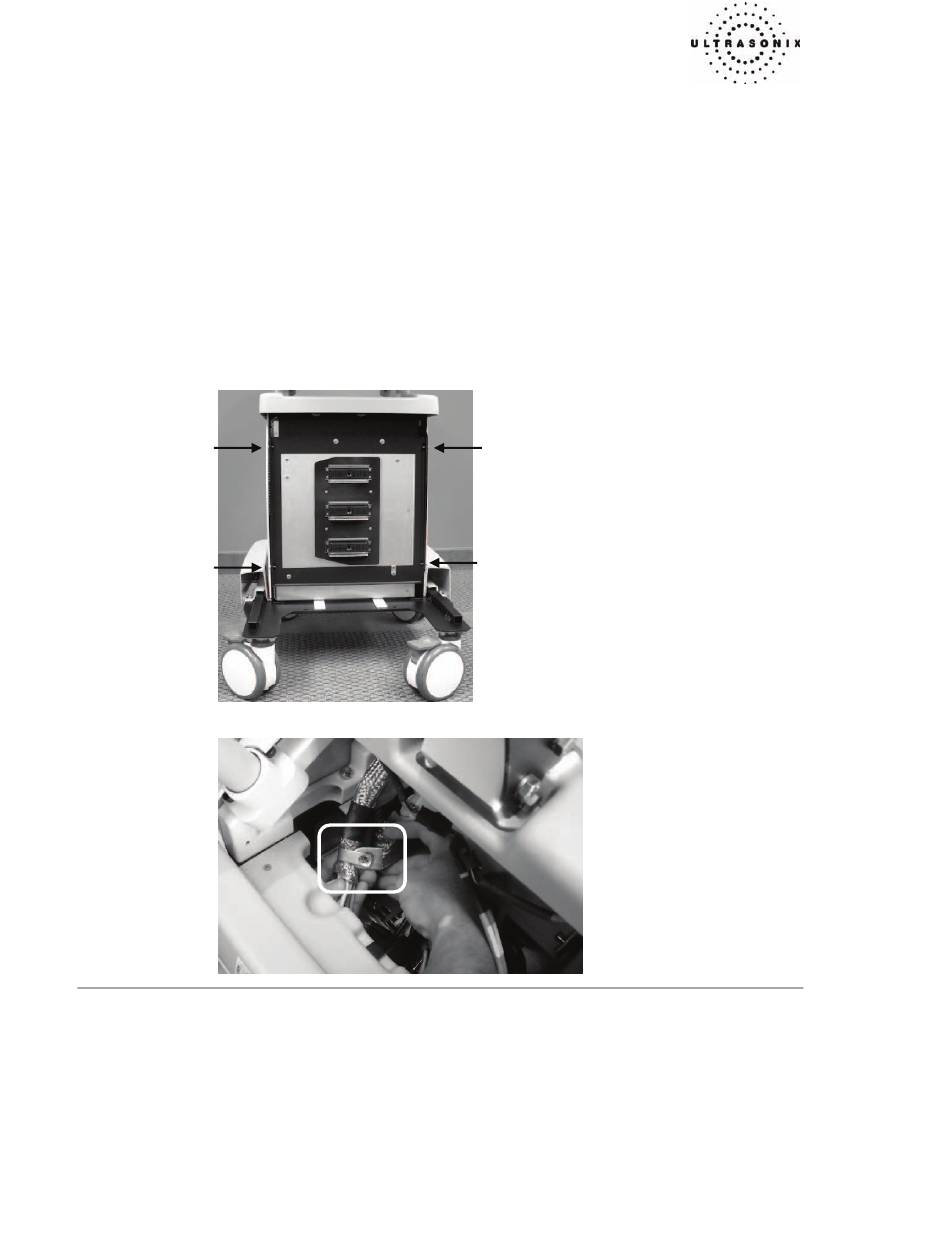

Push the modulo back and position the stiffener frame so that the four (4) bolt holes line up.
3.
Using the 7mm socket wrench, fasten the four (4) bolts/washers securing the stiffener
frame to the system frame.
4.
Reconnect the grounding strap connection.
SONIX MDP Service Manual 00.053.009, Revision A
Chapter 7: Field Service Components
79
