Summary of Contents for Ultrasonix SonixOne Q+

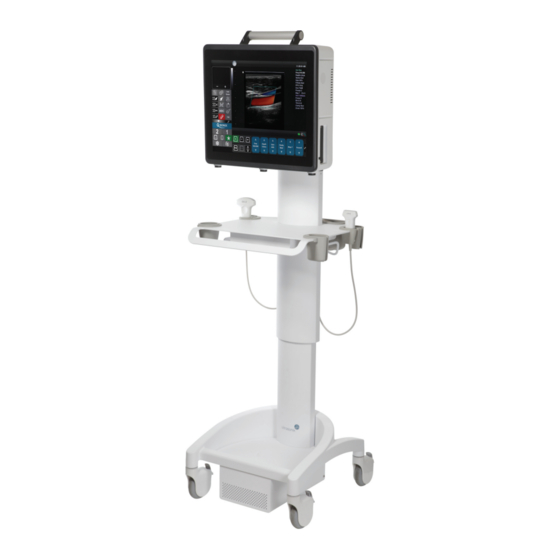

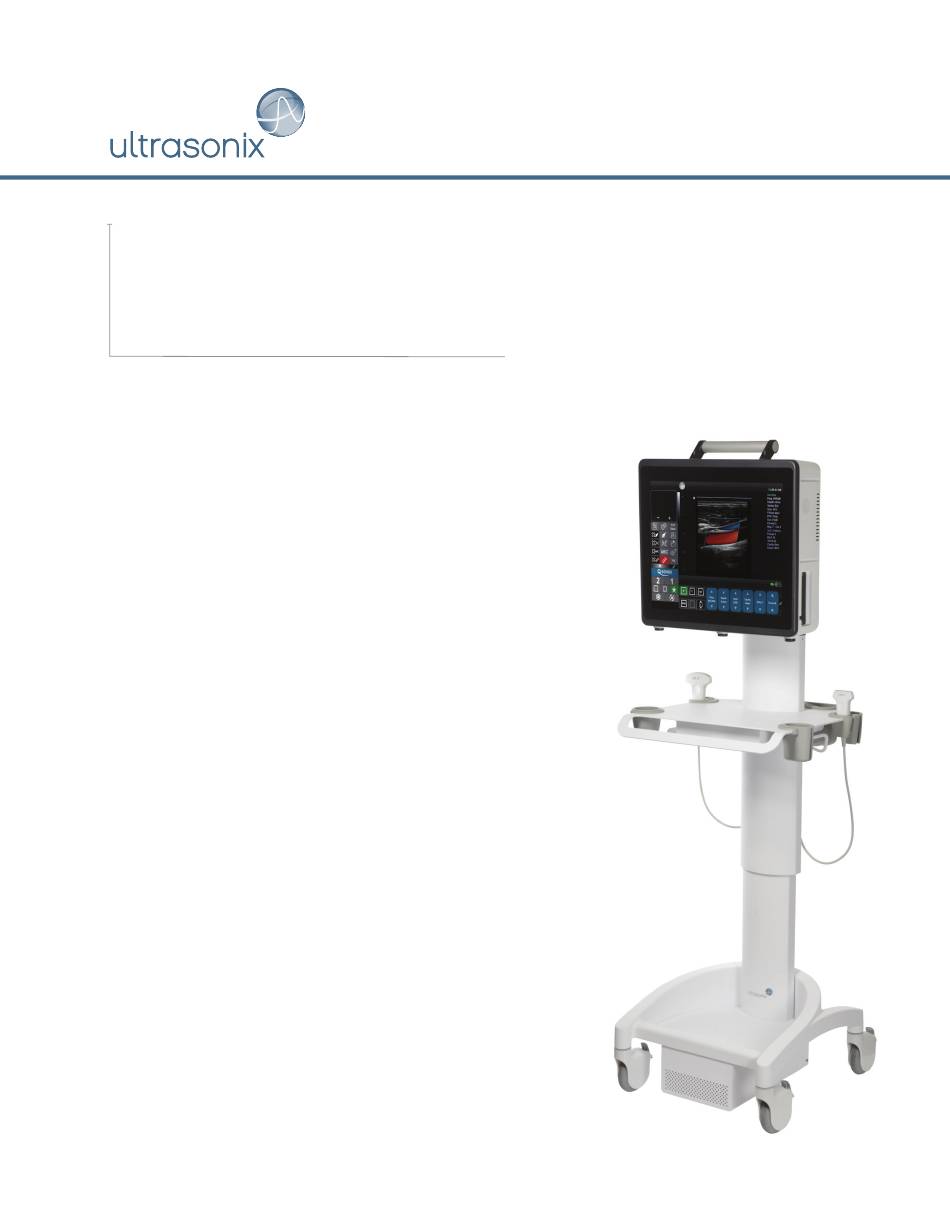

  • Page 1 Service Manual Analogic Ultrasound SonixOne Q+ Ultrasound System...
  • Page 3 Ultrasonix Medical Corporation SonixOne Ultrasound System Service Manual Ultrasonix Medical Corporation 130 – 4311 Viking Way Richmond, BC V6V 2K9 Canada www.analogicultrasound.com support@ultrasonix.com 1.866.437.9508 1.604.279.8550 1.778.296.3860 (Support) © 2014 Analogic Corporation 00.053.206, Revision A, June 27, 2014 All Rights Reserved.
  • Page 5: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1: GENERAL INFORMATION..............................1-1 AUDIENCE ........................................1-1 1.1.1 Prescription Device ....................................1-1 VOLTAGE DISCLAIMER ....................................1-1 CONNECTIVITY DISCLAIMER ..................................1-1 PATIENT PRIVACY....................................... 1-1 SERVICE DISCLAIMER ....................................1-1 SYSTEM HANDLING ....................................1-2 LICENSE AGREEMENT....................................1-2 TRADEMARKS AND PATENTS..................................1-2 SYSTEM OVERVIEW....................................
  • Page 6 Software Update via the Internet ................................5-1 5.1.2 Software Update via a Downloaded File..............................5-2 PATIENT DATABASE REPAIR ..................................5-3 SYSTEM RECOVERY....................................5-3 CHAPTER 6: PERIPHERALS AND ACCESSORIES ............................ 6-1 PERIPHERAL COMPONENTS ..................................6-1 ULTRASONIX-APPROVED DEVICES ................................6-1 PRINTER SETUP......................................6-1 6.3.1 Local Printer Setup ....................................6-1 6.3.2 Network Printer Setup....................................6-1 6.3.3 Configuring Custom Keys ..................................6-3...
  • Page 7 DICOM CONFIGURATION..................................8-14 8.2.1 Gathering Relevant DICOM Information ............................... 8-14 8.2.1.1 Local Network....................................8-14 8.2.1.2 DICOM SCU ....................................8-14 8.2.1.3 DICOM SCP ....................................8-14 8.2.2 Configuring the Network ..................................8-15 8.2.3 Configuring DICOM....................................8-15 8.2.3.1 Local Host ....................................... 8-15 8.2.3.2 DICOM Storage Settings .................................
  • Page 8 Table of Contents 00.053.206, Revision A SonixOne Service Manual...
  • Page 9: Chapter 1: General Information

    Personal Information Protection and Electronic Documents Act (PIPEDA–Canada)). In order to ensure regulatory compliance, Ultrasonix will not remove the system hard drive – and the patient data it contains – from the customer site. In the event the hard drive must be removed from the system, it will be returned to the customer. Final disposition of the hard drive and its data will remain the customer's responsibility.
  • Page 10: System Handling

    Ultrasonix, or its suppliers, retain(s) ownership of and title to any computer program supplied with the Equipment and to the trade secrets embodied in such computer programs. Subject to the Buyer’s acceptance and fulfillment of the obligations in...
  • Page 11: System Overview

    SYSTEM OVERVIEW The SonixOne Ultrasound System is a software driven, ergonomic, diagnostic medical device. It uses state of the art technologies to acquire, process and display ultrasound data (Figure 1-1). The system has several major field serviceable components including: LCD display with built-in speakers and a multi- position, articulated lift system, operator console, modulo, transducers and UPS.
  • Page 12 Table 1-1: System Components Carry handle LCD display/touch screen Speakers Side Connectivity Panel (power and network connections, USB and sound ports). Refer to 7.1.7 for connectivity details. Power button Table Transducer holders Front pull/push handle Warning: If the system is not mounted on the cart, take extra care to stand clear when changing cart height position. Without the weight of the system to slow it down, the cart can spring upwards very quickly.
  • Page 13: Physical Description

    The modulo, which is the heart of the system, is enclosed in the system case with the LCD display/touch screen. 1.10.4 Transducers Ultrasonix offers a wide selection of high performance transducers for a variety of imaging applications. Incorporating the latest acoustic materials and technology, these lightweight transducers are ergonomic and durable for maximum clinical use.
  • Page 14 Chapter 1: General Information 00.053.206, Revision A SonixOne Service Manual...
  • Page 15: Chapter 2: System Specifications

    CHAPTER 2: SYSTEM SPECIFICATIONS DIMENSIONS Table 2-1: System Dimensions Measurement Metric Value US Value Width 45 cm 17.7 in Depth 17.5 cm 6.9 in Height 42.5 cm 16.7 in Weight 15 kg 33 lbs Power Pack Size (W x L X H) 10.4 cm x 40 cm x 5.8 cm 4.1 in x 15.75 in x 2.3 in Power Pack Weight...
  • Page 16 Chapter 2: System Specifications 00.053.206, Revision A SonixOne Service Manual...
  • Page 17: Chapter 3: System Installation

    Warning: Operate in an indoor environment only, free from moisture, flammable liquids, gases, corrosive substances, strong electrical or magnetic fields and equipment that generates high frequency waves. Ultrasonix cannot guarantee the proper performance of the system if used in the above-listed conditions. Table 3-2: Barcode Reader Operating Temperature 32º...
  • Page 18: Electrical Requirements

    3.1.2 Electrical Requirements Verify the system is to be operated in a room that meets the electrical requirements listed below. Table 3-4: Electrical Specifications Electrical Rating Value 100V—120V @ 50/60 Hz Measurement (System Only) 200V—240V @ 50/60 Hz 120 VAC @ 7.0A Current Draw (System Only) 240 VAC @ 4.0A Power Draw (System Only @ peak)
  • Page 19: Electrostatic Discharge

    3.1.3 Electrostatic Discharge During normal operation, the presence of electrostatic discharge (ESD) can cause system reliability issues. The following are the most common causes for ESD: • moving people • low humidity • improper grounding • unshielded cable • poor connection •...
  • Page 20: Wiring Requirements

    Caution: System networking options are intended for use inside your organization's firewall. Organizations that elect to configure/use the networking functionality provided by Ultrasonix are assuming all liabilities and risks associated with that decision. 3.1.5.3 Image Management Network Obtain the following information from the system administrator: •...
  • Page 21: Pre-Installation

    Examine the "Tip’n Tell" attachment on the outside of the package to ensure the crate has not been tipped too far during transport and delivery (refer to Figure 3-1 for details). Report any damage to both the carrier and Ultrasonix. 3.2.2 Unpacking Instructions Equipment/Tools/Personnel Required: •...
  • Page 22: Unpacking A System

    3.2.2.1 Unpacking a System To Unpack a System: Note: If transducers are ordered at the same time as the system, they will be delivered in a separate carton(s). Ensure the top of the system box is facing in the correct direction. Use the letter opener to break the tape sealing the top of the carton.
  • Page 23 Remove the cardboard spacer. Lift the Power Pack from the box and remove it from the plastic bag. Remove the bubble wrap above the power cord. Remove the Power cord and Stylus (packed under the bubble wrap). Remove the transducer holder packing boxes. SonixOne Service Manual 00.053.206, Revision A Chapter 3: System Installation...
  • Page 24 Use the letter opener to break the tape sealing the box. Lift out the transducer holder and remove it from the plastic bag. Note: For stand-alone systems, the transducer holder can be attached to a flat surface close to the system, e.g., a table.
  • Page 25: Unpacking Transducers

    Gently pull the foam packing away from the sides of the SonixOne. Caution: Be sure to let place the system gently on the table top as the foam packing is removed. Remove the system from the plastic bag. Set the system upright on a table surface. Warning: When using a free-standing system, do not place the device on any surface that blocks/restricts ventilation (e.g., do not set the device on a soft surface such as a bed).
  • Page 26: Installation

    INSTALLATION 3.3.1 Cart-Mounting–When Cart Ordered with System Equipment/Tools Required: • 4 thumbscrews (shipped attached to mounting plates) (UXID: 00.031.353) • 2 people (recommended). To Cart-Mount the System: Unpack the system and cart (3.2.2). Adjust the cart to its lowest position (3.3.2.3). Ensure all four wheels are locked.
  • Page 27: Mechanical Inspection

    3.3.2 Mechanical Inspection Note: Mechanical inspection of the SonixOne Q+ is only necessary if the system is cart-mounted. 3.3.2.1 Wheels Note: Ensure the caster brakes are in the OFF position before continuing. Move the system around to ensure the casters rotate properly. Put the caster locks ON and ensure that the system cannot move when the brakes are set.
  • Page 28: Cart Height

    Release the handle when the adjustment is complete. Caution: Do not push on the LCD display/touch screen to adjust the system height as this may result in damage which is not covered by the Ultrasonix warranty. Chapter 3: System Installation 00.053.206, Revision A...
  • Page 29: Emi Filter And Power Pack

    3.3.3 EMI Filter and Power Pack The system is delivered with a voltage rating label over the power switch and EMI filter. The precise wording on the label is determined by the voltage setting on the EMI filter. Double check that the voltage rating on the label matches the voltage configuration on the EMI filter, then remove the label.
  • Page 30 Table 3-8: System Power Pack Main Power Switch System Power Connection Cord Power Cord (to Wall Outlet) Receptacle Figure 3-5: Battery Module Table 3-9: Battery Module Main power switch Receptacle for the detachable system power cord Fixed system power cord USB cable (connects to the SonixOne Q+ Side Connectivity Panel).
  • Page 31 To Change Voltage Settings: Power off and unplug the power cord from both the wall outlet and the system. Use the screwdriver to open the fuse box lid. Position the screwdriver at the top (as in step 2), using it to remove the fuse box. Flip the fuse box and reinsert it so the correct voltage is visible.
  • Page 32: Powering The System

    3.3.4 Powering the System Before turning on the system, connect the power cords. 3.3.4.1 Powering the System with a Power Pack To Connect the Power Cords: Connect the power cord from the power pack to the system. Note: Push the connector on firmly, ensuring the dot on the power connector is lined up with the on the power connector.
  • Page 33: Changing Fuses

    3.3.4.3 Changing Fuses Equipment/Tools Required: • two 3AG Slo-Blo, 7A/250V fuses • fine tipped, narrow shafted, flat head screwdriver (e.g, ⅛" (3mm) jewelers screwdriver). Warning: Do not perform any internal system maintenance if the UPS breakers are turned on. To Change the Fuses: Power off and unplug the power cord from both the wall outlet and the system.
  • Page 34: Battery Module (If Applicable)

    Should the battery require maintenance or replacement, only qualified Ultrasonix Service Technicians may perform service as detailed in the Service Manual.
  • Page 35: Handling Charger Faults

    Handling Charger Faults If the Charger Fault LED is lit (red) and the system displays the following message onscreen, reboot the battery (3.3.8.2). If, after rebooting, the Charger Fault LED is still lit, contact Ultrasonix Technical Support. Figure 3-9: Charger Fault Message SonixOne Service Manual 00.053.206, Revision A...
  • Page 36: Battery Shutdown Mode

    Unpack each transducer and inspect for damage (e.g., cracks in the case or bent pins). Note the model and serial numbers of any damaged transducers and report them to Ultrasonix. Ensure that all transducers can be connected to each connection port.
  • Page 37: System Initialization

    3.3.10 System Initialization To Initialize the System: Inspect the system for scratches or damage. Note any damage to the system and report it to Ultrasonix. Connect at least one transducer to the system. Note: Most transducers can be inserted in either of the two transducer connection ports. However, to ensure proper function insert the SA4-2/24 transducer into transducer connection port 2.
  • Page 38: Set System Date And Install Licenses

    SET SYSTEM DATE AND INSTALL LICENSES Follow the instructions on the Setup/License card included with the system. Note: The instructions on the Setup/License card must be completed in the proper order: • A: Setting System Date/Time Parameters • B: Enabling System Licenses. Chapter 3: System Installation 00.053.206, Revision A SonixOne Service Manual...
  • Page 39: Chapter 4: Performance Testing

    CHAPTER 4: PERFORMANCE TESTING This section describes the various tests performed on the system immediately following installation, updating and repair. The purpose of performance testing is to verify the correct operation of both hardware and software as well as mechanical items. During these tests, the system should be running in normal operating mode.
  • Page 40: Image Test

    IMAGE TEST To Conduct an Image Test: Connect each of the different transducers available and tap the touch screen button, then Note: Most transducers can be inserted in either of the two transducer connection ports. However, to ensure proper function, insert the SA4-2/24 transducer into transducer connection port 2. Verify that the image scanned has all elements present.
  • Page 41: Licenses

    LICENSES Check system licenses to ensure at least some licenses are Enabled. If no licenses are Enabled, repeat section 3.4 Set System Date and Install Licenses. To Check System Licensing: Tap the touch screen button. Select Administrator > Licensing. If none of the licenses are Enabled, repeat section 3.4 Set System Date and Install Licenses or reload license.key following the instructions in section...
  • Page 42 Chapter 4: Performance Testing 00.053.206, Revision A SonixOne Service Manual...
  • Page 43: Chapter 5: Software

    The system will default to the Update Location "Internet Update". Select Update. The system will automatically download, auto-install, and restart the software. Note: If an error occurs during installation, contact Ultrasonix Technical Support for further instructions. SonixOne Service Manual 00.053.206, Revision A...
  • Page 44: Software Update Via A Downloaded File

    If the system is not connected to the Internet, but a computer with Internet access is available, download the update from the Ultrasonix website, ensuring that it’s copied to the root of a USB device (memory stick, external hard drive, etc.).
  • Page 45: Patient Database Repair

    Select OK to exit. SYSTEM RECOVERY Before performing a system recovery, consult Ultrasonix Technical Support as this should only be done as a last resort. Technical Support will provide the appropriate documentation to carry out a system recovery. Caution: System Recovery may erase all data on the hard drive, including Patient/Exam data! SonixOne Service Manual 00.053.206, Revision A...
  • Page 46 Chapter 5: Software 00.053.206, Revision A SonixOne Service Manual...
  • Page 47: Chapter 6: Peripherals And Accessories

    IEC 60601–1. Any person who connects additional equipment to the signal input part or signal output part configures a medical system and is therefore responsible for ensuring that the system complies with the requirements of the system standard IEC 60601–1–1. If in doubt, consult Ultrasonix Technical Support.
  • Page 48 To Connect the Network Printer to the System: Note: Before proceeding, ensure that the network has a shared printer. Contact your System Administrator when unsure. Tap the touch screen button. Select Administrator > Peripherals. In the Paper Printer dialog, select (double tap) Add Printer. Select Next.
  • Page 49: Configuring Custom Keys

    6.3.3 Configuring Custom Keys 6.3.3.1 Paper Printing Configuration To Configure a Print Key for Paper Printing: Tap the touch screen button. Select Administrator > Custom Keys. Select the desired Custom Key tab. Select the Printer checkbox. Select OK. 6.3.3.2 Trigger Configuration To Configure the Custom Key Function for Trigger: Tap the touch screen button.
  • Page 50: Image Sheet Printing

    6.3.3.3 Image Sheet Printing To Configure Image Sheet Printing: Tap the touch screen button. Select Administrator > Peripherals. Select the Paper Printer tab. To select/deselect Image Sheet Printing (e.g., 2x3 image sheets), check/uncheck the Enable box. Enter the number of Columns and Rows desired in the text boxes provided. Note: The default is set to print as two columns by three rows (for a total of six images per sheet).
  • Page 51: Connecting The Usb Footswitch (Dual Or Triple)

    None, Print, Freeze, Quick Cine Record, Exam Management, Measurement, Exam Review, SonixDVR, Next Transducer and Transducer 1, 2, or 3. Figure 6-3: Peripherals – Footswitch Table 6-3: Footswitch Options Ensure an Ultrasonix-approved Footswitch has been connected, then select checkbox to Enable BNC Footswitches enable Footswitch operation. None...
  • Page 52: Barcode Reader

    UNDER NO CIRCUMSTANCES should users or technicians attempt to open or service the laser scanner. Attempting to open the barcode reader may cause exposure to hazardous laser light. Should the barcode reader require maintenance or replacement, contact Ultrasonix Technical Support. Caution: Do not apply ultrasound gel to the barcode reader.
  • Page 53: Accessories

    ACCESSORIES 6.6.1 Transducer Disclaimer Certain transducers may not be available in all markets. Consult your local Ultrasonix Authorized Distributor or Sales Representative to determine availability in your area. 6.6.2 Transducer Models The transducers in Table 6-4 may include models that are no longer offered for sale.
  • Page 54 Chapter 6: Peripherals and Accessories 00.053.206, Revision A SonixOne Service Manual...
  • Page 55: Chapter 7: Field Service Components

    This will ensure access to this data if either the modulo or hard drive needs replaced during servicing. The following options are available for export: Note: When creating a backup prior to servicing or replacing the modulo, Ultrasonix recommends selecting all options for Export.
  • Page 56 Select Administrator > System > Export…. Check the item(s) to be exported. Note: When creating a backup prior to servicing or replacing the modulo, Ultrasonix recommends selecting all options for Export. Ensure the backup media (Device Status) has been properly detected. If the External Storage Detected is (Q:|), the backup process will fail.
  • Page 57: Importing User Data (As Required)

    7.1.2 Importing User Data (As Required) Once the modulo has been installed, if required, import (restore) the previously-saved User Data from the removable disk to this system. Note: If the system boots properly with all User Data intact, then it will not be necessary to import this data. The following options are available for import: •...
  • Page 58 To Import User Data from a Backup: Caution: Ultrasonix does not recommend importing user-defined Presets created with a previous software version as they may not be compatible for use with a more recent software update. Ensure the system is plugged in and powered on.
  • Page 59: Exporting Patient/Exam Data (As Required)

    7.1.3 Exporting Patient/Exam Data (As Required) Exam Import/Export enables data to be copied to and from the system from within the system software, allowing the creation of Patient/Exam data backups. Note: When creating a backup prior to servicing the modulo, be sure to select all Patient/Exam data currently stored on the system.
  • Page 60: Importing Patient/Exam Data (As Required)

    7.1.4 Importing Patient/Exam Data (As Required) Exam Import/Export enables data to be copied to and from the system, allowing the reinstallation of Patient/ Exam data backups. Note: When reinstalling Patient/Exam data after servicing the modulo, be sure to select all Patient/Exam data for import to the system.
  • Page 61: Backing Up/Exporting Patient Data Via The Service Mode Option

    7.1.5 Backing up/Exporting Patient Data via the Service Mode Option This function allows Service Technicians to backup (and restore) Patient/Exam data. It does not, however, backup any of the User Data settings (7.1.1). Note: If Patient/Exam data is backed up using these instructions (7.1.5), it will not be necessary to use the Export option (7.1.3).
  • Page 62 Select Go. Note: The system will auto-detect the USB storage device. Select Backup. If the USB device already contains patient data, the following message will be displayed. Select OK to continue or Cancel to exit without creating a backup. Once the procedure is complete, the following message will be presented. Select OK to continue. Chapter 7: Field Service Components 00.053.206, Revision A SonixOne Service Manual...
  • Page 63: Restoring/Importing Patient Data Via The Service Mode Option

    7.1.6 Restoring/Importing Patient Data via the Service Mode Option In order to restore Patient/Exam data via Service Mode, it must first have been backed up using this option. Refer 7.1.5 for backup details. During the restoration process, the system will warn – in a multi-step process – about overwriting any patient data that already exists on the system hard drive.
  • Page 64 When the following warning message appears, select Yes to continue or No to exit without restoring Patient/ Exam data. When a PatientInfo folder already exists on the system, the following warning will be presented. Select Yes to continue or No to exit without restoring Patient/Exam data. When Patient/Exam data already exists on the system, a final warning will be presented.
  • Page 65: Connectivity

    Figure 7-5: Side Connectivity Panel Table 7-5: Side Connectivity Panel Icon Label Description Line-in (blue): may be used to connect an Ultrasonix-approved audio input device. Sound System Speaker connection (green). Connections System Microphone connection: Disabled. Use to connect Ultrasonix-approved USB devices (e.g., printer, barcode reader, USB (x2) memory stick, etc.).
  • Page 66: Battery Module Servicing

    7.2.1 Battery Firmware Upgrade From time to time, a battery firmware upgrade may be made available. Contact Ultrasonix Technical Support for details. BARCODE READER SERVICING The barcode reader is configured to system requirements prior to shipping with the system. If it becomes necessary to reconfigure it in the field, Ultrasonix Technical Support will provide a copy of the appropriate documentation.
  • Page 67: Transducer Testing

    Figure 7-6 for an example of an acceptable transducer image. If there is any doubt about the image, contact Ultrasonix Technical Support and forward them a digital copy of the image in question for verification of the diagnosis. SonixOne Service Manual 00.053.206, Revision A...
  • Page 68: Testing The Transducer Board

    Figure 7-6 for an example of an acceptable transducer image. If there is any doubt about the image, contact Ultrasonix Technical Support and forward them a digital copy of the image in question for verification of the diagnosis. Figure 7-6: Acceptable Transducer Test Image...
  • Page 69: Miscellaneous Parts

    The transducer holder with integrated cable hook mounts to a table edge with a simple screw clamp. No tools are required. Note: For best results, Ultrasonix recommends removing the transducer holders before cleaning (11.2.8). This will allow the operator to clean all the various curves and folds in a more effective manner.
  • Page 70: Returning Parts For Service/Repair/Replacement

    Once any part is determined to be defective, the Return Merchandise Authorization (RMA) process must be initiated. Note: For specific details on the transducers, refer to 7.6.1. Contact Ultrasonix Technical Support for: • the RMA number Note: The RMA number must always be clearly written on the outside of the packaging.
  • Page 71: Chapter 8: Dicom

    CHAPTER 8: DICOM The system uses the Digital Imaging and Communications in Medicine (DICOM) standard to share medical information with other digital imaging systems. The system, by means of the DICOM protocol, communicates with Storage, Print and Modality Worklist Service Class Providers. DICOM setup/configuration is an Administrator Settings option. Refer to the following for configuration details: •...
  • Page 72: Dicom Configuration Options

    DICOM CONFIGURATION OPTIONS 8.1.1 Global Settings In order to facilitate DICOM configuration, certain settings are controlled globally. Figure 8-2: DICOM Global Settings Table 8-1: DICOM Configuration – Global Settings Station Name General DICOM Station Name. AE Title AE (Application Entity) Title of the Sonix system. IP Address Unique identifier of the Sonix system (informational only).
  • Page 73: Dicom Storage Settings - Ae Configuration

    8.1.2.1 DICOM Storage Settings – AE Configuration The DICOM Storage AE Configuration dialog enables configuration of AE devices. Figure 8-3: DICOM Storage Settings – AE Configuration Note: In addition to the four tabbed settings options, select the Settings... button to access Storage Settings (8.1.2.2).
  • Page 74: Dicom Storage Settings - Ae Configuration Storage Settings

    8.1.2.2 DICOM Storage Settings – AE Configuration Storage Settings The DICOM Storage (AE Configuration) Storage Settings dialog specifies how images are stored. To Access AE Configuration-Specific Storage Settings: Tap the touch screen button. Select Administrator > DICOM > Storage… > AE Configuration > Settings…. Figure 8-4: DICOM Storage Settings –...
  • Page 75: Dicom Storage Settings - Global Storage Settings

    8.1.2.3 DICOM Storage Settings – Global Storage Settings The DICOM Global Storage Settings dialog specifies global image storage parameters. Figure 8-5: DICOM Storage Settings – Global Storage Settings Table 8-4: DICOM Storage Settings – Global Storage Settings Select an auto-transfer setting: End of Exam, Immediate, On Idle. Note: This applies only if: Schedule •...
  • Page 76: Dicom Storage Settings - Brightness/Contrast

    8.1.2.4 DICOM Storage Settings – Brightness/Contrast The DICOM Storage Brightness/Contrast dialog changes the Brightness and Contrast settings. These settings are applied to the images that are sent to the SCP, not the images stored locally. The effects of these settings can be seen in the Before and After images. Figure 8-6: DICOM Storage Settings –...
  • Page 77: Dicom Storage Settings - Sonixhub Settings

    8.1.2.5 DICOM Storage Settings – SonixHub Settings The DICOM Sonix Hub Settings dialog specifies Sonix Hub parameters. Note: These settings are only available if Hub is licensed. Sonix Figure 8-7: DICOM Storage Settings – SonixHub Settings Table 8-6: DICOM Storage Settings – SonixHub Settings Select to send Cine files in AVI format.
  • Page 78: Dicom Print Settings

    8.1.3 DICOM Print Settings DICOM Print Settings offer basic and advanced settings for configuring the system for DICOM Print. To Access DICOM Print Settings: Tap the touch screen button. Select Administrator > DICOM > Print. 8.1.3.1 DICOM Print Settings – AE Configuration The DICOM Print AE Configuration dialog enables configuration of AE properties.
  • Page 79: Dicom Print Settings - Ae Configuration Print Settings

    8.1.3.2 DICOM Print Settings – AE Configuration Print Settings The DICOM Print (AE Configuration) Print Settings dialog enables configuration of general print properties. To Access AE Configuration-Specific Print Settings: Tap the touch screen button. Select Administrator > DICOM > Print… > AE Configuration > Settings… > Print Settings. Figure 8-9: DICOM Print Settings –...
  • Page 80: Dicom Print Settings - Ae Configuration Advanced Print Settings

    8.1.3.3 DICOM Print Settings – AE Configuration Advanced Print Settings The DICOM Print (AE Configuration) Advanced Print Settings dialog enables configuration of advanced printing options. To Access AE Configuration-Specific Advanced Print Settings: Tap the touch screen button. Select Administrator > DICOM > Print… > AE Configuration > Settings… > Advanced Print Settings. Figure 8-10: DICOM Print Settings –...
  • Page 81: Dicom Print Settings - Brightness/Contrast

    8.1.3.4 DICOM Print Settings – Brightness/Contrast The DICOM Print Brightness/Contrast dialog changes the Brightness and Contrast settings. These settings are applied to the images that are sent to the SCP, not to the images stored locally. The effect of these settings can be seen in the Before and After images. Figure 8-11: DICOM Print Settings –...
  • Page 82: Dicom Worklist Settings

    8.1.4 DICOM Worklist Settings DICOM Worklist Settings offer advanced settings for configuring the DICOM Worklist Service Class User (SCU). Note: All Modality Performed Procedure Steps (MPPS) functionality is invisible to the user, except when testing a DICOM Worklist Device. MPPS will be accepted or rejected based on the DICOM Server’s settings. Figure 8-12: DICOM Worklist Device Test Results To Access DICOM Worklist Settings: Tap the touch screen...
  • Page 83: Dicom Worklist Settings - Ae Configuration

    8.1.4.1 DICOM Worklist Settings – AE Configuration The DICOM Worklist AE Configuration dialog enables configuration of AE properties. Figure 8-13: DICOM Worklist Settings – AE Configuration Table 8-11: DICOM Worklist Settings – AE Configuration Use the Devices option to add as many DICOM Worklist Servers as required. Enter/select the Name of an AE Worklist Device and populate the three AE fields: AE Title, IP Name Address and Port.
  • Page 84: Dicom Configuration

    Note: Because network speed is tied to available signal strength, when using a wireless network connection Ultrasonix recommends a minimum of 50% signal strength. It is not possible to proceed if signal strength=0%. When this occurs, it may be necessary to move the system to a different location in order to access the wireless network.
  • Page 85: Configuring The Network

    8.2.2 Configuring the Network If the DHCP is enabled, the network is DICOM-ready. If the DHCP is not enabled, configure the network with the details supplied in 8.2.1.2, 8.2.1.3, and 8.2.3.1 Note: Using the information gathered in 8.2.1, the IT department is responsible for ensuring the network is configured correctly.
  • Page 86: Dicom Storage Settings

    8.2.3.2 DICOM Storage Settings To Configure DICOM Storage Settings: Tap the touch screen button. Select Administrator > DICOM > Storage…. Using the data collected in 8.2.1 complete the following Application Entity (AE) (1) fields: (SCP) AE Title, IP Address and Port. Enter a Name under Devices and select Add.
  • Page 87 Select the Enable checkbox (3a) to enable Storage Commitment. Populate the Storage Commitment fields with data collected for 8.2.1 (3b): AE Title, AE Address and Port. Note: Storage Commitment fields (3) are usually disabled as they can negatively affect system performance. Select OK to accept the changes or Cancel to exit without saving.
  • Page 88 To Configure AE Configuration-Specific Storage Settings: Tap the touch screen button. Select Administrator > DICOM > Storage… > AE Configuration > Settings…. Using the Compression Preference selector buttons, modify the preferred order of the Single-Frame (1) and Multi-Frame (2) compression methods. Select a Lossy Compression Quality setting (3).
  • Page 89 To Configure Storage Brightness and Contrast Settings: Tap the touch screen button. Select Administrator > DICOM > Storage… > Brightness and Contrast. Select the appropriate Brightness and Contrast levels. Select OK to accept the changes or Cancel to exit without saving. To Delete DICOM Storage Devices: Tap the touch screen button.
  • Page 90 8.2.3.3 Custom Keys and DICOM Store To Configure Custom Keys for DICOM Store: Tap the touch screen button. Select Administrator > Custom Keys. Configure the appropriate Custom Key to DICOM Store (e.g., Custom Key 1 or Custom Key 2). Select OK to accept the changes or Cancel to exit without saving. Chapter 8: DICOM 00.053.206, Revision A SonixOne Service Manual...
  • Page 91: Dicom Print Settings

    8.2.3.4 DICOM Print Settings To Configure DICOM Print Settings: Tap the touch screen button. Select Administrator > DICOM > Print…. Using the DICOM Print data collected in 8.2.1 complete the following Application Entity (AE) fields: (SCP) AE Title, IP Address and Port. Enter a Name under Devices and select Add.
  • Page 92 To Configure Print Brightness and Contrast Settings: Tap the touch screen button. Select Administrator > DICOM > Print… > Brightness and Contrast. Select the appropriate Brightness and Contrast levels. Select OK to accept the changes or Cancel to exit without saving. To Configure AE Configuration-Specific Print Settings: Tap the touch screen button.
  • Page 93 To Configure AE Configuration-Specific Advanced Print Settings: Tap the touch screen button. Select Administrator > DICOM > Print… > AE Configuration > Settings… > Advanced Print Settings. Complete Advanced Print Settings as required. Note: Refer to 8.1.3.3 for details on these options. Select OK to accept the changes or Cancel to exit without saving.
  • Page 94: Dicom Worklist Settings

    8.2.3.5 DICOM Worklist Settings To Configure DICOM Worklist Settings: Tap the touch screen button. Select Administrator > DICOM > Worklist…. Using the DICOM Print data collected in 8.2.1 complete the following Application Entity (AE) fields: (SCP) AE Title, IP Address and Port. Enter a Name under Devices and select Add.
  • Page 95: Chapter 9: Network Configuration

    The system can be configured to connect to the local network, either through a hard-wired LAN or Dialup connection. Note: A dialup connection requires a third-party, USB modem. Contact your dealer or Ultrasonix Technical Support to learn more about this option.
  • Page 96 Note: When using SonixLive, this Local IP Address can be accessed temporarily by selecting the SonixLive icon on the LCD display. Note: Ultrasonix recommends that Network connections be configured using the settings provided by your IT Department. Chapter 9: Network Configuration 00.053.206, Revision A...
  • Page 97: Ethernet (Lan) Network Configuration

    9.1.1 Ethernet (LAN) Network Configuration Figure 9-2: Network Configuration (Hard-Wired) To Configure an Ethernet (LAN) Connection (If Available): Connect an RJ45 cable to the LAN port located on the Side Connectivity Panel. Tap the touch screen button. Select Administrator > Network > Internet Connection using LAN. Select TCP/IP Settings….
  • Page 98: Dialup Network Configuration (If Available)

    9.1.2 Dialup Network Configuration (If Available) Note: A dialup connection requires a third-party, USB modem. Contact your dealer or Ultrasonix Technical Support to learn more about this option. Figure 9-3: Network Configuration Page (Dialup) Note: While the system is dialing out, the current dialing status to the ISP will be displayed.
  • Page 99: Wireless Configuration

    Wireless Signal Strength Indicator Notes: Wireless Network Connection options are controlled by MS Windows, not Ultrasonix. Once a secured, wireless network is in place, it will be necessary to obtain the institution's Network Key (from the IT department) in order to log in.
  • Page 100 To Configure a Wireless Connection (If Available) Notes: When more than one wireless network is available, consult the IT department to determine which one is relevant for system operations. Tap the touch screen button. Select Administrator > Network > Wireless Settings…. Complete the wireless connection following the onscreen directions in the Wireless Network Connection dialog.
  • Page 101: Chat Support

    CHAT SUPPORT Chat Support enables a real-time discussion with a member of the Ultrasonix Technical Support team. In order to use Chat Support, it must first be enabled (9.2.1). Note: If Chat Support is not available, contact the IT Department and have them check to ensure the network connection is active and that Chat Support has been enabled (9.2.1).
  • Page 102: Remote Support

    REMOTE SUPPORT Remote Support is a licensed option that allows Ultrasonix Technical Support to remotely view and control a system for diagnostic purposes. In order to use Remote Support, the Network must be configured (9.1 Network) and a PIN (Personal Identification Number) must be obtained from Ultrasonix Technical Support.
  • Page 103: Chapter 10: License.key Importation

    Insert the USB media into one of the available USB ports. Select Administrator > Licensing. Make note of the System Identification Number shown in the Licensing window and forward it to Ultrasonix Technical Support to obtain a license.key file. When the license.key file arrives, copy it to some form of USB media.
  • Page 104: Re-Import License.key

    Select the drive containing the license.key file (for example, USB-Data-AC (F:)). Select license.key, then select Open to re-import the file. Note: If there are any problems, clear all menus, return to the Licensing dialog and contact Ultrasonix Technical Support for assistance.
  • Page 105: Chapter 11: Maintenance

    Maintenance (PM) Ultrasonix procedures 11.2 CLEANING SYSTEM COMPONENTS Ultrasonix recommends the following cleaning instructions for all external surfaces, including the cart, cables and connectors. Cautions: Power off and unplug the system before cleaning. Do not spill or spray water on the controls, transducer connection receptacle, or transducer ports.
  • Page 106: Lcd Display/Touch Screen And Cabinet

    11.2.1 LCD Display/Touch Screen and Cabinet Cautions: Power off and unplug the system prior to cleaning the LCD display/touch screen. DO NOT apply cleaning solutions directly to any surface of the system. 11.2.1.1 LCD Display Cabinet Apply a small amount of one of the following recommended cleaning solutions to a soft, non-abrasive cloth and wipe down the cabinet: •...
  • Page 107: Sonixone Q+ Cart And Accessories

    11.2.4 SonixOne Q+ Cart and Accessories Cautions: Power off and unplug the system prior to cleaning. If the system is equipped with a Battery, DO NOT apply cleaning solutions directly to the power cord. Note: For cleaning purposes, the Battery and Printer are not considered SonixOne Q+ accessories. For details on cleaning the Battery filters, refer to 11.2.10.
  • Page 108: Transducer Holders And Cable Hooks

    Power off and unplug the system prior to cleaning. For best results, Ultrasonix recommends removing the transducer holders and cable hooks before cleaning (7.5.1). This will allow the operator to clean all the various curves and folds in a more effective manner.
  • Page 109 Select Administrator > Service. Enter the Level 1, Service Mode Password and select OK. Note: To obtain a Level 1, Service Mode Password, contact Ultrasonix Technical Support. From the Advanced Tools and Options drop-down menu, select Reset Fan Filter Reminder.
  • Page 110: Transducer Maintenance

    Refer to Third Party Accessories in Appendix B of the relevant Extended User Manual for the recommended transducer cover/sheath. 11.3.2 Ultrasound Coupling Gels The following ultrasound coupling gel is recommended for use with Ultrasonix transducers: Table 11-2: Recommended Ultrasound Coupling Gels Gel Name...
  • Page 111: General Transducer Maintenance

    DO NOT use sterilization or disinfection methods that have not been recommended by Ultrasonix. Severe damage will result. Contact Ultrasonix if you have any doubt about sterilization or disinfection methods. Use of non- recommended cleaning agents may cause damage to the housing and will void transducer warranties.
  • Page 112: General Transducer Cleaning/Disinfecting Recommendations And Warnings

    (such as gloves, protective eyewear and protective clothing). DO NOT use sterilization or disinfection methods that have not been recommended by Ultrasonix. Severe damage will result. Contact Ultrasonix if you have any doubt about sterilization or disinfection methods.
  • Page 113: Cleaning/Disinfecting Non-Invasive Transducers

    L14-5W/60 Caution: Use only Ultrasonix recommended cleaners/disinfectants (Table 11-3). They have been tested and determined safe to use on Ultrasonix transducers. Failure to follow these instructions may cause damage and will void transducer warranties. SonixOne Service Manual 00.053.206, Revision A...
  • Page 114: Cleaning Non-Invasive Transducers

    11.3.5.1 Cleaning Non-Invasive Transducers Thorough cleaning is essential for successful disinfection. If a transducer is not properly cleaned, any remaining particles (e.g., blood, bodily fluids, dirt) may protect the microorganisms from the disinfection process, rendering it ineffective. Disinfectants overloaded with soil can become contaminated and may themselves become a source for microorganism transmission.
  • Page 115: Cleaning/Disinfecting Endocavity Transducers

    Caution: Use only Ultrasonix recommended cleaners/disinfectants (Table 11-4). They have been tested and determined safe to use on Ultrasonix transducers. Failure to follow these instructions may cause damage and will void transducer warranties. To Clean/Disinfect a Transducer: Unplug the transducer.
  • Page 116: Shipping Transducers For Service

    11.4 SHIPPING TRANSDUCERS FOR SERVICE It is the customer's responsibility to ensure: • each transducer is disinfected prior to shipping (11.3.5 and 11.3.6) • the transducer is properly packaged for shipment (11.3.3.2) • all shipping waybills/paperwork is completed as per the relevant regulations and laws. Refer to 7.6 Returning Parts for Service/Repair/Replacement for more details on transducer return or replacement.
  • Page 117: Appendix A: Electromagnetic Immunity Tables

    APPENDIX A: ELECTROMAGNETIC IMMUNITY TABLES Table A-1: EN 60601-1-2:2007 (Table 1) Guidance and Manufacturer’s Declaration — Electromagnetic Immunity The SonixOne Ultrasound System is intended for use in the electromagnetic environment specified below. The customer or the user of the SonixOne Ultrasound System should ensure that it is used in such an environment.
  • Page 118 Table A-3: EN 60601-1-2:2007 (Table 4) Guidance and Manufacturer’s Declaration—Electromagnetic Immunity The SonixOne Ultrasound System is intended for use in the electromagnetic environment specified below. The customer or the user of the SonixOne Q+ should ensure that it is used in such an environment. Immunity Test IEC 60601 Test Level Compliance Level...
  • Page 120 Ultrasonix Medical Corp., 130–4311 Viking Way, Richmond, BC, Canada V6V 2K9 Tel: 1-604-279-8550 Fax: 1-604-279-8559 Analogic Corporation Analogic Ultrasound Analogic Ultrasound Analogic Ultrasound (Headquarters) (Headquarters USA) (Headquarters Canada) (Headquarters Europe and Rest of World) 8 Centennial Drive 8 Centennial Drive...
