3.3.6

ECG Cables

Refer Chapters 5 and 7 in the SONIX MDP User Manual for details on ECG imaging and ECG
Measurements and Reports.
Note: ECG functionality is a licensed option.

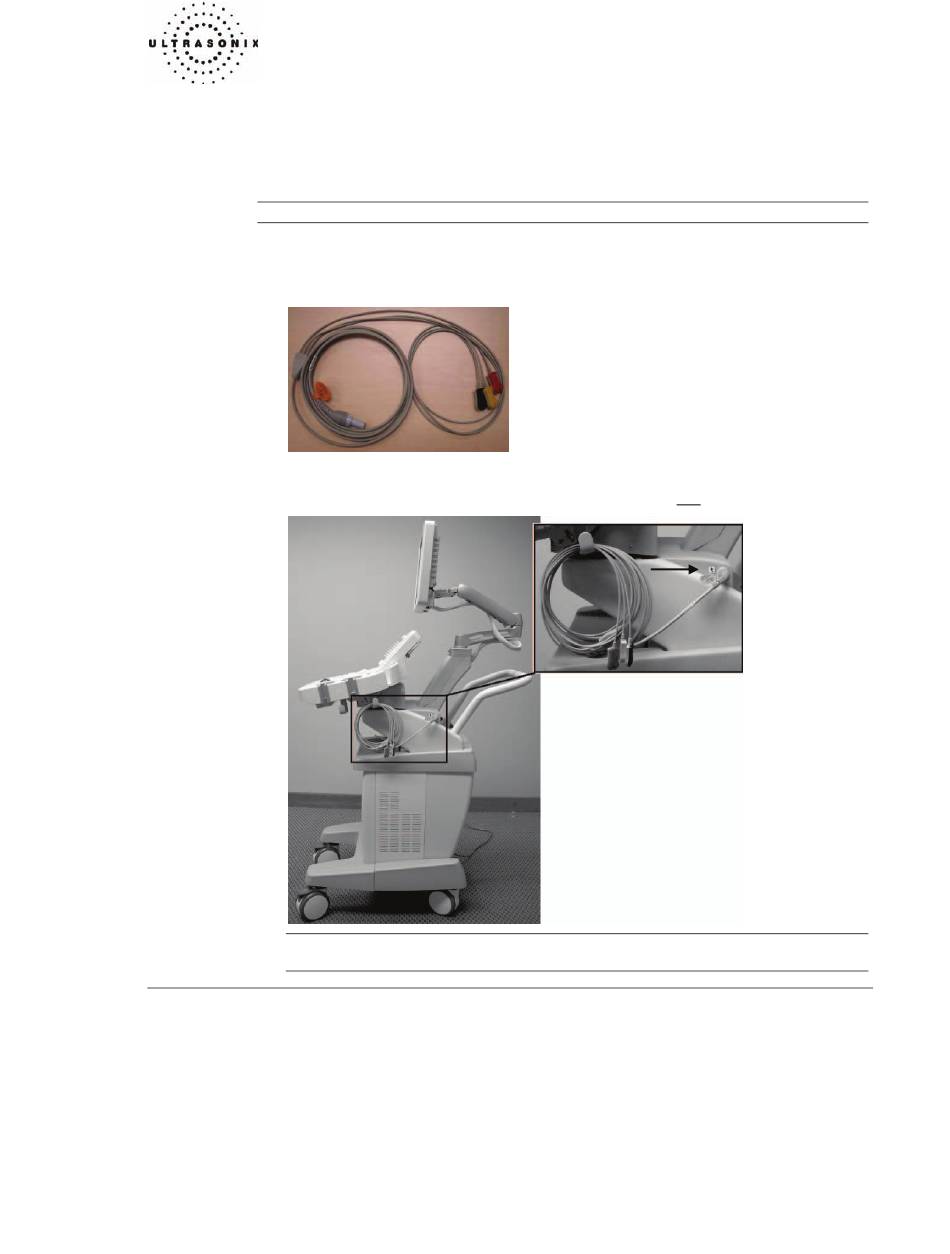

To Inspect and Connect the ECG Cables:
1. Unpack the ECG cables and inspect for damage.
2.
If damaged, report it to Ultrasonix.
3. Ensure the ECG cables can be connected to the system (left and right sides).
Note: The ECG switch on the Back Connectivity Panel should be set to Left for this
configuration.
