System Relay Output
The relay output labeled SYSTEM OUT can be connected and used as an external
system alarm indicator.
This is a system fault relay that is hardware controlled by watchdog and cannot be
configured by software.
The system relay output is always activated when system is Ok.
Important - Total coil current for all five connected relays (Dig1 Out to Dig4 Out
and SYSTEM OUT) should not exceed 300 mA.
Dig1 Buffered Output
Each IMx-S 16 has one and IMx-S 32 has two digital buffered outputs labeled as Dig1
In Buf Output (a buffered copy of the Dig1 input) as shown in Relay terminal list table,
above.
• Dig1 In Buf Output copies and buffers the signal from digital channel 1 labeled as
Dig1.
• This output is a low-side switch to GND. (The output does not provide any signal
power, just short to GND.)
• This output can be directly connected to a two-wire tachometer input in the other
IMx I/O board.
–
• Dig1 In Buf Output and GND are located in last two pins in the relay terminal block.
SKF Multilog On-Line System IMx-S
User Manual

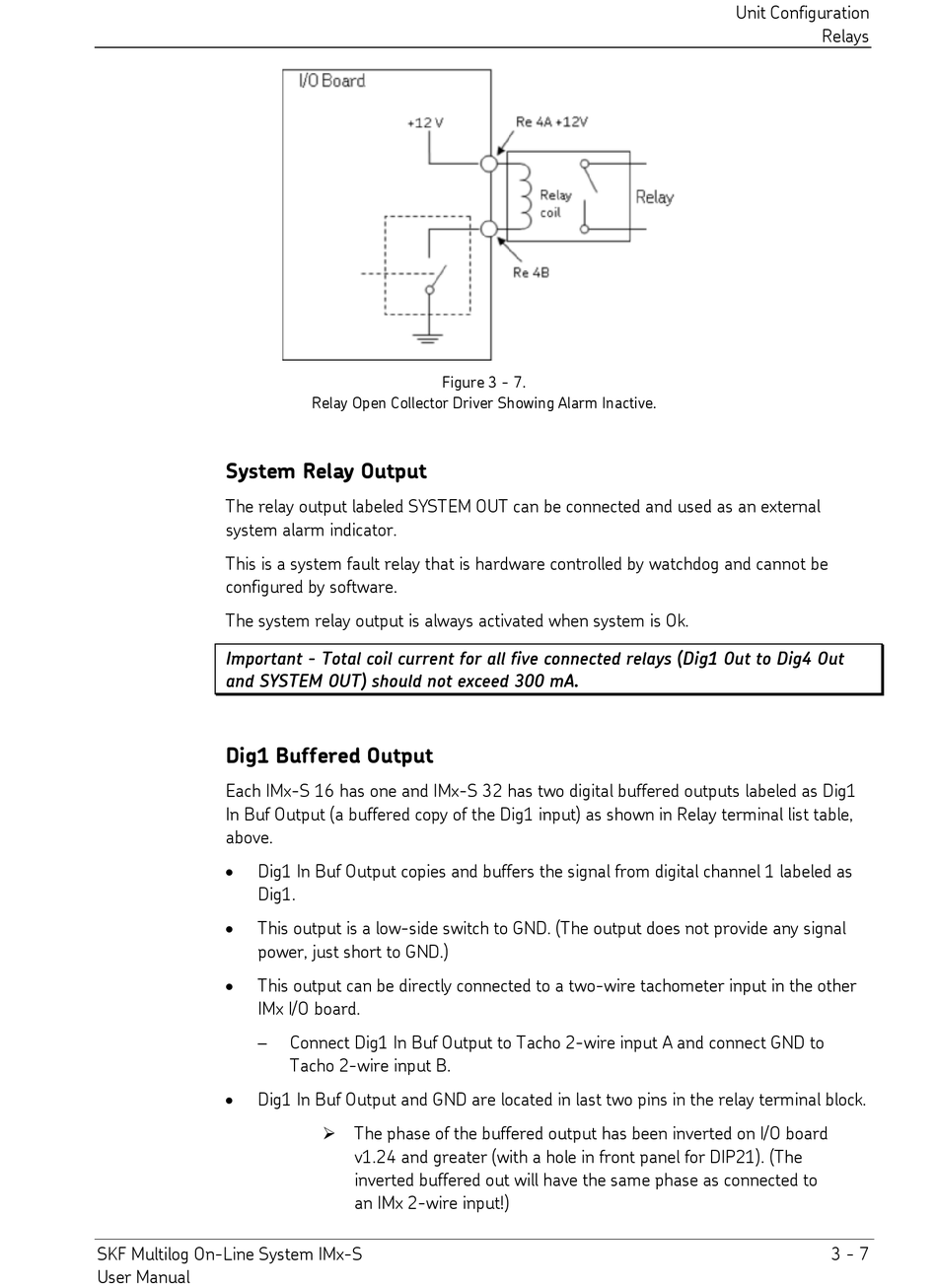

Figure 3 - 7.
Relay Open Collector Driver Showing Alarm Inactive.
Connect Dig1 In Buf Output to Tacho 2-wire input A and connect GND to
Tacho 2-wire input B.
 The phase of the buffered output has been inverted on I/O board
v1.24 and greater (with a hole in front panel for DIP21). (The
inverted buffered out will have the same phase as connected to
an IMx 2-wire input!)
