At maximum ambient temperature, the total sensor power from all inputs must not
exceed:
IMx-S 16 10 W
IMx-S 32 10 W (at 60 ˚C [140 °F] only ICP sensors are recommended)
At lower temperatures more total sensor power is allowed; please contact SKF
Condition Monitoring Center Luleå or application engineer.
Important - Do NOT change DIP switch settings while the IMx-S unit is powered-
up, as this may cause damage and void warranty.
Important - Before powering up the IMx-S unit, make sure that DIP switch settings
are properly set to match the recommendations for the connected sensors.
Incorrect settings may cause permanent damage to the IMx-S unit.

Digital Inputs

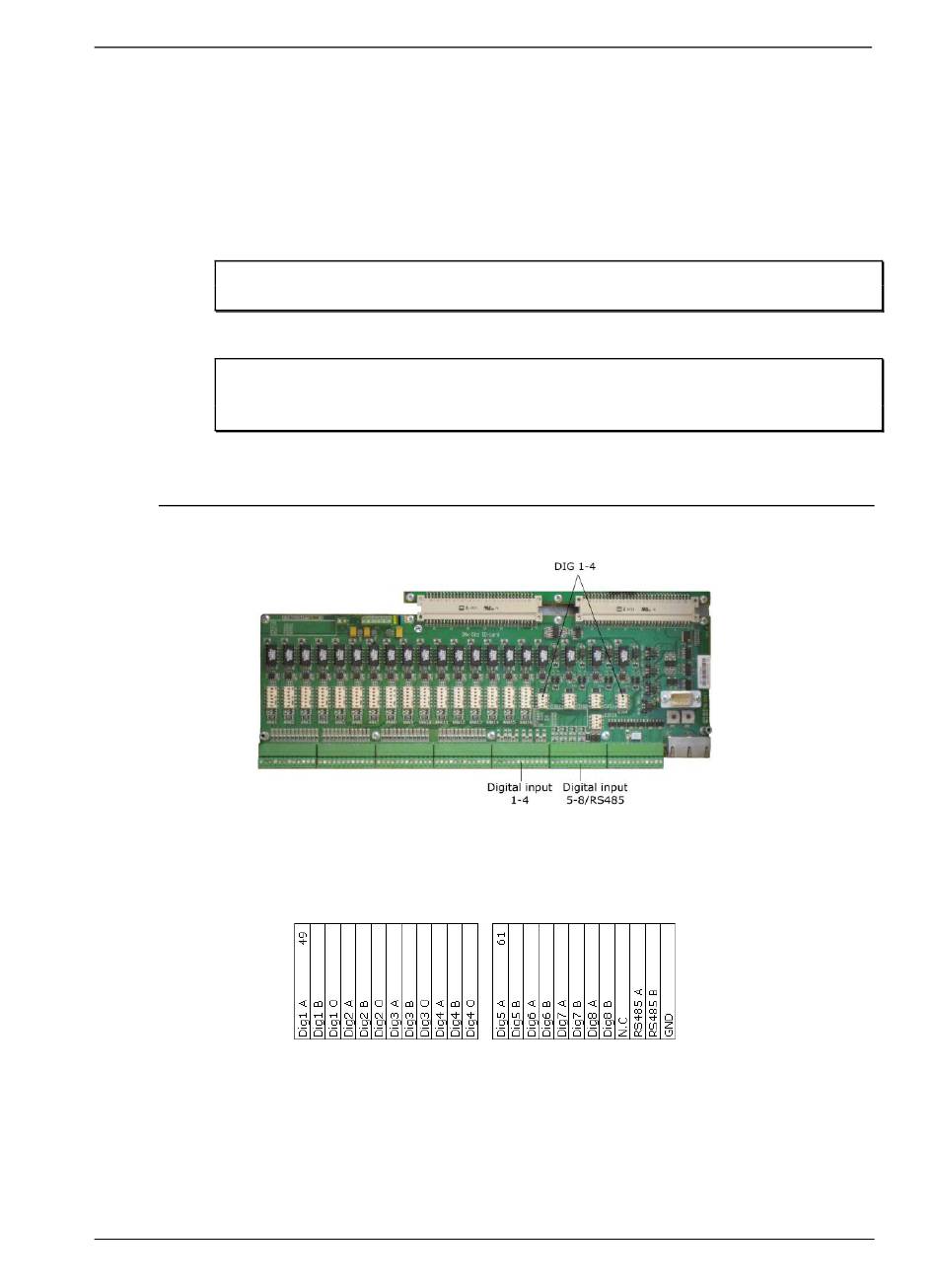

The IMx-S I/O board along with the corresponding digital terminal list are shown below.
Table 3-4
Digital inputs 1 to 4 (Dig1 to Dig4) are configurable via DIP settings. The DIP settings
must be applied according to the table below.
SKF Multilog On-Line System IMx-S
User Manual
Figure 3 - 3.
IMx-S I/O Board, Digital Inputs.
: Digital terminal list.
Unit Configuration
Digital Inputs
3 - 3
