Installation
Mains Power
Important - For permanently connected IMx-S an external all pole power switch
must be installed in order to be able to disconnect the IMx-S from the mains power
grid. The switch must be labeled "IMx-S" or similar. On/Off position must be clearly
marked. The switch must be located close to the IMx-S, within operator's easy
reach.
Important - Fuse holder CANNOT be used as mains power disconnect device.
Refer to Power Supply in Technical Data section for power requirements.
As shown in the picture above, a fuse (slow blow T2A, 250 V, 5 x 20 mm) is mounted in
the terminal power inlet.
Important - In order to prevent a hazardous event, mains cable neutral (N) and line
(L1) wires must be secured together with a cable tie (for example, a nylon cable tie
CV-100K) close to the mains power connector.
Important - All externally provided equipment must be evaluated individually and
approved together with IMx-S unit regarding EMC and safety requirements (CE and
ETL). Always consult SKF CMC Luleå before the usage of the external mains output.
2 - 4

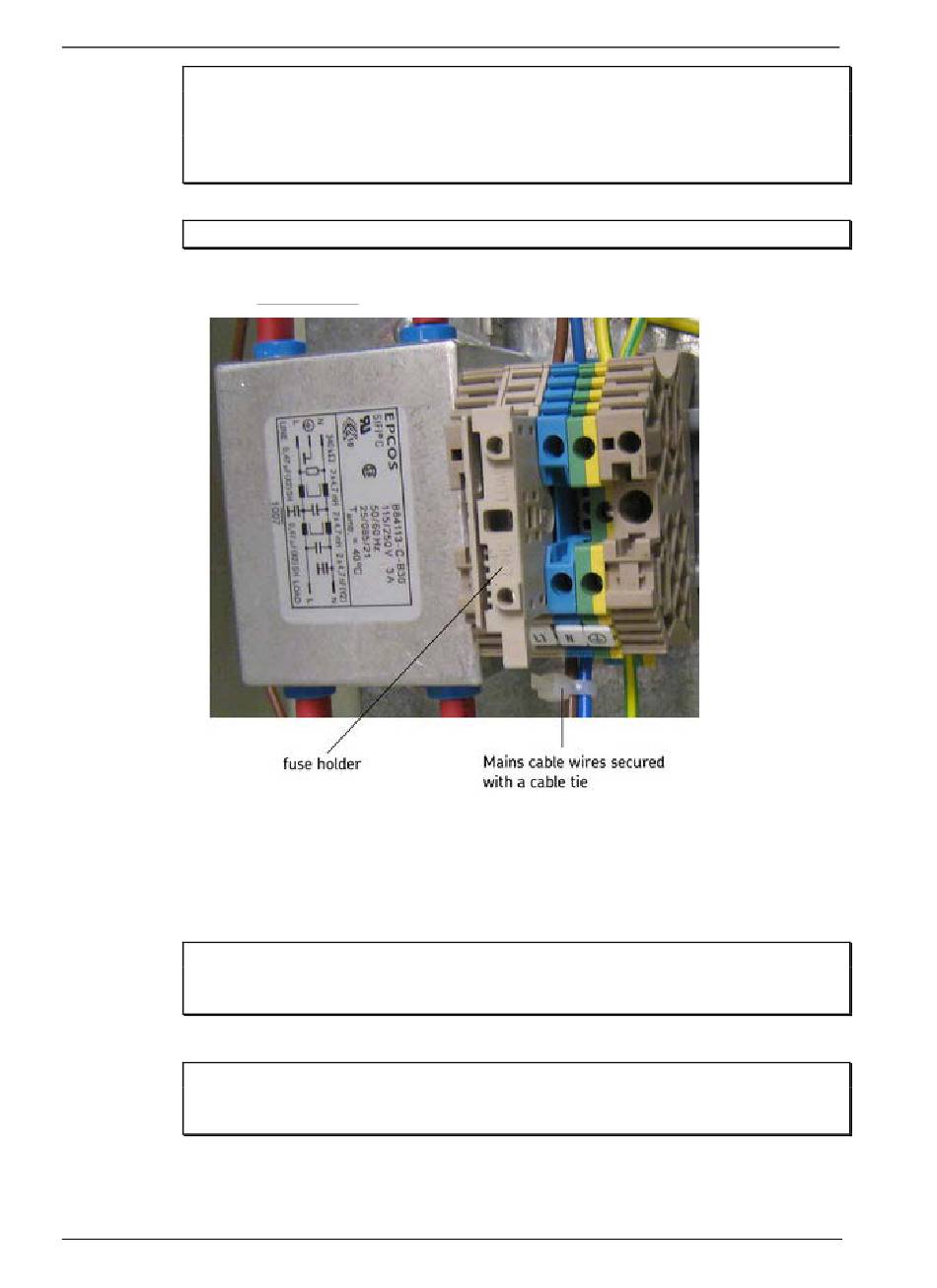

Figure 2 - 1.
IMx-S Mains Power and Fuse Holder.
SKF Multilog On-Line System IMx-S
User Manual
