Chapter 4 Operation
Loading Cassette Tray (Poersch Type)
To load a film cassette into a "Poersch" type cassette tray, proceed as fol-
lows:
1. Pull cassette tray from Receptor Cabinet using tray handle (see Figure
15).
CLAMP HANDLE
TRAY HANDLE
2. Place thumb under lip of clamp handle. Lift handle to release.
3. Grasp handle and slide clamp back for inserting cassette.
4. Insert cassette into tray (back end first). Center it using centering la-
bel.
5. Slide clamp forward pushing clamp firmly against cassette.
6. While pushing clamp against cassette, press clamp handle down
26

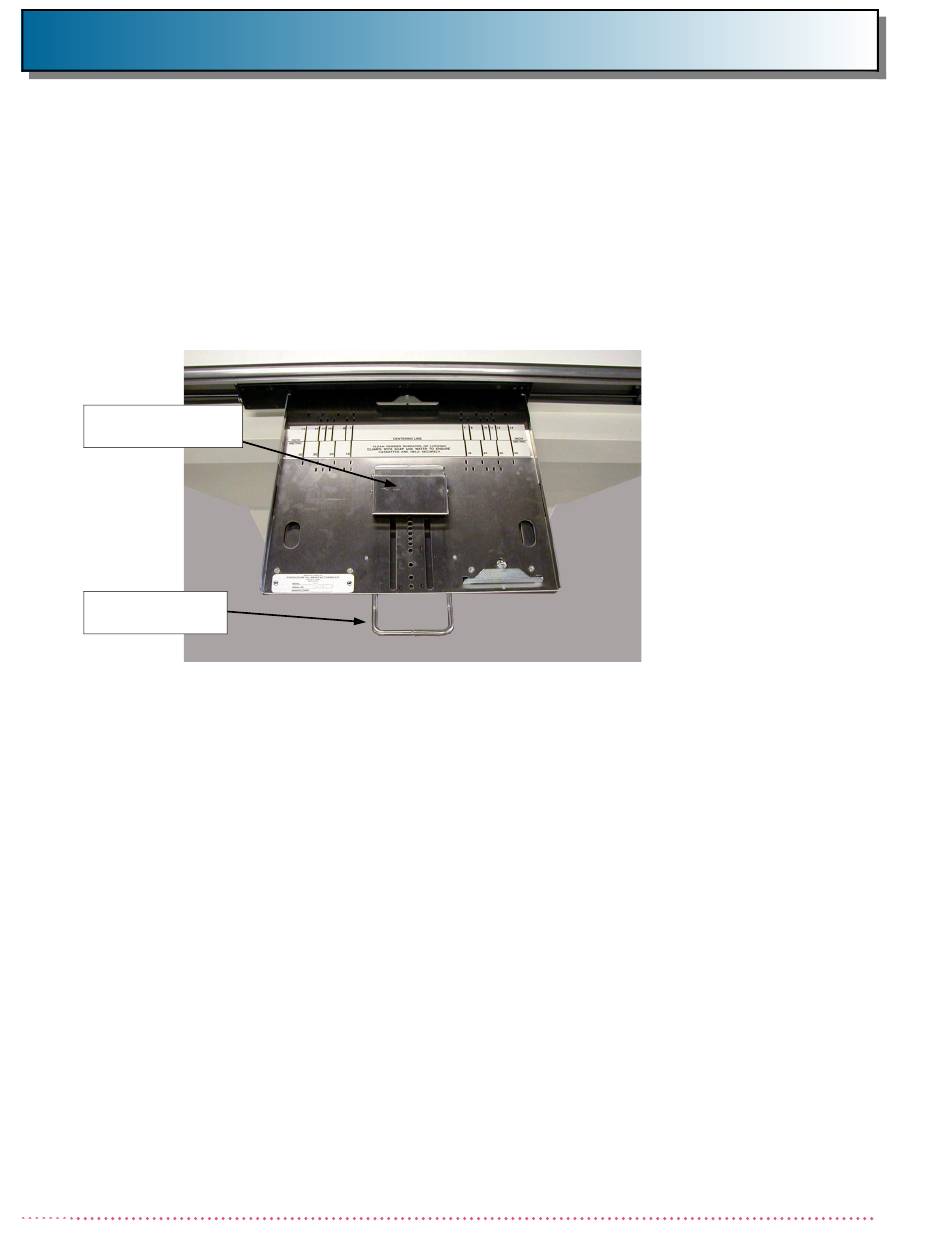

Figure 15. Poersch Cassette Film Tray
