RADIOGRAPHIC TABLE OPERATION
Model QT-710/720 Radiographic Table
CAUTION! All movable assemblies and parts of this equipment
CAUTION! All movable assemblies and parts of this equipment CAUTION! All movable assemblies and parts of this equipment
must be operated with reasonable care.
must be operated with reasonable care. must be operated with reasonable care.
TABLE WHEEL LOCK OPERATION (MODEL QT-710 ONLY)
On Model QT-710 mobile radiographic tables, wheel locks are located on the
front left and right wheels of the table for immobilizing the table (see Figure
12). To operate the wheel locks, proceed as follows:
Locking the Wheel - Press down on the end of the lever on a locking wheel.
The wheel is now locked and cannot roll.
Unlocking the Wheel - Lift up the depressed lever. The wheel is now unlocked
and able to roll.

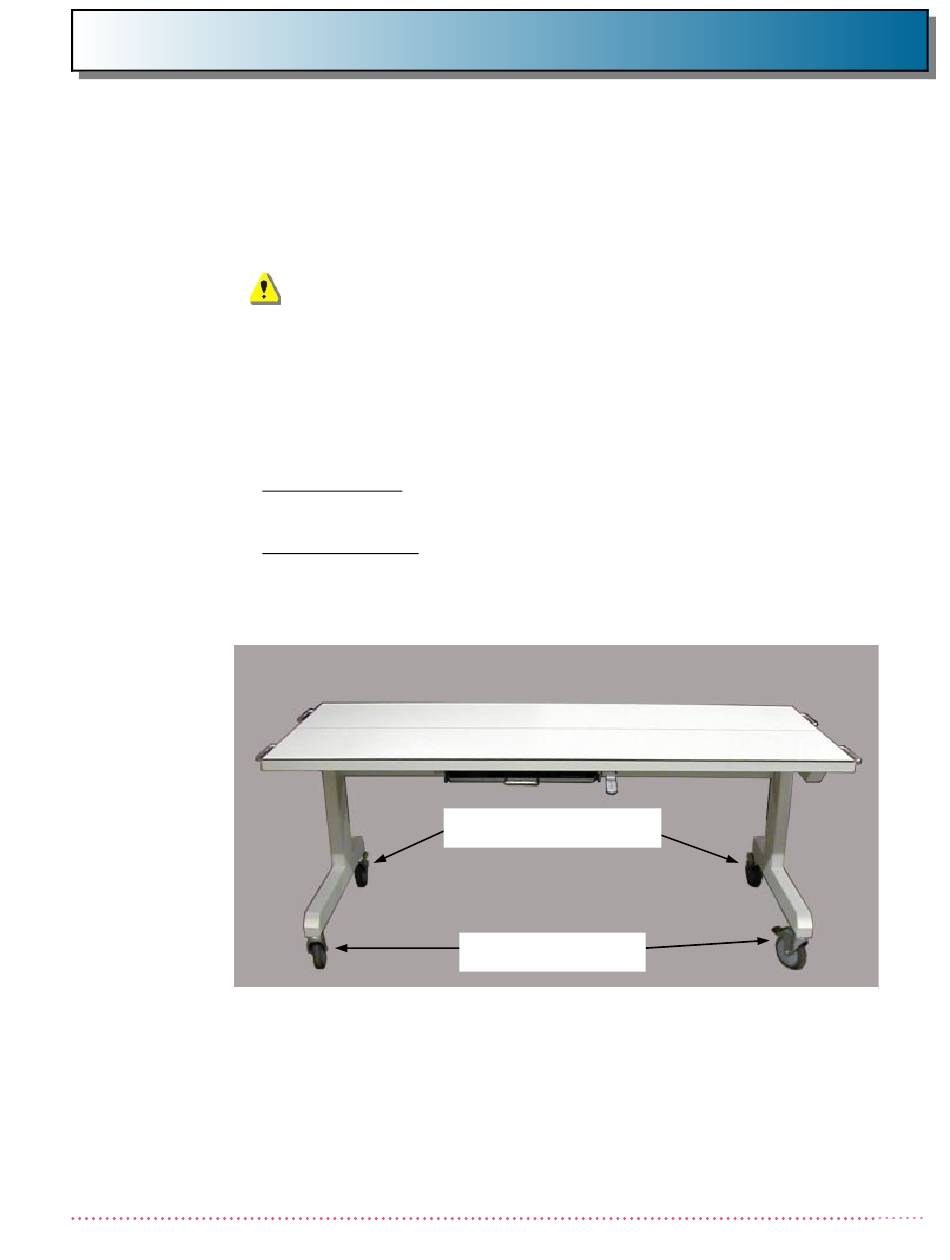

Figure 12. Wheel Lock Locations
Chapter 4 Operation
NON-LOCKING WHEELS
LOCKING WHEELS
