Model QT-710/720 Radiographic Table
Chapter 3 Assembly & Installation
3. Install the Receptor Cabinet as follows:
a. Loosely attach the two (2) Front Receptor Bearing Brackets to the Re-
ceptor Cabinet, as shown in Figure 6, using three (3) 1/4-20 x 3/4" pan
head screws (bracket with handle mounts to right side of cabinet).

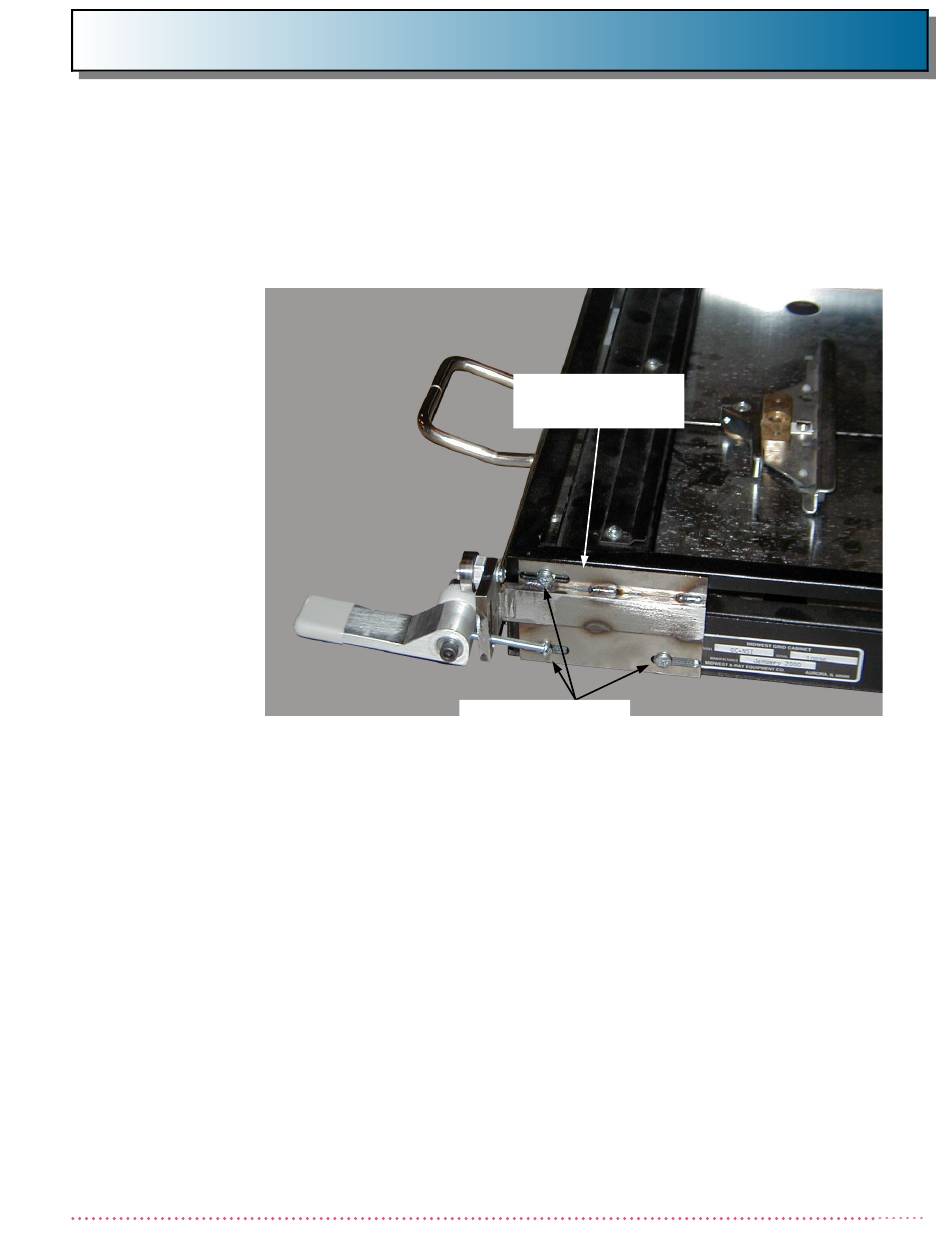

Figure 6. Installing the Front Receptor Bearing Brackets
b. Through the opening in the top of the table, insert the Front Receptor
Bearings so they rest on the front bearing track (see Figure 7). Care-
fully, lower the back end of the Receptor Cabinet so it rests on the Ta-
ble Leg Brace (see Figure 8).
RECEPTOR BEAR-
ING BRACKET (2X)
1/4-20 X 3/4" PAN
HEAD SCREWS (3X)
15
