Summary of Contents for PXM PX378 PxArt+ Frame
- Page 1 PX378 PxArt+ Frame User manual...
-
Page 2: Table Of Contents
8 RDM – available parameters..............19 9 Connection scheme.................21 10 Dimensions.....................22 11 Technical data..................23 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 32-003 Podłęże mail: info@pxm.pl Rev.1-1 BDO register number 000005972 www.pxm.pl... -
Page 3: Description

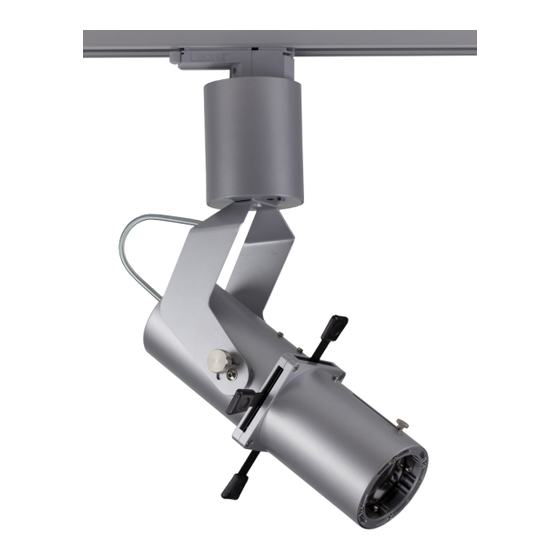

Description PxArt+ Frame is a professional cropping LED illuminator for the lighting of museums exhibitions or trade fair displays. The precision cropping system allows you to control the luminous flux and adjust the illumination range to the size and position of the displayed object. -
Page 4: Safety Conditions
By using an additional PX277 device (PxArt+ Settings Controller), you can set all parameters of the device and read the information on the time and temperature of the lamp. The PX378 illuminator supports the RDM protocol. Safety conditions Caution ! Before installing, connecting and using the lamp you have to absolutely read this document. - Page 5 In case of improper usage of the product it may cause a risk of serious injury or death because of the threat of fire. Device PX378 is powered directly from standard 230V grid what can cause electric shock when safety rules are not observed. Therefore it is necessary to observe the following: 1.
-
Page 6: Information On Version
The dimming of the lamp brightness occurs when the temperature is above +70°C, which prevents the device from overheating. If the device reaches a temperature of +90°C, the power of the lamp will be totally reduced. The light is then switched automatically in the event of temperature drop below the maximum temperature (+90°C). -
Page 7: Dmx Signal And Power Connection
DMX signal and power connection 4.1 Adapter GLOBAL Trac GAC 600 CONTACTS DMX DMX - ( on the opposite side DMX +) POWER CONTACTS earth phase 1 (phase 2 on the opposite side) neutral (phase 3 on the opposite side) phase selector switch 4.2 Cross-section through DMX GLOBAL Trac ®... -
Page 8: Manual Change Of Lamps Settings
Manual change of lamps settings The lamp has been equipped with a button which allows for changing the brightness level. The button has been placed at the bottom part of the junction box, above the lamp reflector. The layout of the button and connectors for connecting the PX277 programmer has been shown in the figure below : Manual control button and socket for programming the lamp parameters. - Page 9 after starting up of the lamp with the lack of the DMX signal – the LED • lights (continuously) for 1 minute damage of a temperature sensor module – the LED does not go off • after one minute In order to reduce brightness, a relevant adjustment key must be held pressed for a while.
-
Page 10: Cooperation With The Px277 Configurator
Cooperation with the PX277 configurator Lamp settings can be changed by connecting it with the PX277 PxArt+ Settings Controller. On setting the connection, the PX378 will start up again, as a result of which the LEDs go off for a moment and the LED informing about the DMX signal condition blinks for 2 seconds. -
Page 11: Description Of The Information Parameters
6.1 Description of the information parameters PX277 controller allows you to read important information concerning the lamp to which it has been connected. Model PX378 +FRAME 6 x NEXT Lighting time 00y 000d 11h:29m NEXT Working time 00y 011d 17h:38m NEXT Temp. -
Page 12: Lamp Brightness Address
Temp. min max / Current temp. – information concerning the minimum, maximum and current temperature reached by the lamp. Unit expressed in [°C]. Serial Number – lamp serial number Version – version number of the software installed in the PX378 lamp 6.2 Lamp brightness address PX277 allows for changing the DMX address which controls the brightness of the lamp. -
Page 13: Scene Brightness
6.3 Scene brightness Lamps from PxArt+ series can work without using DMX control. In such case, PxArt+ Settings Controller enables changing the scene brightness value. This value can be set between 0 to 255. [Scene bright.] set to value 0 turns off Model Scene bright. -
Page 14: Smooth Time
6.5 Smooth time When the PxArt+ Settings Controller time smoothing is active, it allows for changing the smoothing time value. As a result it enables an acceleration or deceleration of the brightness parameter change. Maximum available value is 2000ms and minimum is 10ms. [Smooth time] –... -
Page 15: The Pxart+ Frame Menu Diagram In Px277
6.7 The PxArt+ Frame menu diagram in PX277 Model PX378 +FRAME NEXT ENTER Bright. address Bright. address 001 * NEXT Scene bright. 000 * NEXT Bright. address 512 * PREV ENTER Scene bright. Scene bright. 128 * NEXT NEXT ENTER Smooth Smooth Scene bright. -
Page 16: Installation Of Shutters
Installation of shutters First, insert the movable shutters at an angle into the appropriate pockets – visualization below. - Page 17 After inserting the diaphragms at an angle, it should be straightened according to the diagram below.
- Page 18 Particular attention should be paid to which pockets are inserted. Opposite diaphragms must be put in pocket on the same level (upper or lower pocket). shutter in the upper pocket shutter in the lower pocket shutter in the shutter in lower pocket the upper pocket...
-
Page 19: Rdm - Available Parameters
RDM – available parameters PX378 supports the DMX-RDM protocol. DMX protocol in its assumption enables one-way data flow while its extension, the RDM protocol, can transmit information in two ways. This makes the simultaneous receiving and sending of information possible and allows for monitoring the operation of devices compatible with the RDM protocol as well as gives the possibility of changing the configuration of their parameters. - Page 20 Parameter name Description additional device description; It is possible to enter an additional DEVICE_LABEL * 0x0082 device description using up to 32 ASCII characters. DMX_PERSONALITY * 0x00E0 DMX operational mode DMX_PERSONALITY_ description of individual 0x00E1 DESCRIPTION operational modes information concerning the SENSOR_DEFINITION 0x0200 selected temperature sensor...
-
Page 21: Connection Scheme
Connection scheme a three-phase track for control systems ® GLOBAL Trac Pulse Control DMX+ DMX- end feed power cable DMX cable (shielded cable, two-core cable) adapter GLOBAL Trac GAC 600... -
Page 22: Dimensions
10 Dimensions 113,5... -
Page 23: Technical Data
11 Technical data type PX378 power supply 230V AC number of LEDs 1 (COB) power PF (power factor) 0,94 max. increase of the housing temperature +50°C CRI index min. 80 lifetime of diode 50 000h cropping area max. 1,35 x 1,35m (at distance 3m) brightness regulation extension 0 –... - Page 24 Podłęże, 06.09.2019 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: PxArt+ Frame Product code: PX378 meets the requirements of the following standards, as well as harmonised standards: PN-EN 60598-1:2015-04...
