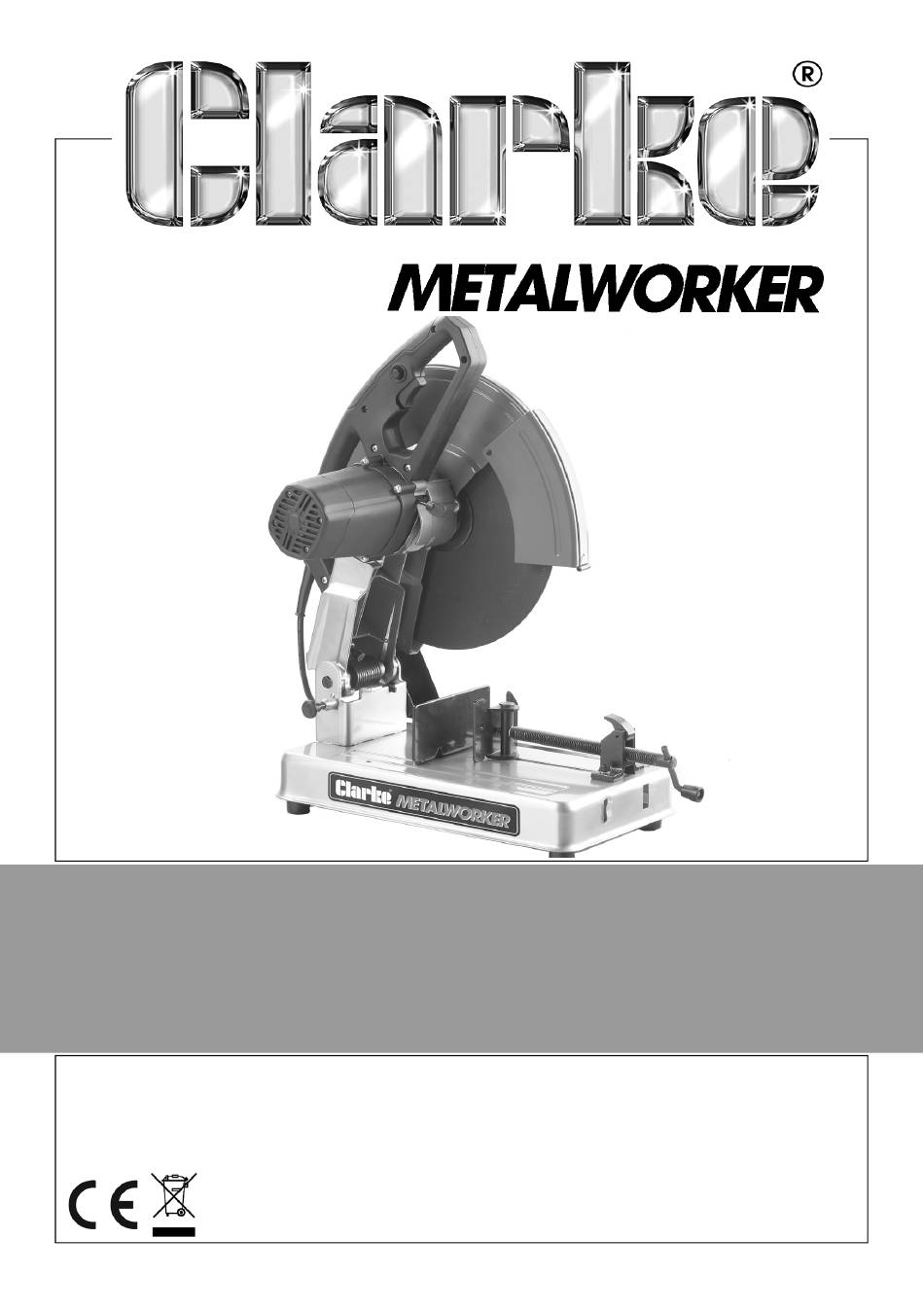

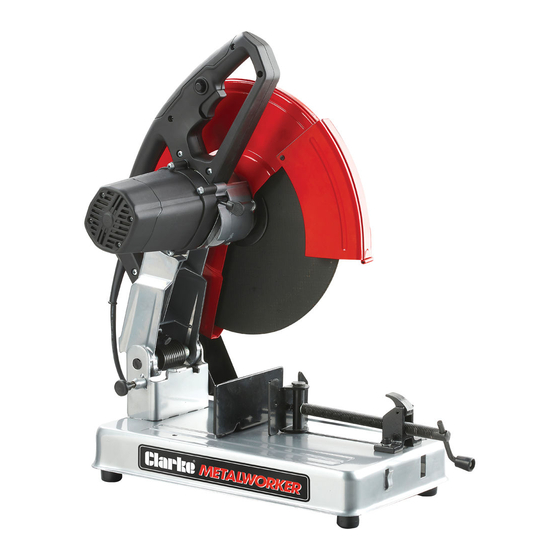

- Page 1 355MM ABRASIVE CUT-OFF SAW MODEL NO: CCO14D PART NO: 6470162 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1020...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE Abrasive Cut-Off Saw which is suitable for cutting any ferrous metals which are compatible with the type of abrasive wheel fitted. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. -
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/ OR SERIOUS INJURY. THE TERM “POWER TOOL” IN THE WARNINGS REFERS TO YOUR SAW. Save these warnings and instructions for future reference. WORK AREA SAFETY a. -
Page 4: Personal Safety
PERSONAL SAFETY a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. -
Page 5: Additional Warnings For Cut-Off Saws
12. Ensure you use the correct type of abrasive disc for the type of material being cut. Metal cutting & masonry abrasive discs are available from your CLARKE dealer. NEVER cut magnesium, wood, or non-ferrous metals. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. -
Page 7: Unpacking And Assembly
UNPACKING AND ASSEMBLY Unpack the saw carefully and ensure that the following items are in the box. In the event of any deficiencies you should contact your CLARKE dealer immediately. • Abrasive Cut-off Saw • 355mm cutting disc (supplied fitted) •... -
Page 8: Vice Operation
OPERATION VICE OPERATION 1. Turn the handle counterclockwise to remove clamping pressure. 2. Lift the vice lever up. 3. Pull handle out as far as desired. • The vice may be pushed forward into the work without turning the handle. 4. -
Page 9: Changing The Cutting Angle
ADJUSTMENTS WARNING: TURN OFF AND UNPLUG THE SAW BEFORE MAKING ANY ADJUSTMENTS. MAKE SURE THE TRIGGER SWITCH IS IN THE OFF POSITION. CHANGING THE CUTTING ANGLE 1. Use the hex wrench provided to loosen (do not remove) the two fence bolts. 2. -
Page 10: Removal And Installation Of Cutting Discs
ADJUSTMENTS OR REMOVING OR INSTALLING CUTTING WHEELS. BE SURE THE TRIGGER SWITCH IS IN THE OFF POSITION. Cutting discs are available from your CLARKE dealer - Part Number: 6470800 1. With the motor arm in the ‘UP’ position, rotate the blade guard out of the way as shown. -
Page 11: Depth Stop
DEPTH STOP The depth stop is set at the factory for a new 14" (355mm) cutting disc. This can be adjusted as the disc wears. 1. Loosen the jam nut. 2. Loosen the depth stop bolt. 3. Adjust the bolt to desired height. 4. -
Page 12: Specifications
SPECIFICATIONS Voltage 230V AC @ 50Hz Input power 2000W Current Rating 10.43A Ingress protection IP20 No-load speed 3800 rpm Weight 16.5 kg Dimensions (L x W x H) mm 550 x 320 x 650 (head raised/395 lowered) Cutting disc size 355 dia x 3.2 thick. -
Page 13: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Parts List
PARTS LIST Description Description Description S/t screw st4.2 x 16 Bearing holder Pin 6 x 30 Left handle Screw M5 x 16 Base assembly On/off switch Output spindle 46A Rear guard Capacitor Screw M5 Screw M8 x 20 Cover Name plate 46C Base Rubber sheath Bolt M5 x 16... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
