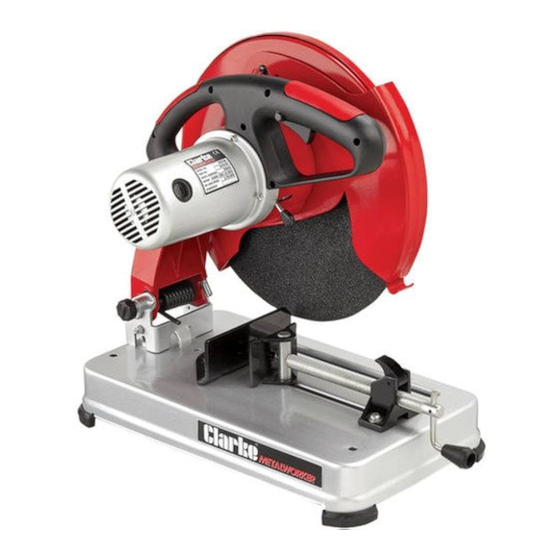

- Page 1 ABRASIVE CUT-OFF SAW MODEL NO: CCO14B PART NO: 6470160 OPERATION & MAINTENANCE INSTRUCTIONS GC0616...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE Abrasive Cut-Off Saw which is suitable for cutting ferrous metals which are compatible with the type of abrasive wheel fitted. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/ OR SERIOUS INJURY. THE TERM “POWER TOOL” IN THE WARNINGS REFERS TO YOUR SAW. Save all warnings and instructions for future reference. 1) WORK AREA SAFETY a. -
Page 4: Personal Safety
3) PERSONAL SAFETY a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. -
Page 5: Additional Warnings For Cut-Off Saws
12. Ensure you use the correct type of abrasive disc for the type of material being cut. Metal cutting & masonry abrasive discs are available from your Clarke dealer. NEVER cut magnesium, wood, or non-ferrous metals. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. This product is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug, for connection to a standard, domestic electrical supply. Should the plug need changing at any time, ensure that a plug of identical specification is used. -
Page 7: Unpacking And Assembly
Unpack the saw carefully and ensure that all items are accounted for according to the above list. In the event of any deficiencies you should contact your Clarke dealer immediately. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 8 Fit the Spark Deflector as shown in fig.2, securing with the M5 hex. head screw. FEATURES 1. A stop is provided to restrict the height to which the arm may be lowered. The stop is in the form of a bolt, arrowed in fig. 3 which should not require adjusting.
-
Page 9: Adjusting The Vice
ADJUSTING THE VICE A. BEVEL CUTTING The vice may be moved up to 45° for bevel cutting. To set the required angle, slacken off the two bolts securing the fixed vice jaw (shown at B), and swivel the jaw to the appropriate angle according to the scale provided. -
Page 10: Maintenance And Servicing
Take great care not to over tighten the centre bolt. Refer to your CLARKE dealer if internal maintenance is required. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 11: Changing The Carbon Brushes
CHANGING THE CARBON BRUSHES Maintenance to the motor is limited to changing the carbon brushes. These will naturally wear with use and require replacing. They should be checked periodically as follows: 1. Unscrew and remove the plastic covers on the end of the motor with a screwdriver. -
Page 12: Specifications
SPECIFICATIONS MODEL CCO14B Voltage 230 V AC @ 50Hz Input power 2200 Watts Current Rating 10 Amps No-load speed (single speed with soft 3750 rpm start) Weight 18 kg Dimensions (L x W x H) 545 (head lowered) x 308 x 423 mm... -
Page 13: Parts Diagram
PARTS DIAGRAM CUTTING DISCS FOR THE CCO14B 14” (350mm) cutting discs - Part Number: 6470800 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Parts List
PARTS LIST No Description No Description No Description Rubber Foot Washer 8mm Screw M6 x 16 Base Pan head screw M5x40 64 Self-tapping screw Fence Stator Cable Vice Screw Ring Terminal Handle cover Locknut M8 Self-tapping screw Leader wire Support Bracket Baffle Cable gland Washer 8mm... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
