Application: Digital scroll

The configuration and daily operation of the AK-PC 551 will be
explained via an application example:

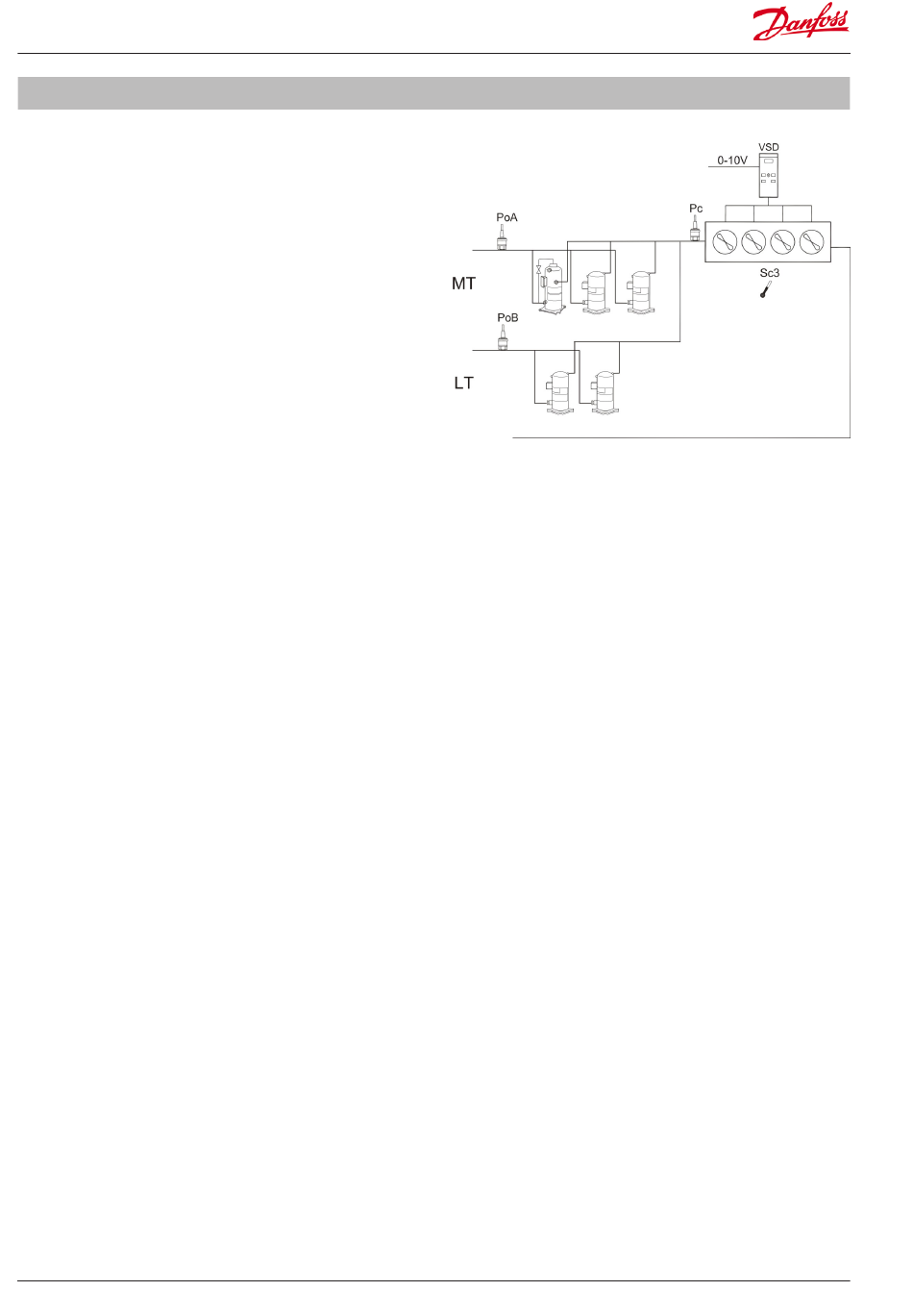

AK-PC 551 controls a refrigeration system with two suction
groups of compressors and a common air cooled condenser�
Refrigerant: R404A
Suction group MT:
1 digital scroll compressor
2 single step scroll compressors
Control according to suction pressure Po
Set point -15 °C
Monitoring of discharge temperature of digital scroll
Suction group LT:
2 single step scroll compressors
Control according to suction pressure Po
Set point -30°C
Condenser:
Speed control of 4 fans
Common safety monitoring of fans
Relay output for start/stop of VSD
Control according to condensing pressure Pc
Floating reference according to Sc3 outdoor temp�
