Example: Wizard
Wizard setup
In this example we will use the wizard to configure the controller�
General
In the first general screens you must select
how data are presented in the display�
Please note that the "Control setup unit"
decides whether the control set points are
presented in pressure units or temperature
units (saturated temperature)�
Plant type
Select the overall application of the
controller and the refrigerant type�
Suction A and B
Set the compressor combination as well
as the compressor sizes, control sensor
and set point� The pressure range of the
pressure transmitter can be set�
12
Press ENTER for 2 sec�
and enter password (300)
to access quick start
Press ENTER
to select the
wizard
Technical brochure RC8CF102 © Danfoss 08-2014
Press ESCAPE to
leave the wizard
Press ENTER to
start the wizard

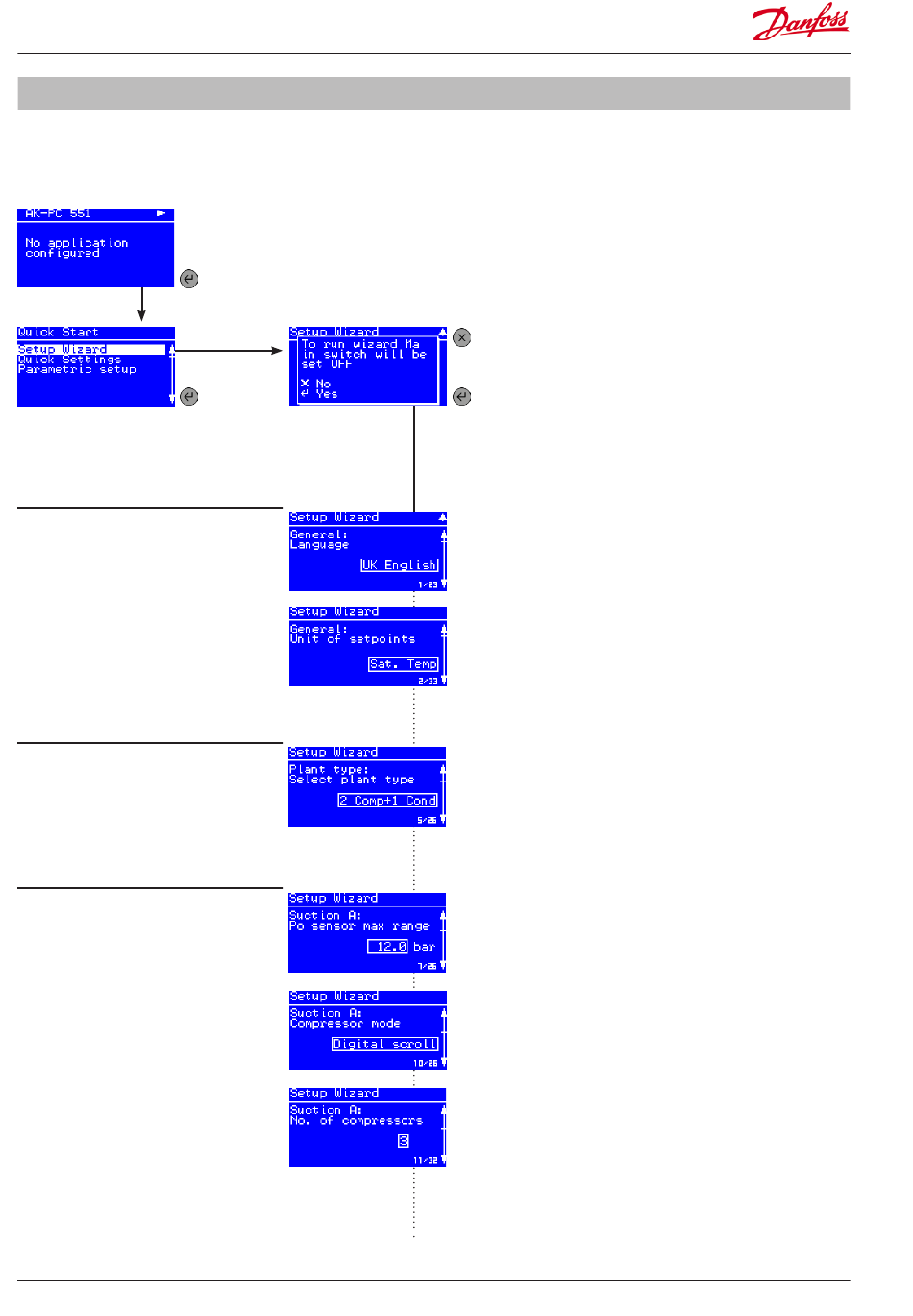

Wizard screens:
Language:
Control setup unit:
Temperature units:
Pressure units:
Select plant type:
Refrigerant type:
Suction A
Po sensor max� range:
Po sensor min� range:
Setpoint:
Compressor mode:
No� of compressors:
Lead compressor size:
Comp� size:
Suction B
Po sensor max� range:
Po sensor min� range:
Setpoint:
Compressor mode:
No� of compressors:
Comp� size:
Settings:
English
Sat. temp
°C
Bar
2 comp + 1 cond
R404A
12.0 bar
-1.0 bar
-15 °C
Digital scroll
3
5 kW
5 kW
12 bar
-1.0 bar
-30 °C
Single step
2
3 kW
AK-PC 551
