Example: Check I/O wiring

Initialize the controllers IO configuration

1. Set main switch in ON position
Go to Main menu -> Start/Stop
Set main switch ON
2. Check correct reading of inputs and outputs in the IO status
menus
Go to Main menu -> IO Configuration -> Analog/Digital inputs
Check correct status of all inputs�
3. Check correct wiring of the outputs via the IO manual
control menus
Go to Main menu -> IO Configuration -> Analog/Digital outputs
Check correct electrical wiring by manually overriding the
outputs�
AK-PC 551 Technical brochure RC8CF102 © Danfoss 08-2014

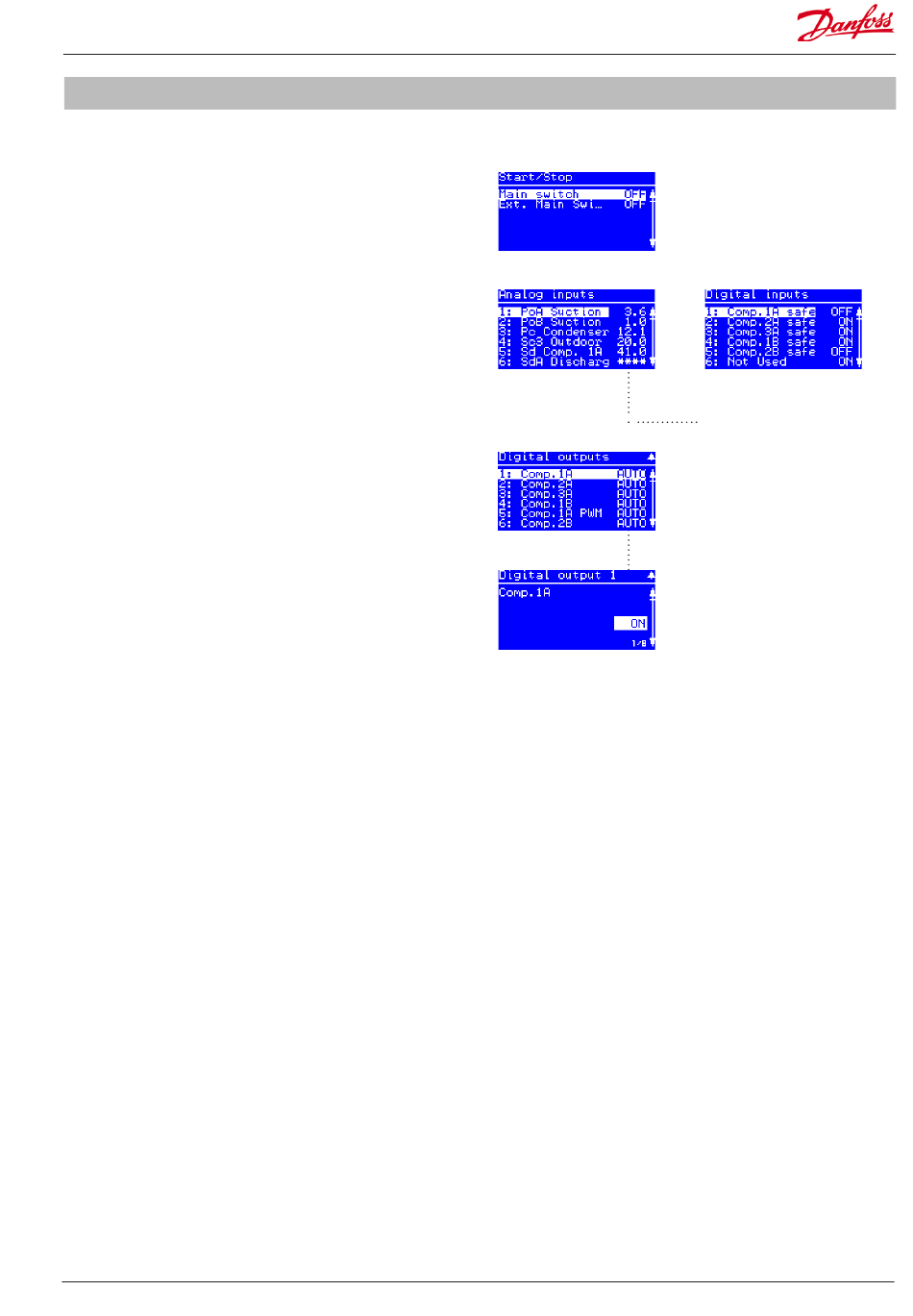

Main switch menu
Analog inputs
Digital outputs
Digital output 1 ON
Digital inputs
The stars "****" indicates that
sensor error is detected or not
intialized (main switch ON).
