Example: Quick configuration
Quick configuration
As an alternative to the wizard, the controller can be set up by
selecting one of the preconfigurations defined in the controller�
Please refer to the application table (on page 18) for a full
description of all selectable preconfigurations and the associated
input and output wiring�
A quick configuration is done in five steps:
1� Select a quick setting
2� Set language
3� Set unit of setpoints
4� Set refrigerant type
5� Set main switch on
1. Select quick setting
Go to Main menu -> Quick setup or select Quick settings at start
up�
In this example is used the preconfiguration number 17:
3CDA + 2CB+FS

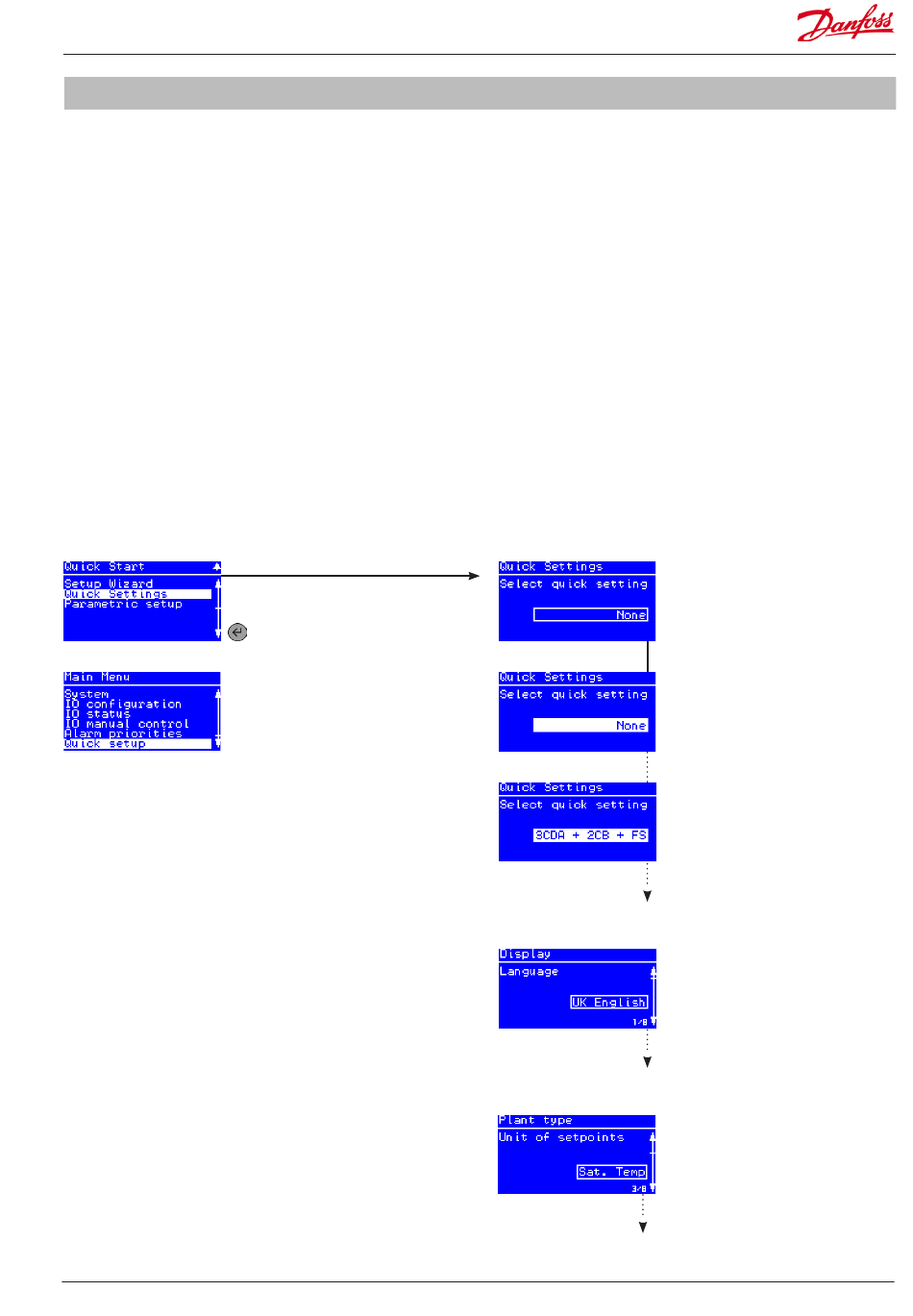

Quick Start menu
The Quick setup can
(after first time setup) be
accessed from the main
menu.
2. Set language
Go to Main menu -> System -> Display
3. Set unit of setpoints
Go to Main menu -> Plant type
AK-PC 551
Press ENTER to select
the quick settings
Technical brochure RC8CF102 © Danfoss 08-2014
Quick setting
No plant type selected
Plant type selected
Language
Unit of setpoints
After pressing ENTER the selection
goes back to "None" and the selected
preconfiguration is loaded into the
controller.
Default is "English"
Default is "Sat. Temp. "
19
