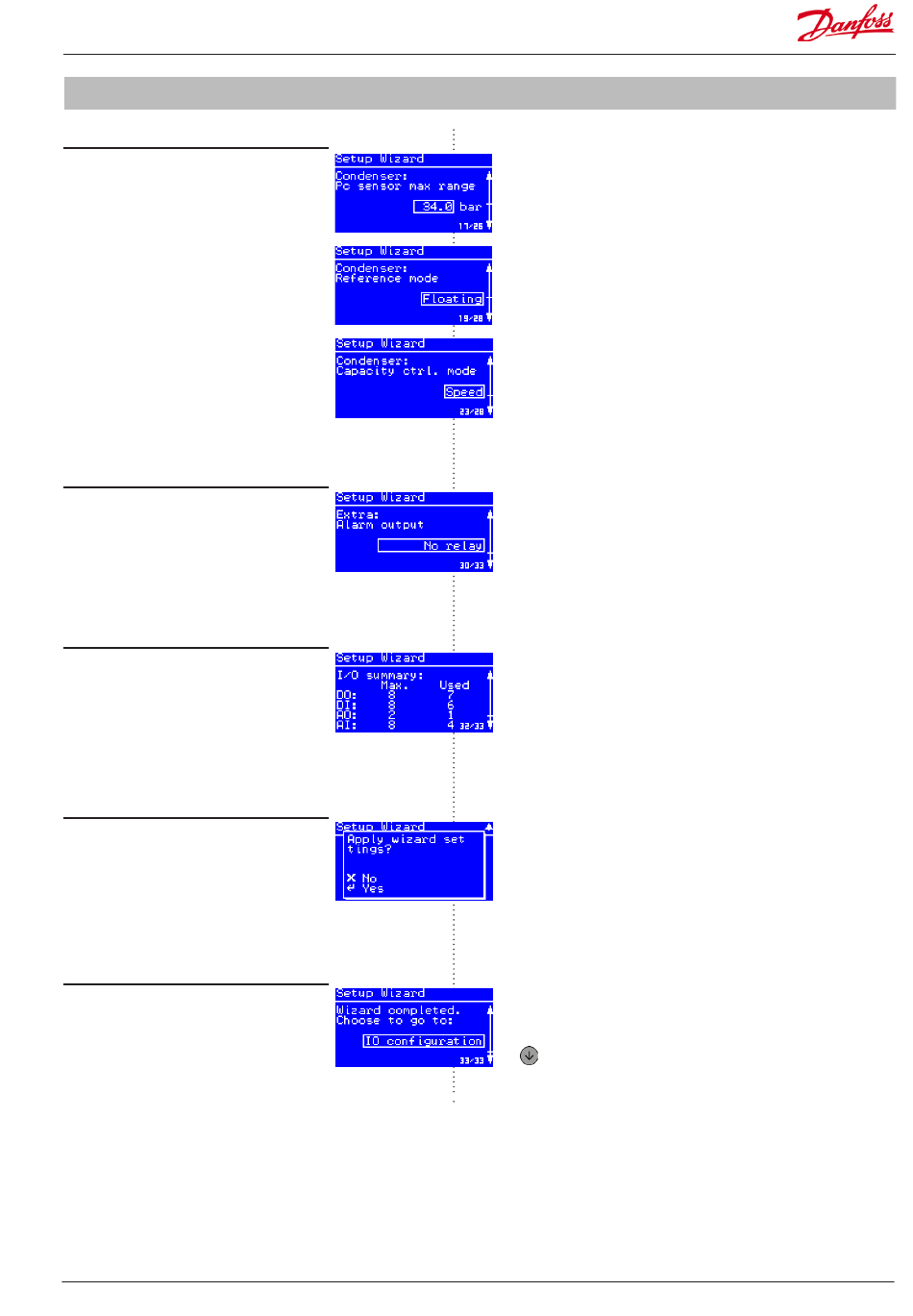

Condenser
Set the condenser control as well as control
sensor and reference settings� The pressure
range of the pressure transmitter can be
set�
Extra
Select whether to use an alarm relay and
Modbus network address�
Summary
Get an overview of the inputs and outputs
generated by the wizard�
Apply wizard settings
Press ENTER to apply the wizard settings
to the controller including automatic
assignment requested inputs and outputs�
Next step
Select which main menu to go to� Press
DOWN to go to the selected menu�
It is recommended to check the IO (input /
output) configuration before starting the
controller�
AK-PC 551
Technical brochure RC8CF102 © Danfoss 08-2014
Pc sensor max� range:
Pc sensor min� range:
Reference mode:
Setpoint:
Min� reference:
Max� reference:
Capacity ctrl� mode:
No� of fans:
VSD Start via DO:
Monitor fan safety:
Alarm output:
Modbus address:
Press DOWN to go to the selected menu and finish the
wizard
34.0 bar
-1.0 bar
Floating
30 °C
15 °C
45 °C
Speed
1
Yes
Common
No relay
100
13
