HD Rack-mount encoding card
RE-1/RE-2/REN-1/REN-2
Quick Start Guide
2021
REV. 1
Thanks for your purchasing! Before using this product, it is recommended that you read the
guide carefully. To ensure your personal safety and avoid physical or electrical damage to the
device, please strictly follow the instructions of this guide or install and use it under the guidance
of professionals. Incorrect electrical connections or physical installation may cause permanent
damage to the device and even threaten personal safety.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kiloview RE-1
Summary of Contents for Kiloview RE-1
- Page 1 HD Rack-mount encoding card RE-1/RE-2/REN-1/REN-2 Quick Start Guide 2021 REV. 1 Thanks for your purchasing! Before using this product, it is recommended that you read the guide carefully. To ensure your personal safety and avoid physical or electrical damage to the device, please strictly follow the instructions of this guide or install and use it under the guidance of professionals.

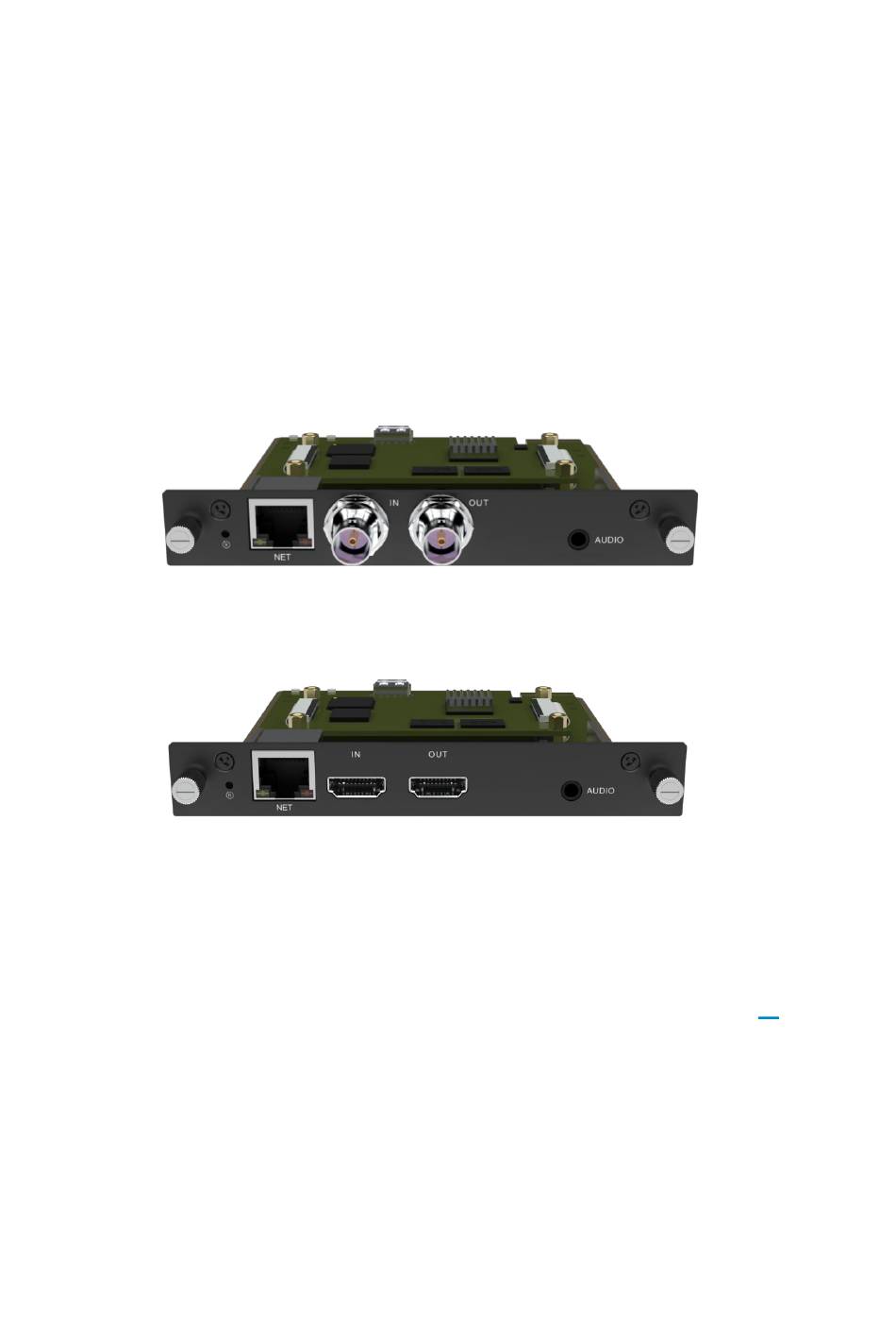

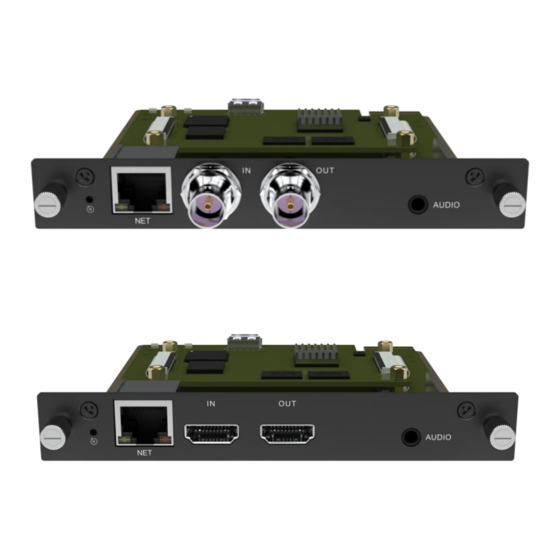

- Page 2 1. Interface description 1.1. RE-1/REN-1 Interface Description 1.Reset button Press and hold for 5 seconds to restore the factory settings 2.Ethernet port 100M self-adaptive Ethernet interface 3.SDI input SDI input interface 4.SDI loop SDI loop interface 5.Audio input 3.5mm audio input interface 1.2.
- Page 3 2. Device installation and Connection 2.1. Card installation and device connection 1) Card installation Align the card assembly with the card slots and push in parallel, then tighten the double-sided screws. 1. Align and push the encoding card in 2. Tighten the left and right screws Device connection Ethernet interface AC input...
- Page 4 2) IP Configuration Configure the IP address by clicking: "Network and Internet Settings-"Network and Sharing Center"-"Ethernet"-"Internet Protocol Version 4"-" Use the IP address below ", then manually enter the IP address with 192.168.1.*(* refers to numbers between 1-255 except 168) and subnet mask, and click "OK". 3) Log in the WEB Console Enter 192.168.1.168 or http://192.168.1.168 in the browser URL to login the web console, and enter the username and password.
- Page 5 Note: If the source is connected, but the screen is still blue or abnormal, please check the input video format or cable connection. Encoding stream inspection A computer that in the same local area network can get the RTSP stream from the encoding card through VLC to check whether the audio and video are normal.
- Page 6 4.2. NDI discovery and connection NDI stream service is enabled by default on the device. When the device and NewTek Studio Monitor (other NDI-enabled software OBS, vMix) on the same subnet, the software can automatically discover the NDI streaming of the device. Select the device name and channel, it will play the NDI streams.
- Page 7 Then, get the RTMP stream URL and Stream Key from the video platforms (take Facebook as an example) and copy them. Click the setting button on the right of "RTMP Push" to enter the RTMP streaming address configuration page. Fill in the address on the platform into the "push point"...
- Page 8 Pressing the RESET button for 5 seconds on the device, and the device will restore to factory settings and it will take about 30s. NOTE: After restoring factory setting, below parameters will be turned to default value: ●Login password will be as admin; ●IP address will be restored as 192.168.1.168, subnet mask will be 255.255.255.0;...
