Layout

The DMX USB PRO case is 1.8" (46mm) in height, 1.6" (40mm)
wide and 2.5" (80mm) deep. It is easily stored on a tabletop next to
the computer to which it is attached, and can slip conveniently into
a laptop carrying case if desired.
LED status display
1
Indicates operational status
USB receptacle
2
Universal Serial Bus data connector for connection to
computer.
XLR 5pin Female
3
DMX512 Output. Connects to your DMX512 network of
fixtures, dimmers, etc.
XLR 5pin Male
4
DMX512 Input. Connects to a DMX512 lighting controller.
6

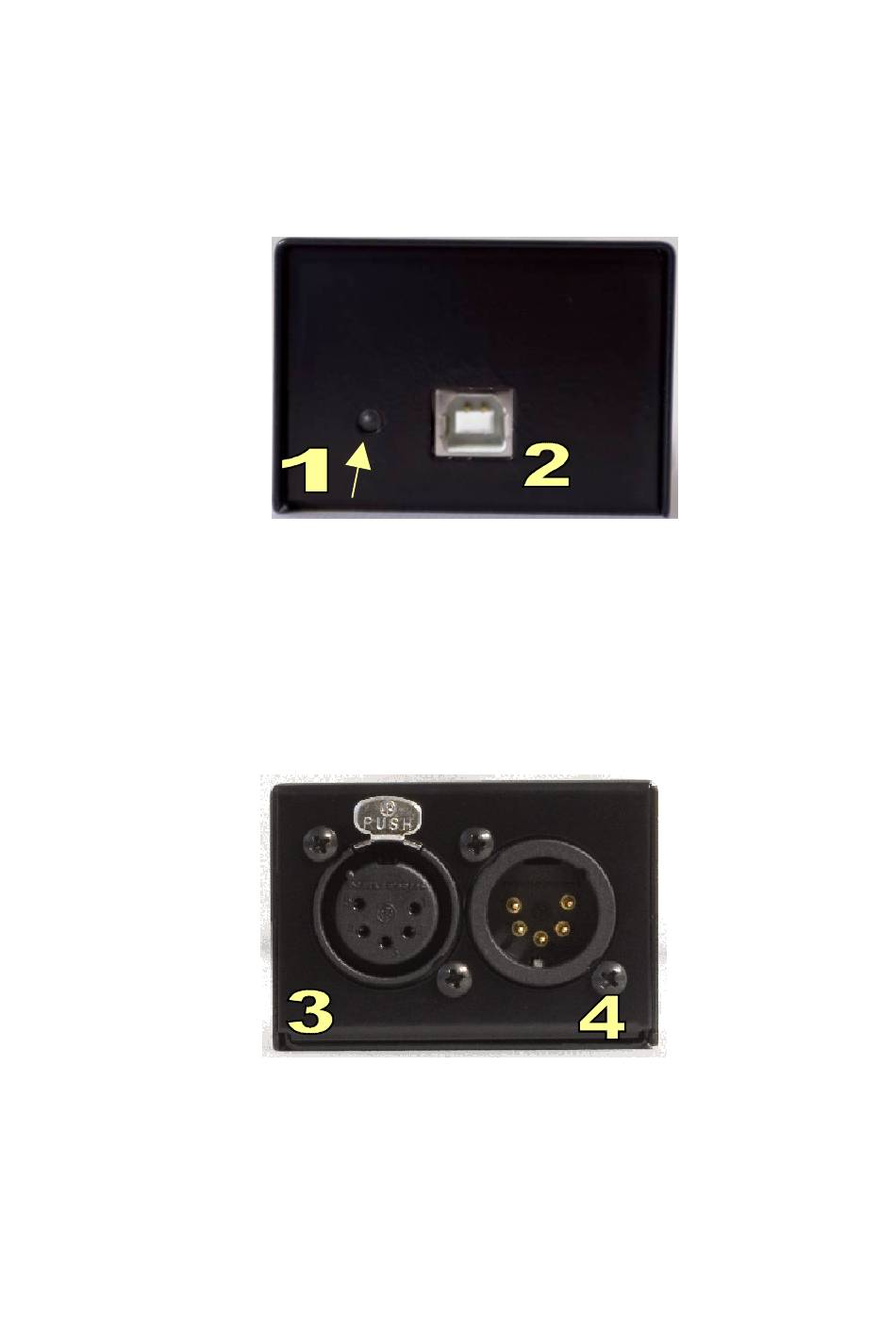

DMX USB PRO front panel
DMX USB PRO back panel
