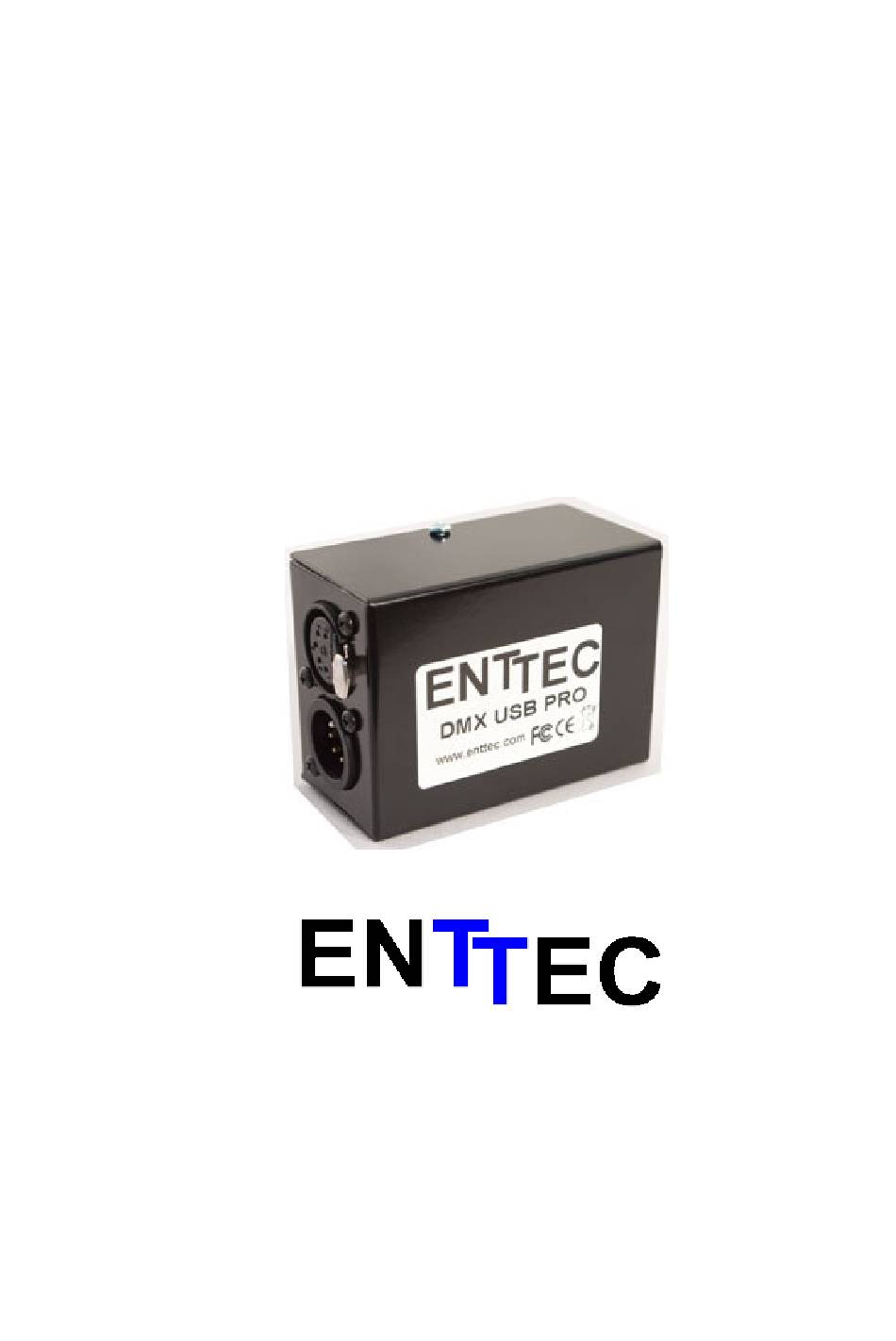

- Page 1 DMX USB PRO User Manual www.enttec.com Firmware V1.43 February 2007...
- Page 2 Package Contents Your DMX USB PRO package should contain these items: DMX USB PRO (Part No. 70304) • Driver for Windows™ software on the Enttec CD-ROM • (Part No. 79106) USB Cable (Part No. 79110) • This user manual (Part No. 79107) •...
-
Page 3: Table Of Contents
Typographic conventions used in this manual ......... 5 Getting to know your DMX USB PRO .......... 5 Features..................5 Layout..................6 Fast track guide to the DMX USB PRO ......... 7 Installing DMX USB PRO .............. 8 Installing Driver................8 Connecting the DMX USB PRO..........10 USB .................. -
Page 4: Warranty
Vic 3101 Australia Getting Support If you require support for the DMX USB PRO or the Driver software, please visit the Support area of our website at www.enttec.com. There you can fill out a support request ticket for prompt assistance with your enquiry. -
Page 5: Typographic Conventions Used In This Manual
Delay Getting to know your DMX USB PRO Thank you for purchasing the DMX USB PRO. At Enttec we are proud of our products and we hope you will enjoy using them as much as we enjoy designing and building them. -
Page 6: Layout

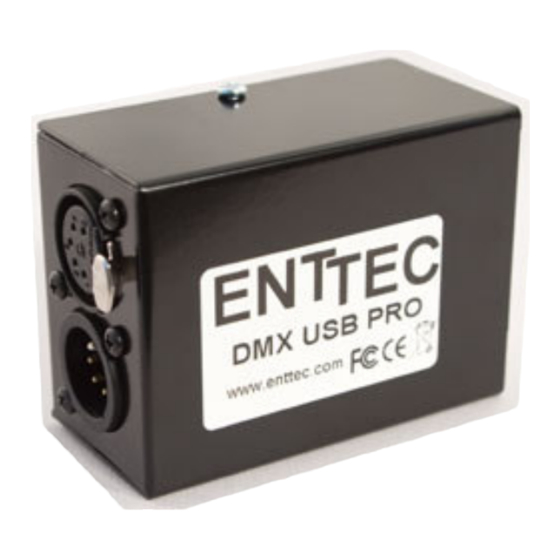

Layout The DMX USB PRO case is 1.8” (46mm) in height, 1.6” (40mm) wide and 2.5” (80mm) deep. It is easily stored on a tabletop next to the computer to which it is attached, and can slip conveniently into a laptop carrying case if desired. -
Page 7: Fast Track Guide To The Dmx Usb Pro
Install and configure the Driver software on your Windows™, Linux™or Mac™ computer. (see Installing Driver on page 9) Connect the DMX USB PRO to your computer and the DMX512 control network. (see Connecting the DMX USB PRO on page 11) Load the control software of your choice onto the computer. -
Page 11: Dmx Out
By this point you have probably plugged the USB cable in to the computer and the DMX USB PRO, so if you have, leave it that way. If not, now is a good time to do so. - Page 14 This will bring up a box where you can change communications settings for the port. If you click on Advanced, this takes you to a window where you can choose a different COM Port number. Select a different port number and click OK.
-
Page 15: Updating The Firmware In The Dmx Usb Pro
(see Firmware version footnote below) file dmx_usb_pro_update.exe. Download it to your desktop, and run it, with your DMX USB PRO plugged in to the USB port while you do so. The screen which results will look like the following illustration. -
Page 16: Using The Dmx Usb Pro
All of these options are available to you with the DMX USB PRO and software you can download or purchase from a variety of sources. See the list at the Enttec website, by clicking on Products, then the DMXUSBPRO, then links. -
Page 17: Troubleshooting The Dmx Usb Pro
Disconnect the DMX USB Pro and reboot your computer. Do not start any programs, and go to step 1 1-Plug in the DMX USB Pro. If the green light stays on, this usually means that the DMX USB Pro is waiting for new firmware. - Page 18 6-If you still have the yellow exclamation marks or the items 1 & 2 do not appear in your device manager, please change/swap the USB cable and/or the USB Port. You can also try installing your DMX USB PRO on another computer, to eliminate all possible causes of the problem.
- Page 19 7-After trying item 6 if the device still does not appear, please open a support ticket.
-
Page 20: Appendix 1 - Connector Pinouts
Appendix 1 - Connector Pinouts DMX OUT Pin 1 Ground Pin 2 Data - Pin 3 Data + Pin 4 Pin 5 DMX IN Pin 1 Ground Pin 2 Data - Pin 3 Data + Pin 4 Pin 5... -
Page 21: Appendix 2 - Fcc Declaration
PO Box 282, Kew, Vic, 3101 Australia declares that the products DMX USB PRO complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 22 different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. In order to maintain compliance with FCC regulations shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and television reception.
-
Page 23: Appendix 3 - Eec Declaration
Appendix 3 - EEC Declaration ENTTEC Pty Ltd PO Box 282, Kew, Vic, 3101 Australia declare under our sole responsibility that out product DMX USB PRO conforms to the requirements of Council Directives 89/336/EEC and 73/23/EEC and therefore complies with the...
