Please make sure the Power pass-through current does not exceed 10 Amps
Features
Strong aluminium chassis with small profile
DMX512 Controllable and RDM Configurable
Can use up to 8 DMX channels, depending on
configuration
Snapshots: 64 fully user recordable slots, 25 dif-
ferent pre-loaded stand-alone colours
16-bit or Smart 8-bit LED dimming
1
ALEPH2 ET DX4
4 colour HIGH POWER LED light BAR
300mm/600mm
Back Panel
Strobe Mode with controllable frequency from DMX
Fan-less smart heat management
Easy addressing and configuration interface
180° Ajustable mounting bracket
Changeable diffuser using holder accessory (sold
separately)
Aleph2 ET DX4 Manual
50952
www.enttec.com
ID: 1552792
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Enttec ALEPH2 ET DX4
Summary of Contents for Enttec ALEPH2 ET DX4
-
Page 1: Back Panel

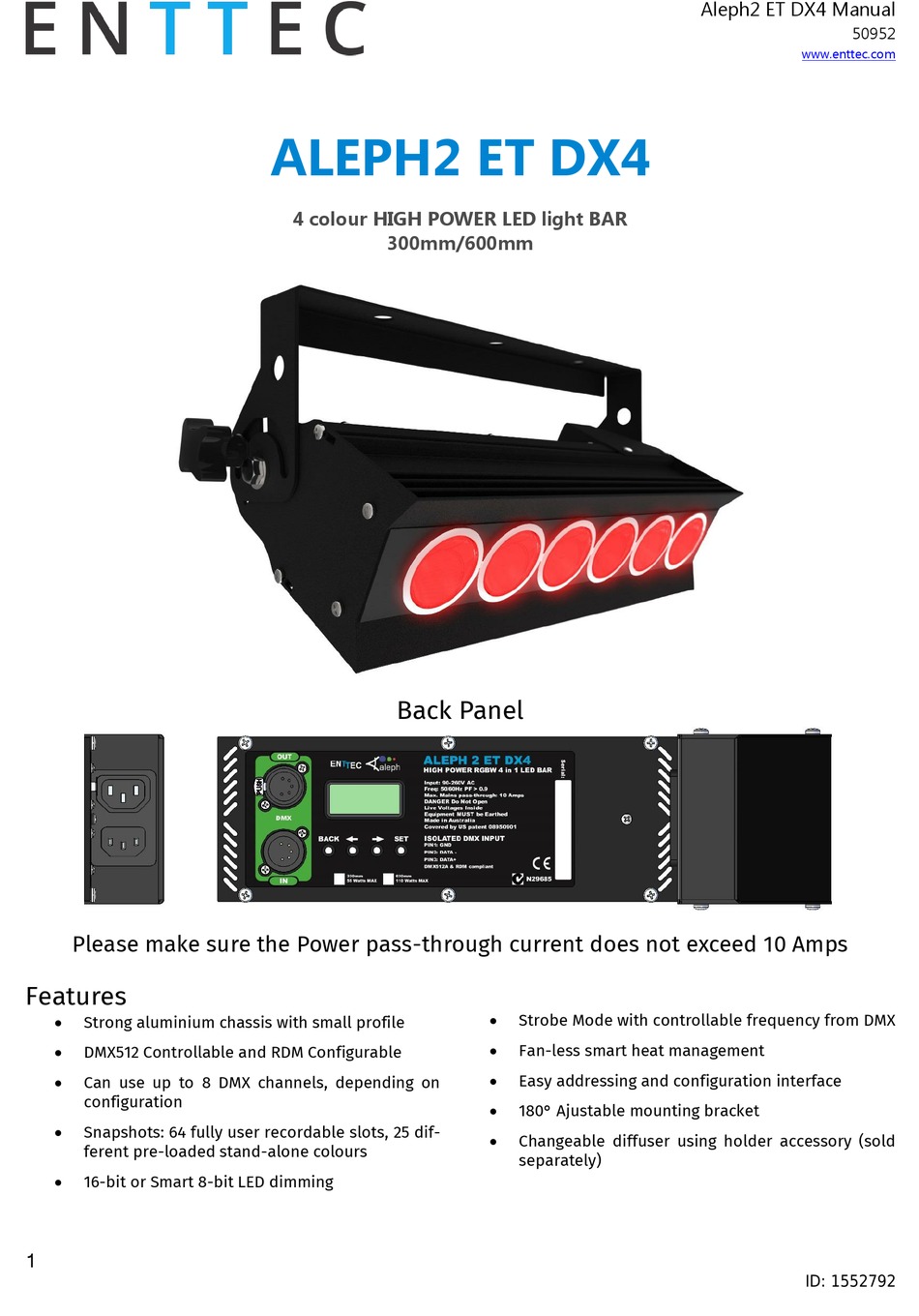

Aleph2 ET DX4 Manual 50952 www.enttec.com ALEPH2 ET DX4 4 colour HIGH POWER LED light BAR 300mm/600mm Back Panel Please make sure the Power pass-through current does not exceed 10 Amps Features Strobe Mode with controllable frequency from DMX ... -
Page 2: Control Panel
It activates the back-light and goes to Main Menu -If pressed while setting a menu: It is important to clean the ALEPH2 ET DX4 to maintain a It takes you to the previous level without changing any- long service life. Make sure the unit is unplugged before thing ←... - Page 3 This extended mode offers a wide variety of output effects, 1 – 8BIT RGBW MODE (4 Channel) turning the ALEPH2 ET DX4 into a very versatile unit, using 7 DMX channels, as described in the following chart. This basic mode will turn the DX4 into a 4 channel light,...
- Page 4 Presets Menu When the light is powered on, it will automatically take pre- The Aleph2 ET DX4 has 64 available slots where the user set 01 as the default power on value, if the Lamp On Mode can record custom colours from DMX. These can later be setting is ON.
-
Page 5: Firmware Version
ENTTEC products, specifications and features are subject to Firmware Update change without notice. Updating the firmware of the ALEPH2 ET DX4 requires an ENTTEC USB Pro or a Pro Mk2 usb interface plugged in to Item 300mm 600mm a PC USB port. Connect the USB PRO to the ET through a Input Voltage 110 –... -
Page 6: Ordering Information
. c o m /r e g i s t e r Dimensions Ordering Information Item ALEPH2 ET DX4 and compatible products can be ordered 300mm 340mm 400mm 100mm from our website or through your ENTTEC dealer using the...
