DMX USB PRO - User Manual
The industry standard in DMX USB control.
Content
Safety ............................................................................................................................................................................................................................ 2
Electrical safety ............................................................................................................................................................................................................................. 2
System Planning and Specification ................................................................................................................................................................................... 2
Protection from Injury During Installation ..................................................................................................................................................................... 2
Installation Safety Guidelines ............................................................................................................................................................................................... 2
Basic Setup ................................................................................................................................................................................................................ 3
LED Status .................................................................................................................................................................................................................. 3
Install Drivers ........................................................................................................................................................................................................... 3
Setting up on Windows............................................................................................................................................................................................................. 3
Setting up on Mac ....................................................................................................................................................................................................................... 4
EMU ................................................................................................................................................................................................................................ 5
Firmware Update .......................................................................................................................................................................................................................... 5
DMX Send Test ............................................................................................................................................................................................................................... 5
PRO-MANAGER [LEGACY] .....................................................................................................................................................................................6
Firmware Update .......................................................................................................................................................................................................................... 6
DMX Send Test ............................................................................................................................................................................................................................... 6
Servicing, Inspection & Maintenance ........................................................................................................................................................... 7
Cleaning ............................................................................................................................................................................................................................................ 7
Package Contents ................................................................................................................................................................................................... 7
Ordering Information ........................................................................................................................................................................................... 7
1
|
ID: 239913
Document Updated: Oct 2021
DMX USB PRO (70304)
Visit the ENTTEC website for the latest version.
USER MANUAL
..
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Enttec DMX USB PRO
Summary of Contents for Enttec DMX USB PRO

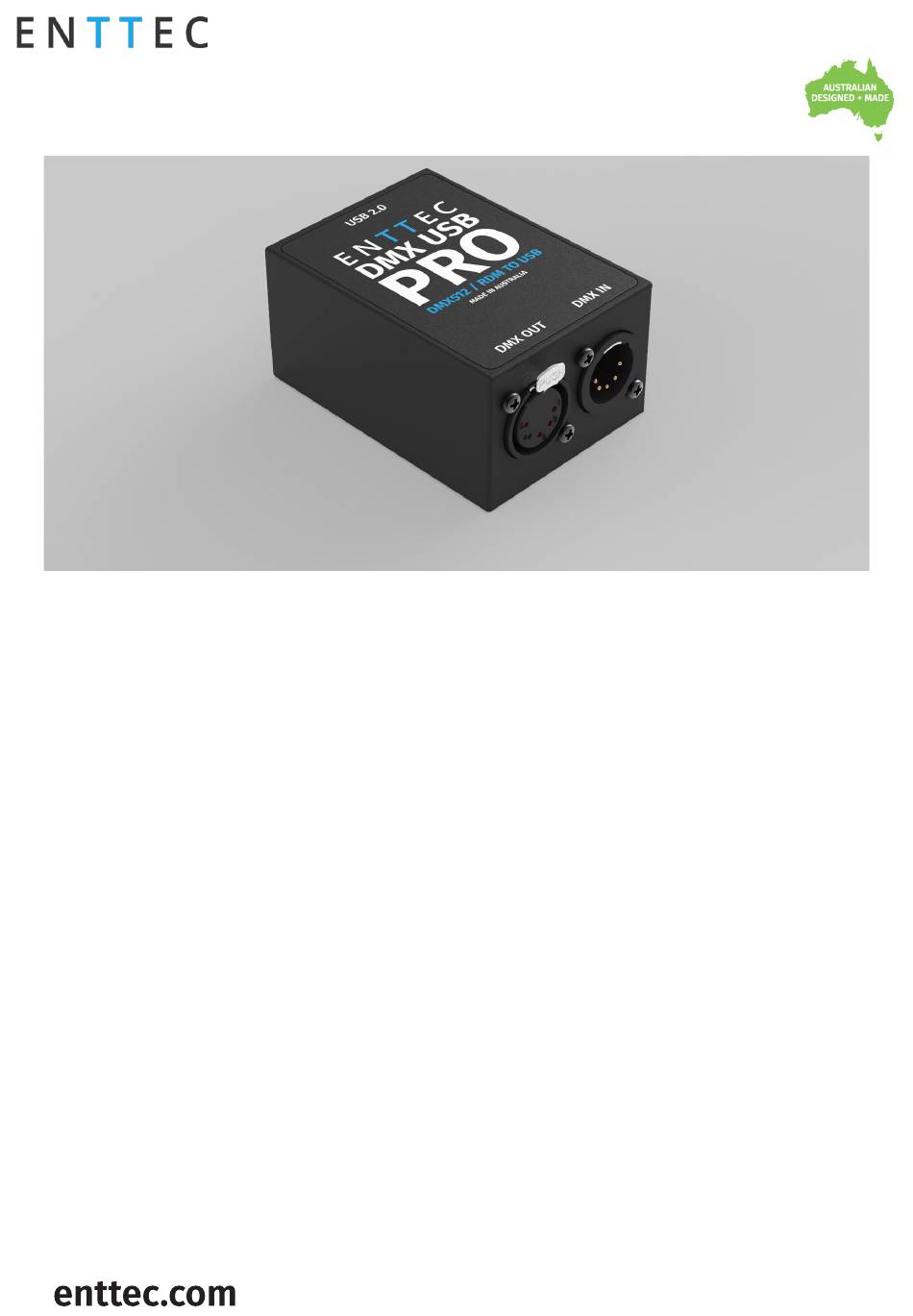

- Page 1 DMX USB PRO (70304) Visit the ENTTEC website for the latest version. DMX USB PRO – User Manual The industry standard in DMX USB control. Content Safety ............................................2 Electrical safety ............................................. 2 System Planning and Specification ....................................2 Protection from Injury During Installation ..................................2 Installation Safety Guidelines .......................................
- Page 2 ENTTEC device. If you are in any doubt about system safety, or you plan to install ENTTEC device in a configuration that is not covered within this guide, contact ENTTEC or your ENTTEC supplier for assistance.
- Page 3 LED Status The DMX USB PRO comes with a green LED indicator located on the left of the USB port. It behaves as following: Blinks once on USB connection: signifies that the DMX USB PRO is powered on and ready. After blinking once, it will remain off, until DMX is sent or received.
- Page 4 Just install PRO-MANAGER to test your USB PRO. Apple's USB drivers are supported by ENTTEC USB PRO from OSX 10.11 onwards. Follow detailed instructions on how to do this, using FAQ/Support links on the ENTTEC DMX USB PRO webpage: www.enttec.com/dmxubspro For driver problems with 3 party Apps, please contact their respective support for more details.
- Page 5 USB logo will light up on the top left to indicate output to DMX USB PRO on EMU. With your fixtures connected to the DMX output of the DMX USB PRO, you will see the desired effect for the value of the channel you change.
- Page 6 Once Pro manager discovers it, select it from the dropdown box to begin communication. Firmware Update The following steps will guide you on how to update the firmware, use this procedure to reset the DMX USB PRO if it ever gets stuck or stops responding. •...
- Page 7 Do not spray device or accessories. The device is an IP20 product. To clean an ENTTEC device, use low-pressure compressed air to remove dust, dirt, and loose particles. If deemed necessary, wipe the device with a damp microfiber cloth.
