Enttec ALEPH MATRIX1 Quick Start

6 4 P I X E L R G B P I X E L P A N E L F O R E F F E C T L I G H T I N G A N D S I G N A G E

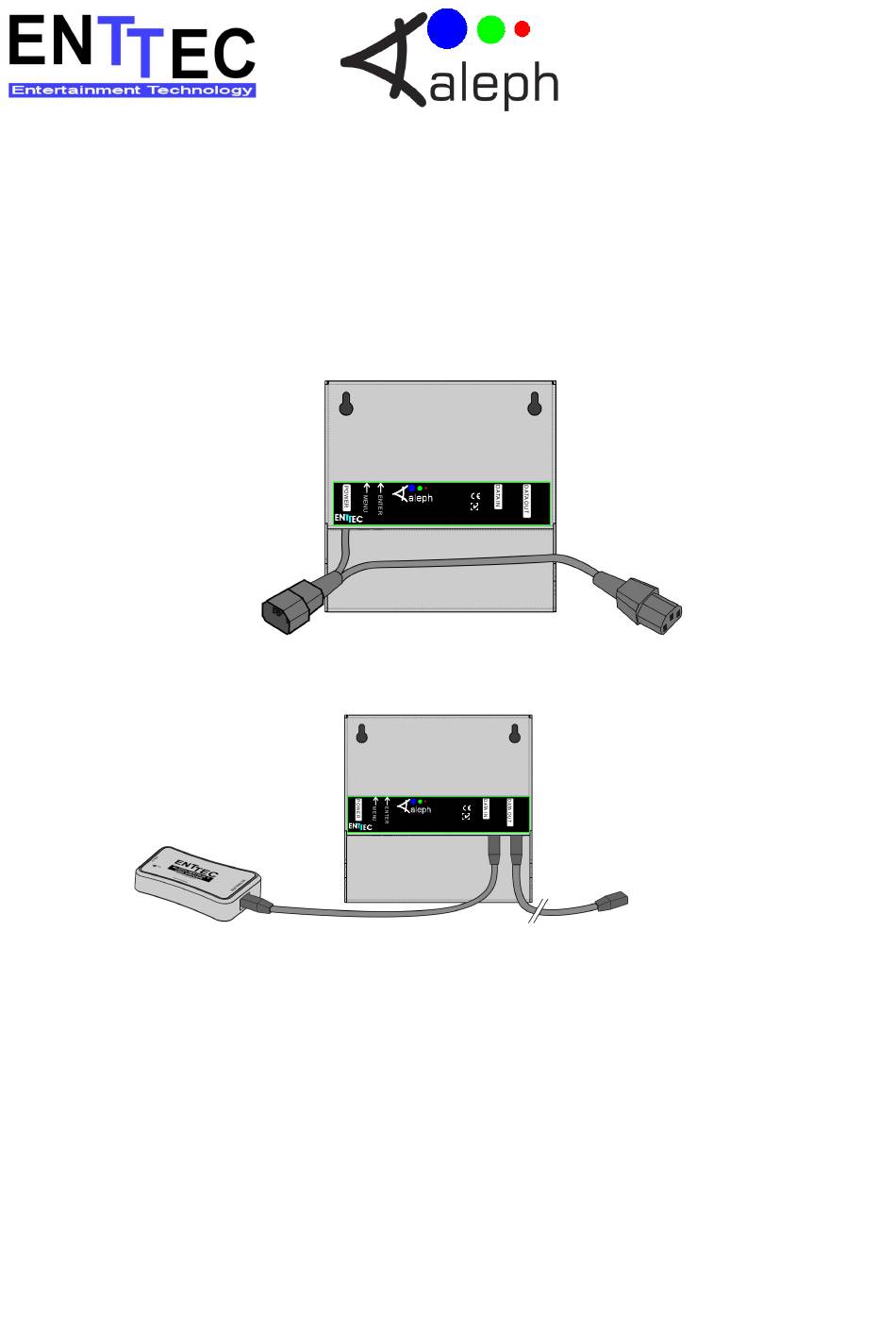

Electrical Connection
Mains input
100 → 240VAC
10Amps MAX
Data Input from Aleph
Matrix USB interface
Addressing
Each Aleph MATRIX1 panel must be given an address to match the handler software settings
(refer to User manual PN:50363).
Press MENU key for 5 seconds until the address display is shown on the panel. EACH Panel
has a 3 digit address. When the number is displayed in green it is in view mode. Pressing
ENTER key for 5 seconds will go into edit mode (red).
ALEPH MATRIX1
Warning: Only ENTTEC authorised CAT5 or CAT 6 cables
must be used to maintain signal quality.
Rating:
100-250V AC
50/60Hz
16 Wat t s
Danger D o Not
MATRIX1
Open. Liv e N29685
Voltages Inside
www.enttec.com made in Australia
R a ting :
1 00 -25 0V A C
5 0/ 6 0H z
1 6 Wa tts
D a ng er D o N ot
MATRIX1
O p en . L ive N 29 68 5
Volta ge s In s id e
www.enttec.com
made in Australia
Quick Start
rev A
Document PN: 50346
Mains output to next
panel. Maximum of
10Amps total load.
240V = 100 panels
120V = 75 panels
Data Output to next
Aleph Matrix Panel
