Enttec DMX USB PRO Quick Start Manual

Box Contents

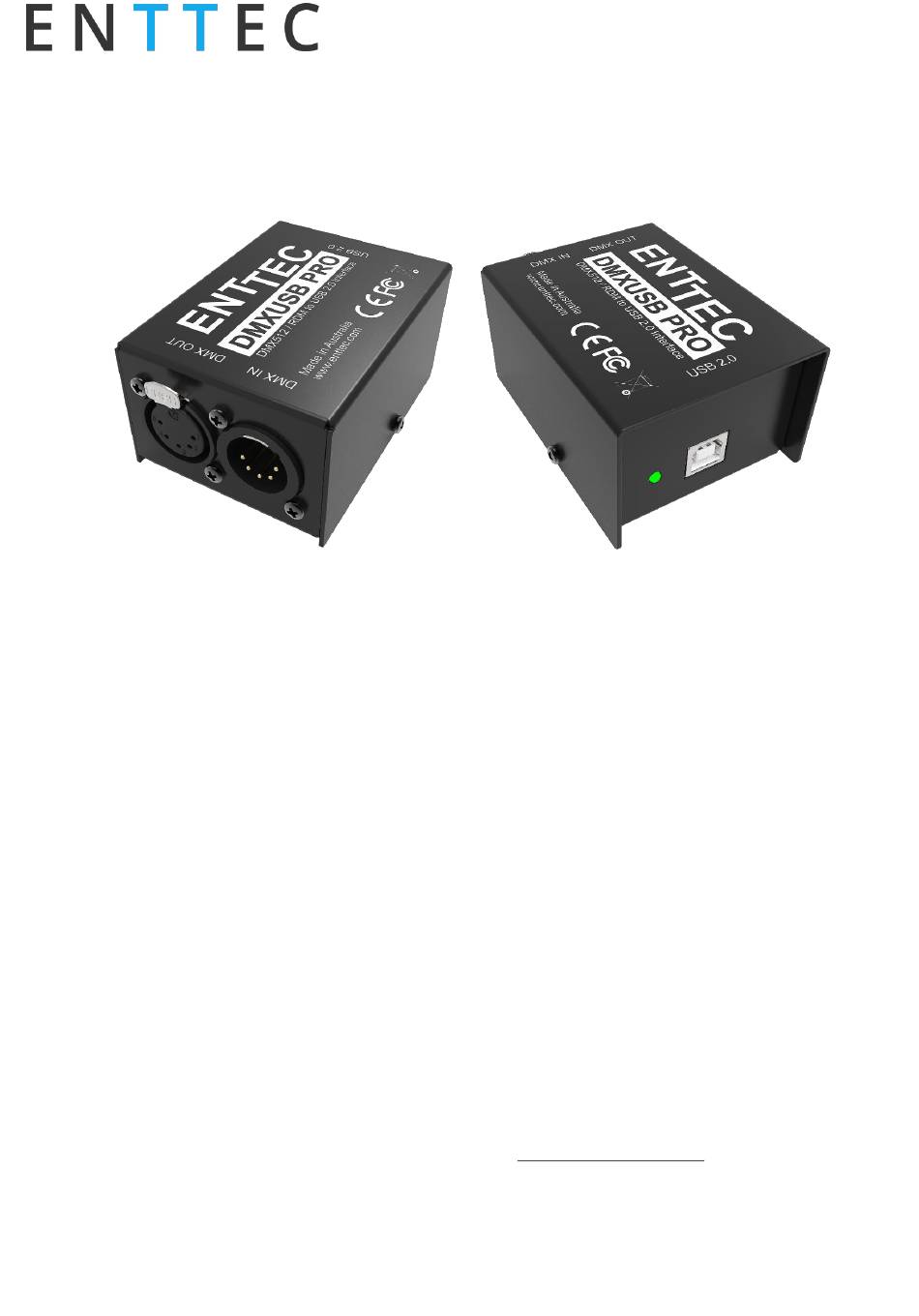

DMX USB PRO (Part No. 70304)
•
• USB Cable (Part No. 79110)
This user manual
•
Features
• Full 512 DMX channel (1 universe) of input or
output
Fully compliant with USITT DMX512-A
•
• Adjustable Frame Rates and empty frames to
accommodate non-standard equipment
• USB 2.0 Support on Windows PC and Mac OSX
1500 V full isolation (data & power lines to
•
protect your computer from surges)
• RDM enabled (ANSI E1.20 compliant)
Drivers for Windows, OSX and Linux (drivers
•
released and maintained by FTDI)
• Output refresh rate configurable from 1 to 40
Fps (Frames per second)
• Compatible with various open-source and
professional lighting control programs.
DMX USB PRO
( P N 7 0 3 0 4 )
Safety
Do not expose the DMX USB PRO to rain or
•
moisture, doing so will void the warranty.
• Do not remove the cover, there are no user
serviceable parts inside.
• This unit is intended for indoor use only.
Wherever possible, use with a DMX Splitter for
•
safety and higher system reliability.
Basic Setup
Install and configure the Driver software on
•
your Windows™, Linux™ or Mac™ computer.
Methods can vary between Operating systems,
but the end result is the same: once installed
correctly, the drivers will allow software to
communicate with the DMX USB PRO.
• Connect the DMX USB PRO to your computer
(usb) and the DMX512 control network (DMX
cable).
Load the control software of your choice onto
•
the computer. You can choose between open-
source (free) and professional (paid) programs.
More information
enttec.com/dmxubspro
• Run the software and create your show.
For troubleshooting and testing DMX USB PRO,
•
install and run PRO-Manager.
Quick Start Manual
MANUAL-USBPRO
