Enttec DATAGATE MK2 Quick Start Manual

Box Contents

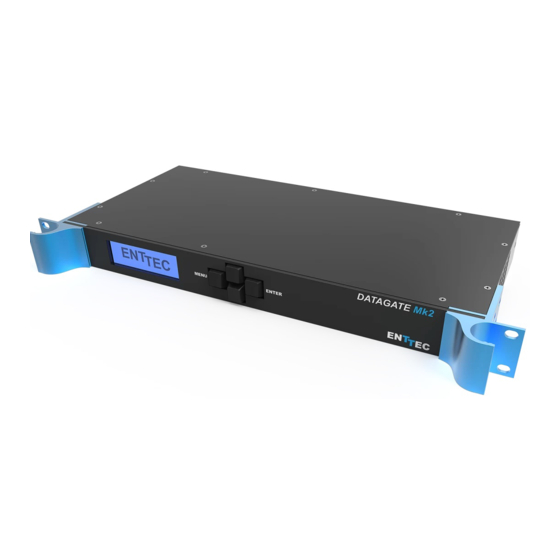

• Datagate Mk2 (pn: 70044)
Straight connect Ethernet lead (pn:79102)
•
IEC power cord (country dependent plug)
•
Features
8 DMX ports isolated up to 1500V
•
• Gigabit Ethernet Connection
LCD display provides network and status
•
information
• DMX refresh rate configurable for each DMX port
(1Hz to 44Hz) default is 35Hz.
Break time/MAB configurable for each DMX port
•
All configurations are made through web browser
•
and saved as Profiles.
Graphical User Interface for creating and editing
•
ports is flow-chart oriented and documents data
flow as you configure it.
OSC support
•
• DMX Generator and Stream snapshot feature
(web)
Supports numerous protocols for DMX over
•
Ethernet:
◦ ESP
Art-Net
◦
◦ KiNet (input only)
sACN
◦
Note: RS232 is not supported by Datagate RevC Mk2 family
devices manufactured after April 2020.
1
DATAGATE MK2
Additional Features
• Stream Auditor: A status monitoring web-screen that
includes data throughput statistics, un-matched DMX
over Ethernet data streams (streams that are not
included in the current profile), and other information
for troubleshooting, available through web page
Merging:
•
◦ HTP
LTP
◦
◦ A/B Priority
▪ Priority merging gives priority to a particu-
lar source for as long as the DataGate MK2's
is receiving data from it. If the DataGate
loses connection it will maintain the previ-
ous frame and begin its count to the user
defined fall over time. If this is reached, the
output will be switched to the secondary
source. If data returns before the user de-
fined time is reached the switch over will
not happen and the first source will con-
tinue to be used
RDM Tools (refer to RDM tool section description)
•
RDM Sensors on enabled fixtures (refer to RDM sensors
•
section description)
Quick Start Manual
Datagate MK2 70044
For latest version visit:
www.enttec.com
ID: 2691
