Table of Contents

Back Panel

Box Contents

ENTTEC PHERO 33
Mounting brackets (pre-attached)
This user manual
Features
33 independently controllable RGB Pixels
Powercon and Ethercon for touring
Flexible, light and slick design
In-built Power Supply
Compatible with ENTTEC Pixelator and Pixie
driver
Plink data bus allows to daisy-chain up to 10
units
Standard Cat6 wiring allows up to 300m
distances
1
Mains power through Powercon connectors for
convenient installation
50,000+ hours expected LED life
Up to 99 DMX channels through Pixelator
Over voltage input protection
Safety
Mains voltages inside, please never intend to open
it when mains connected
Do not expose the ENTTEC Phero 33 to rain or
moisture, doing this will void the warranty
Do not remove the cover, there are no serviceable
parts inside
This unit is intended for indoor use only
Ensure proper earth connections
Phero 33 Manual
(50977)
For latest version visit:
www.enttec.com
ID: 226394

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Phero 33 and is the answer not in the manual?

Questions and answers

Related Manuals for Enttec Phero 33

Summary of Contents for Enttec Phero 33

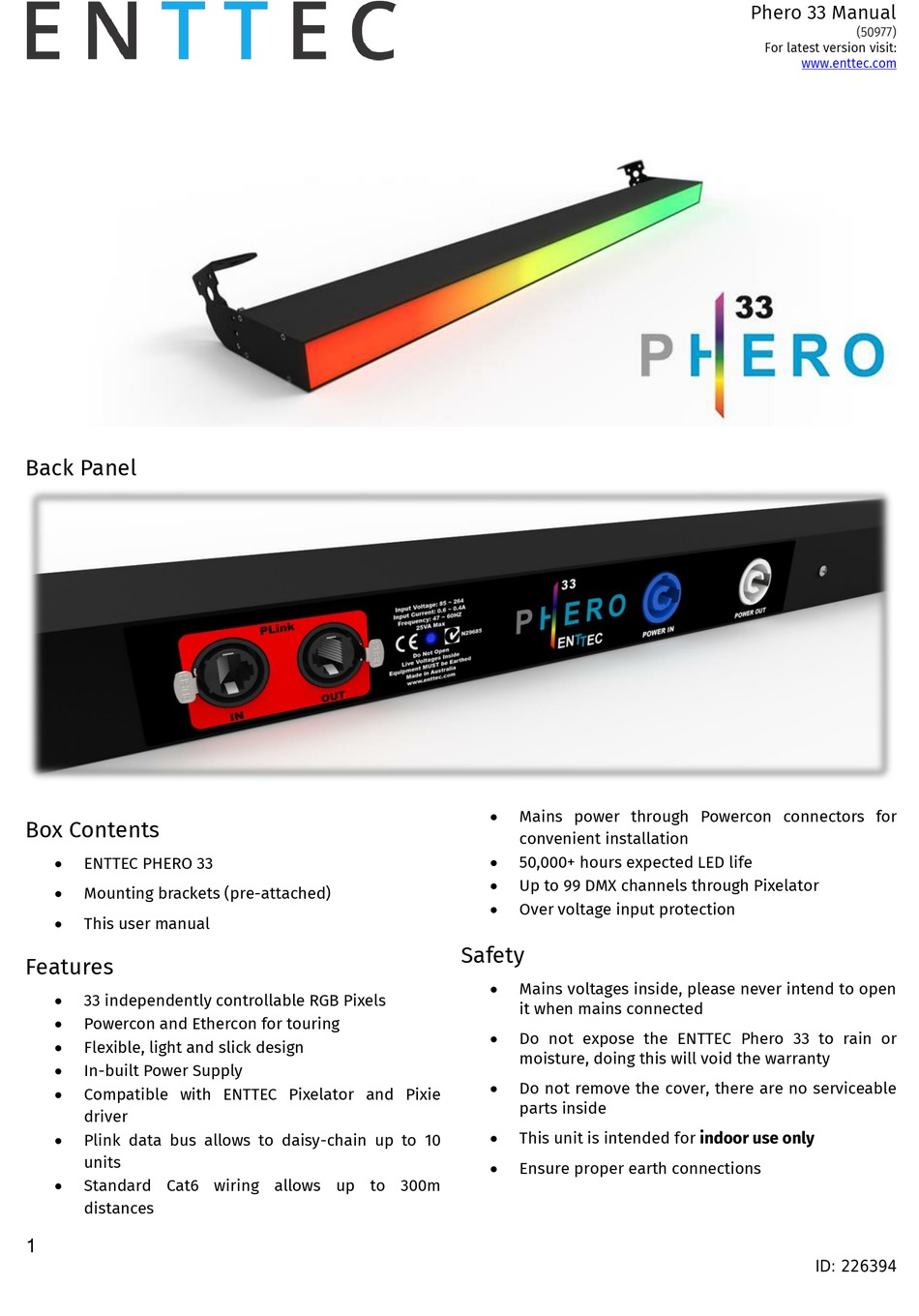

  • Page 1: Back Panel

    33 independently controllable RGB Pixels it when mains connected  Powercon and Ethercon for touring  Do not expose the ENTTEC Phero 33 to rain or  Flexible, light and slick design moisture, doing this will void the warranty ...

  • Page 2: Basic Setup

    For latest version visit: www.enttec.com Basic Setup Typical Installation with Pixie Driver  Connect the ENTTEC Phero 33 to a Plink enabled device such as ENTTEC Pixelator using a cat5/6 cable  Power up the unit using the blue powercon connector.

  • Page 3: Physical Dimensions

    Mounting bracket with Standard Truss clamp DMX Addressing Each Phero 33 contains 33 RGB Pixels, which means 99 DMX slots. By default, the first unit connected to the controller will auto address to DMX channel 1 to 90. Where CH1=Pixel1 Red, CH2=Pixel1 Green, CH3=Pixel1 Blue, CH4=Pixel2 Red and so on.

  • Page 4: Mains Wiring

    Connectors 2x Ethercon, 1x Blue Powercon, Mains Wiring 1x Grey Powercon A maximum of 10 Phero 33 can be powered in Daisy- Ordering Information Chain. Please follow this table to select the best circuit breaker to protect your installation: Phero 33 and compatible products can be ordered as...
  • Page 5 Phero 33 Manual (50977) For latest version visit: www.enttec.com ANNEX 1: Phero33 Recommended DMX Patch/Addressing Table (Daisy-Chain) PHERO DAISY-CHAIN DMX PATCH/ADDRESSING TABLE Pixel Ph33 Ph33 Ph33 Ph33 Ph33 Ph33 Ph33 Ph33 Ph33 Ph33 Color # 10 Green Blue Green Blue...
  • Page 6 Phero 33 Manual (50977) For latest version visit: www.enttec.com Green Blue Green Blue Green Blue Green Blue Green Blue Green Blue Green Blue Green Blue Green Blue Green Blue Green Blue Green Blue Green Blue Green Blue Green Blue Green...
