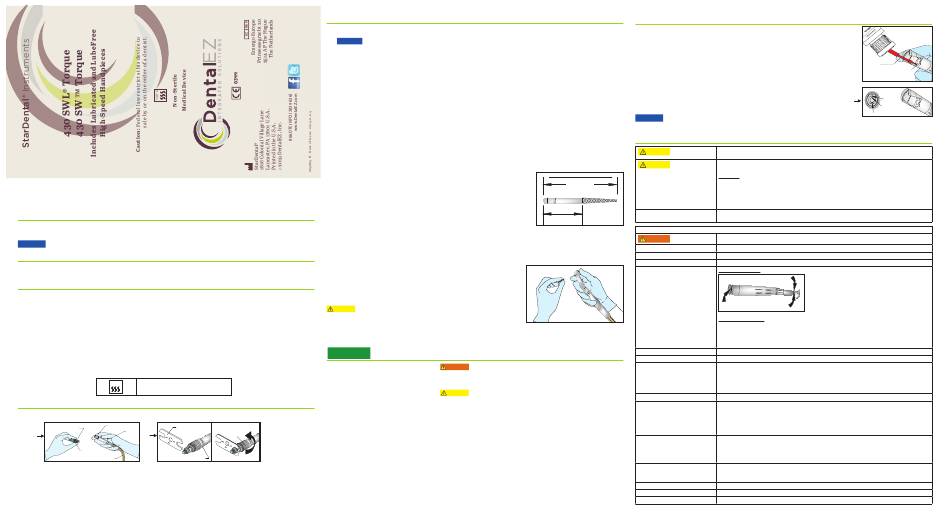

DentalEZ StarDental 430 SWL Torque Quick Start Manual

DentalEZ StarDental 430 SWL Torque Quick Start Manual

Lubricated and lubefree high-speed handpieces

Advertisement

Quick Links

DO NOT USE FOR ORAL SURGERY
BEFORE OPERATING THE HANDPIECE, CAREFULLY READ AND FOLLOW ALL OF THESE INSTRUCTIONS.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE AND OBSERVE ALL WARNINGS AND CAUTIONS.
Indications For Use
The 430 Torque High Speed Handpieces are used by trained dental professionals for a variety of procedures including but not limited to caries
and amalgam removal, restorative work and crown preparations.
Any serious incident occurring from the use of this device should be reported to StarDental immediately. If incident occurred in a EU
NOTICE
Member State the competent authority must be notified.
Contents
• Specifications
• Safety Instructions
• Cleaning & Sterilization
• Handpiece Installation
• Lubrication - For Lubricated
• Troubleshooting
• Handpiece Operation
Handpieces ONLY
• Turbine Replacement

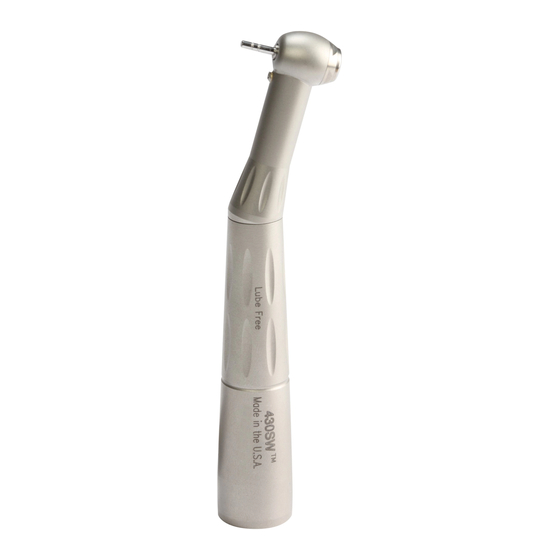

Specifications
®
430 SWL
Torque and 430 SW
Torque High-Speed Handpieces are designed to fit a StarDental
handpiece connects to both StarDental and standard 4/6-Line ISO fiber optic (F.O.) tubing. The 430 SW Torque connects to standard 4 hole tubing.
430 SW Torque: Type: High speed with a swivel and replaceable
430 SWL Torque: Type: High speed fiber optic with a swivel and replace-
able autochuck turbine (Swivel sold separately.)
Operating Air Pressure: 38 to 43 psi
Operating Air Pressure: 38 to 43 psi
Air Consumption: 1.9 SCFM @ 43 psi
Air Consumption: 1.9 SCFM @ 43 psi
Water Consumption: 88 ml/min @ 29 psi
Water Consumption: 88 ml/min @ 29 psi
No Load Speed: 430,000 rpm @ 43 PSI
No Load Speed: 430,000 rpm @ 43 PSI
Connection: 360° quick-disconnect swivel with 4-Line and
6-Pin ISO configuration and fiber optics
Stall Torque: .26 oz-in @ 43 PSI
Stall Torque: .26 oz-in @ 43 PSI
Average Power: 20 watts
Average Power: 20 watts
(Max Power > 25 watts @ 43 PSI)
Weight: 49g
135°C
Sterilizable up to 135°C
Handpiece Installation
Note: Filter air and water supplies, recommended filtration: 25 microns. Soften and deionize water. Be sure filters operate efficiently.
ISO Connector
Wrench
Swivel
Tubing
1,2,3,&4
Coupler
5
Bearing
Assembly
Tubing
Tubing Coupler
1. Grasp the swivel in front of the bearing assembly between the thumb and index finger as shown.
2. Slide tubing coupler until the end of the tubing connector is exposed; hold in hand as shown with fingers securing the tubing.
3. Align and insert swivel tubes into the tubing connector holes.
4. While applying slight pressure to hold fittings in the connector holes, slide coupler forward and engage threads. Continue threading coupler clockwise
until hand tight against the swivel.
5. Using the wrench as shown, tighten the swivel to the tubing coupler until snug. Be sure to turn the tubing coupler, not the swivel. DO NOT OVER TIGHTEN.
6. Connect handpiece to swivel until it clicks.
Note: This joint loosens over time, resulting in a loss of power. Check for tightness periodically.
Handpiece Operation
Air and Water Adjustment
1.
Air Pressure –
NOTICE
To prevent premature damage to the turbine, do not exceed 43 psi when using a HiFlo swivel.
Use an air pressure gauge, StarDental Part #262591 for 4/6-Line: set pressure to:
38-43 psi - 430 SWL Torque handpiece & 430 SW Torque handpiece
If a gauge is not available, set pressure at delivery head allowing 1 psi pressure loss for every foot of tubing.
(See Specifications for recommended operational pressure.)
For example, if you want to operate at 38 psi and you are using either 5 feet or 12 feet of tubing, then the pressure should be set at the delivery head
to compensate for the air pressure losses.
2.
Water Pressure – Adjust water volume at the delivery head to obtain a satisfactory spray mist.
3.
Non-Star 6-pin Fiber Optic System:
If the handpiece is connected to a non-StarDental 6-pin fiber optic (F.O.) system, consult your operator's manual of F.O. system for correct voltage.
Non-StarDental F.O. systems must have a rated amperage output between 1.5 Amps dc and .73 Amps dc at 3.1 Volts DC. Use StarDental Part # 262962
bulb for non-StarDental F.O. systems that meet these requirements. Adjust the voltage per instructions with the 3.1 Volts DC bulb.
If the non-StarDental 6-pin F.O. system has a rated amperage output of at least 1.5 Amps dc at 3.3 Volts DC, then the StarDental Part #262522 bulb may
be used. Adjust the voltage per instructions with the 3.3 Volts DC bulb.
Use standard length concentric diamond and carbide burs with .0628" nominal diameter friction grip
shanks designed for high speed handpieces. Every StarDental Diamond Bur meets specifications below
for recommended lengths. Contact your dealer for a complete list of StarDental Diamond Burs. StarDental
autochuck turbines have the following bur requirements:
Use only burs with hardened, tempered steel shanks or carbide shanks. Every StarDental Bur maintains
required hardness. Before use, verify concentric rotation by operating handpiece outside the oral cavity
in a safe place.
Note: Do not use burs that produce excessive noise or do not run concentrically. Do not use burs that are
modified, eccentrically designed, or have bent or 'soft' (non-heat treated) shanks.
Autochuck Bur Changing System
1. Insert bur into autochuck until resistance is felt.
2. Depress autochuck end cap button and continue to feed-in bur until it clicks and stops.
3. Release end cap button. Now, apply light inward force to the dental bur. This will help set the chucking mechanism for initial start up. (Always tug on bur
after it has been installed to confirm that it is secured).
• Replacement Part Numbers
& Accessories
1. To remove, grasp handpiece firmly so your thumb touches the end cap and push until a slight 'click'
• Warranty
is noticed.
2. Pull bur straight out.
3. Release end cap.
®
360° quick disconnect swivel. The 430 SWL Torque
CAUTION
Never depress the autochuck end cap button or rest the end cap against any part of the
oral anatomy during handpiece operation. Depressing the end cap while a bur is rotating can activate
autochuck turbine (Swivel sold separately.)
the chuck mechanism and result in end cap heat-up and/or loss of bur retention.
Connection: 360° quick-disconnect swivel with 4-Line ISO
SAFETY
configuration or 2/3-Line ISO configuration
INSTRUCTIONS
(Max Power > 25 watts @ 43 PSI)
To minimize risk of serious injury:
Weight: 47g
• Always insert bur the full length of the chuck. If you attempt to extend it from the chuck, the bur may dislodge during use and possibly injure you or
your patient.
To minimize risk of injury or damage to handpiece or auto chuck:
• Replace turbine when handpiece does not run at full speed or runs noisily.
• Use only recommended burs. An improperly clamped or bent bur, usually indicated by sudden high-pitched sound or increased vibration during
use, may dislodge injuring you or your patient.
• Follow these safety instructions:
Turn tubing coupler while
holding swivel in
- Confirm bur is secure by tugging on it after it is loaded
place
- Verify concentric rotation by operating handpiece outside oral cavity. Do not use if it does not run concentrically or runs with excessive noise.
- Do not operate handpiece without an installed bur.
- Always use burs with overall length of less than 24mm. Shank length must be at least 7.3 mm. This includes most short shank burs. (see Handpiece
Operation)
- When using autochuck, never depress end cap while bur is rotating.
5 feet tubing
38 psi + 5 psi = 43 psi
or 12 feet tubing
38 psi + 12 psi = 50 psi
Autochuck Bur Changing System
Maximum
24.0 mm
OVERALL LENGTH
Minimum
7.3 mm
Shank Length
WARNING
CAUTION
Lubrication
- For Lubricated Handpieces ONLY
LUBRICATED Ceramic Bearing Turbine:
For maximum turbine life do not exceed recommended pressure.
Note: Lubricate handpiece daily with DentaLube
II
, StarDental Part #262539, and prior to each sterilization
procedure.
1. Disconnect handpiece.
2. Assemble the conical red tip applicator, StarDental Part #202954, into the DentaLube
II
bottle cap.
3. Find drive air tube at rear of handpiece and place three drops of DentaLube
II
.
(See illustrations for more detail).
Note: Never operate handpiece without bur in place.
4. With bur in place connect handpiece to tubing, operate for 20 seconds to expel excess lubricant.
430 SWL Torque and 430 SW Torque
LubeFree Handpieces Contain A LubeFree Ceramic Bearing Turbine -
NOTICE
This turbine uses a sophisticated ceramic bearing design and, therefore, requires no lubrication. To ensure the life of, and to prevent
damage to, this turbine - do not lubricate it. If it gets lubricated even once, it MUST then continue to be lubricated for the rest of its life.
Cleaning & Sterilization
It is the responsibility of the user to use only FDA compliant sterilizing equipment and accessories that are
CAUTION
capable of meeting the manufacturers recommendations below.
Do not exceed 135°C
CAUTION
To prevent damage to the bur, use an autoclavable bur block.
Do not use:
• dry heat sterilizer
• cold sterilizers
• chemical disinfectors
• immersion techniques
• surface wipes
• hand soaps
• sterilizer bags
•surface sprays
containing disinfectants
Limits On Reprocessing
Repeated processing has minimal effect on this handpiece. End of life is normally determined by wear and
damage due to use.
INSTRUCTIONS
WARNING
Handpieces and burs must be cleaned and sterilized before first use and after each patient.
Containment and transportation:
It is recommended that handpieces are reprocessed as soon as is reasonably practical following use.
Preparation for cleaning:
Remove handpiece from swivel. No further disassembly is required.
Cleaning - Automated:
Washer-disinfectors are not recommended.
Cleaning - Manual:
Cleaning Handpieces:
Remove debris from external surfaces using a small brush and
Optical Surface
isopropyl alcohol. Clean internal surfaces of the handpiece at
(1 of 2)
the swivel connection location using a small brush and
isopropyl alcohol. Optical surfaces can be cleaned with a
cotton swab soaked in isopropyl alcohol. Dry thoroughly.
Internal Surface
Repeat after each patient.
Cleaning Diamond Burs:
• After each use, clean the diamond bur by running it against a wet diamond cleaning stone.
• To mechanically clean, the diamond bur should be held in a solution of either enzymatic
presoak, Sparkl® Dental Instrument Cleaner StarDental Part# 205472, or water.
• Rinse the bur thoroughly and allow it to dry, then Sterilize – See Sterilization.
Lubrication:
Lubricate - For Lubricated Handpieces ONLY - See 'Lubrication' instruction section
Disinfection:
Use steam sterilization exclusively for complete sterility as outlined below.
Maintenance:
Use Junk-Out High Speed Chuck Cleaner Kit (263790) once a week prior to sterilization to ensure
optimum working condition of the chuck. Instructions for cleaning the chuck are included in the Junk-Out kit.
See Turbine Replacement section of this manual for additional information.
Handpiece should be routinely maintained, checked for corrosion, worn parts, etc. and should be replaced
on an as needed basis.
Inspection & function testing:
See Handpiece Operation or Troubleshooting sections of this manual.
Packaging:
Single: A standard sterilization packaging material must be used. Ensure that the pack is large enough to
contain the handpiece without stressing the seals.
In sets: Handpieces may be loaded into dedicated instrument trays or general purpose sterilization trays.
Ensure that cutting edges are protected and do not exceed the tray manufacturer's limit per tray. Wrap the
trays using appropriate packaging materials and methods.
Wrapped Instrument
Gravity Type Autoclave:
Pre-Vacuum Autoclave:
Sterilization:
• Minimum of 15 minutes at 132° C
• Minimum of 30 minutes at 121° C
Do not exceed 135° C
Drying:
Dry the handpiece for 30 minutes minimum using the sterilization dry cycle and allow the handpiece
to cool to room temperature in bag prior to use. If moisture is present, increase your sterilizer dry cycle
appropriately.
Storage:
Store in bag after sterilization until ready to use.
Additional information:
Do not exceed the sterilizer manufacturer's guidelines for load capacity.
Manufacturer contact:
See front or back panels of this manual.
Red Tip
Applicator
Drive Air Tube
Coolant
Air
Water
Drive Air
• ultrasonic cleaners
• surgical milk
• detergents
• Minimum of 4 minutes at 132° C
