Step
4
5
6
Amersham ImageQuant 800 User Manual 29383813 AA
Action

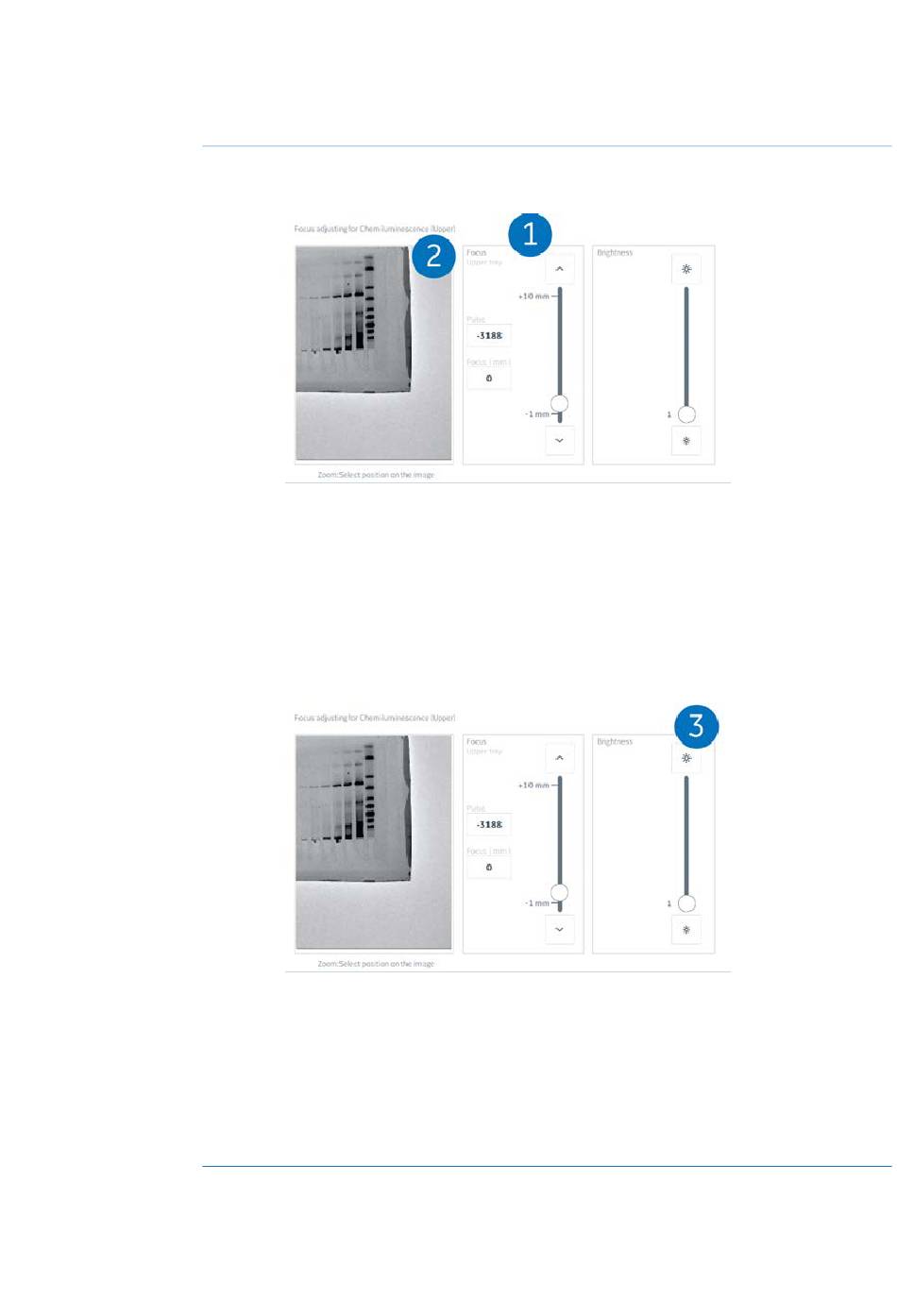

Adjust the slider in the Focus box (1) to change the focus. The result can be
seen in the live view window (2).
Note:
A precise focal distance can also be typed in the Focus (mm) box.
Note:
Clicking on the live view window will zoom in and out of the image.
Adjust the slider in the Brightness box (3) to change the brightness of the
image.
Tap Save to save the focus settings and return to the Chemiluminescence
screen.
Note:
Focus changes will only affect the selected image capture mode. If the user
changes to another mode, for example, Fluorescence, the focal distance will
still be set to the default setting.
2.1 Amersham ImageQuant 800 control software
2 System Preparation
2.1.3 System settings
