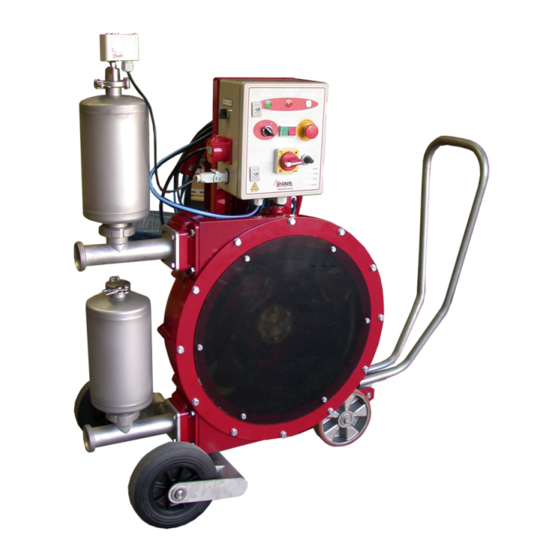

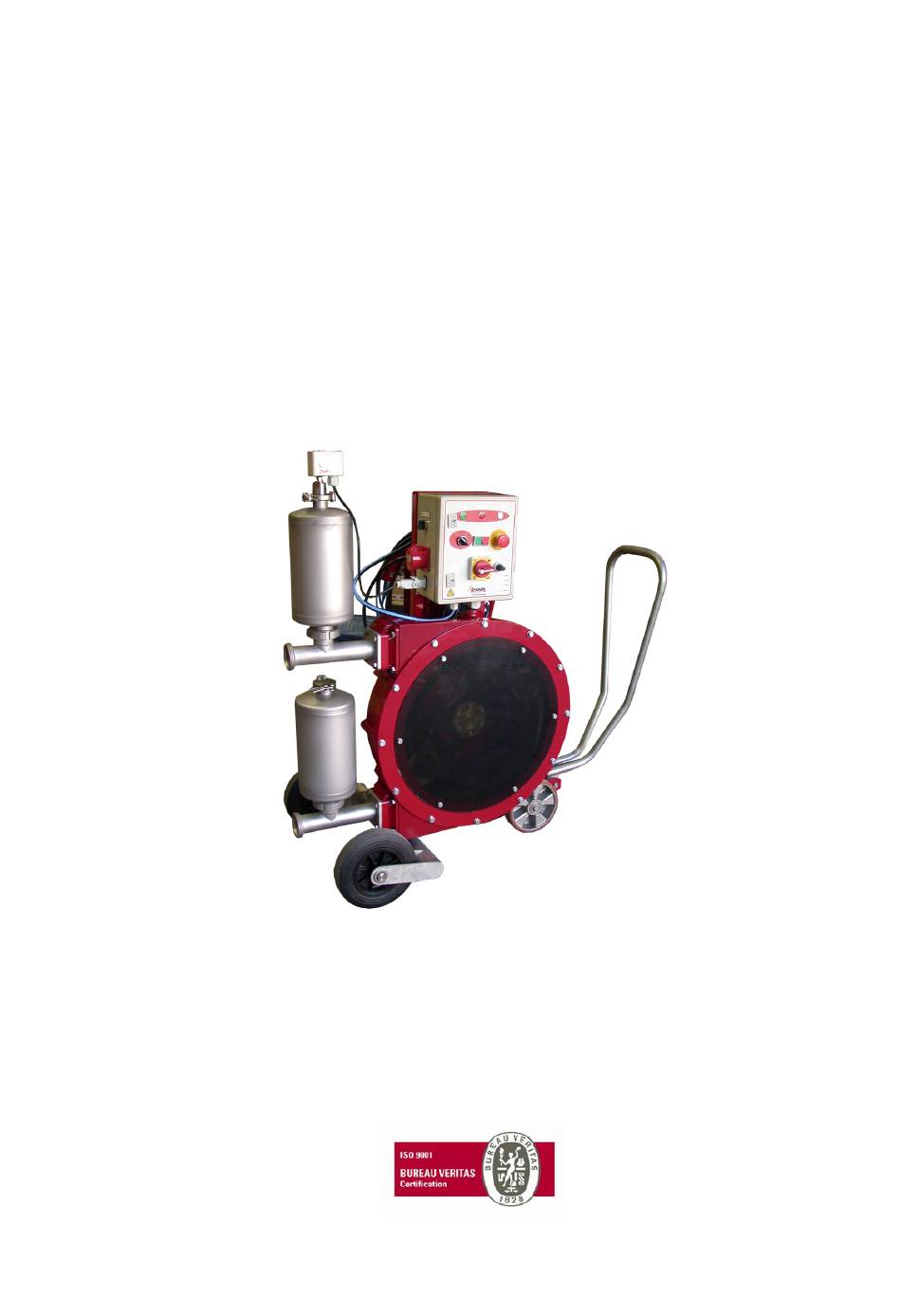

- Page 1 Установка, техническое обслуживание и эксплуатация Инструкция Перистальтический насос PV60 PVT60 INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS PERISTALTIC PUMP PV60 PVT60 c/Telers, 54 Aptdo. 174 E-17820 Banyoles Girona (Spain) Original Manual 01.700.30.0060EN_RevB ED. 2011/02...
- Page 2 Telers, 54 17820 Banyoles (Girona) - Spain Hereby declare that the products PERISTALTIC PUMP PV-60 / PVT-60 Name Type are in conformity with the provisions of the Council Directives: Machine Directive 2006/42/EC, and comply with the essential requirements of said...
-
Page 3: Safety
Commitment to safety at the workplace. Protective goggles requirement. 1.4. GENERAL SAFETY INSTRUCTIONS Read this Instructions Manual carefully before installing the pump and starting it up. Contact INOXPA in case of doubt. 1.4.1. During installation Technical Specifications of Chapter 8 should always be observed. - Page 4 • the parts or lubricants used are not original INOXPA parts and products; • the materials were used incorrectly or negligently, or not in accordance with these instructions and their intended use;...
-
Page 5: Table Of Contents
Technical specifications 8.1. Technical Specifications ....................14 8.2. Weights ........................14 8.3. PV-60 pump dimensions with stabilising tanks..............15 8.4. PVT-60 pump Dimensions....................15 8.5. PV-60 Pump exploded parts diagram ................16 8.6. PV-60 pump parts list ....................17 8.7. -
Page 6: Description
Each pump has performance limits. The pump was selected for certain pumping conditions at the time the order was placed. INOXPA shall not be liable for any damage resulting from the incompleteness of the information provided by the purchaser (nature of the fluid, RPM, etc.). -
Page 7: Installation
4. Installation 4.1. PUMP RECEIPT INOXPA cannot be held responsible for the damage sustained by the equipment during transport or unpacking. Visually check that the packaging is not damaged. The pump will be accompanied by the following documents: • Dispatch notes. -
Page 8: Location
4.3. LOCATION Place the pump as close as possible to the suction tank, and if possible below the fluid level. Place the pump so as to allow sufficient space around it to access the pump and the motor. (See Chapter Technical Specifications for dimensions and weight). -
Page 9: Start-Up
5.1.1. Checks before starting up the pump • Check that the those and rollers are correctly assembled and lubricated. The grease used in the INOXPA pump is silicone based food grade grease. All the pumps are provided with a tub of grease for maintaining the pump. -
Page 10: Operating Problems
6. Operating Problems The following table provides solutions to problems that might arise during pump operation. The pump is assumed to have been properly installed and correctly selected for the application. Please contact INOXPA if technical assistance is required. Operating Problems Probable causes Overheating. -
Page 11: Maintenance
7. Maintenance 7.1. GENERAL INFORMATION Like any other machine, this pump requires maintenance. The instructions contained in this manual cover the identification and replacement of spare parts. The instructions have been prepared for maintenance personnel and for those responsible for the supply of spare parts. -
Page 12: Storage
DO NOT operate the equipment during the steam-sterilisation process. The parts/materials will not suffer damage provided the instructions set out in this manual are followed. Cold liquid cannot be introduced until the pump temperature is below 60 C (140 The pump generates a substantial load loss through the sterilisation process; we recommend the use of a bypass circuit provided with a discharge valve to ensure that the steam / superheated water sterilises the entire circuit. -
Page 13: Disassembly / Assembly Of The Pump
7.4. DISASSEMBLY / ASSEMBLY OF THE PUMP 7.4.1. Changing the tube Disassembly First remove the stabiliser tanks (113) with the inlet and outlet pipes (98). Remove the screws (52D, 52E) in order to detach the pipe clamp (33A) and the pipe adapter (33). To remove the flexible hose (22), start up the pump in the clockwise direction as looking from in front of the electrical switchboard, as illustrated below, with the speed at the lowest setting, and remove the hose from the lower connection. -
Page 14: Technical Specifications
Pump with integrated gearbox drive and frequency selector. Flow rate Max. pressure Speed Power Pump type [bar] [r.p.m.] [kW] PV-60 3,5 - 12 15 - 60 PVT-60 Materials Parts in contact with the product ..........AISI 304 Flexible hose ................NR-A (standard) 8.2. -
Page 15: Pump Dimensions With Stabilising Tanks
8.3. PV-60 PUMP DIMENSIONS WITH BUFFER TANKS. 8.4. PVT-60 PUMP DIMENSIONS. ED.2011/02 8.Technical Specifications... -
Page 16: Pump Exploded Parts Diagram
8.5. PV-60 PUMP EXPLODED PARTS DIAGRAM 8.Technical Specifications ED.2011/02... -
Page 17: Pump Parts List
8.6. PV-60 PUMP PARTS LIST Description Position Quantity Material Pump housing GG-25 Roller GG-25 Pump cover GG-25 Transparent cover -{}-1 Dark methacrylate Bearing shaft F-114 Roller shaft F-114 Bearings support GG-25 Roller support GG-25 Roller support sheet Guide ring Roller stop bushing... -
Page 18: Pvt-60 Hopper Exploded Parts Diagram
8.7. PVT-60 HOPPER EXPLODED PARTS DIAGRAM 8.Technical Specifications... -
Page 19: Hopper Parts List
8.8. PV-60 HOPPER PARTS LIST Position Description Quantity Material Hopper AISI 304 Blade shaft AISI 304 Support Aluminium Guide AISI 304 Foot support AISI 304 Non-vibratory foot AISI 304 Rotating washer PTFE Flat washer PTFE Rotating seal Gasket Reduction gear... - Page 20 Насосы для виноделия — Перистальтический насос PV60 PVT60 http://k-tep.com.ua/ k-tep@ukr.net +38(044)2091823 Office +38 066 9076563 МТС Kиевстар +38 098 3676414 Skype: k-teppumps Замечания Условия поставки: DDP склад г. Киев Заметки Время поставки рассчитано согласно дате предложения и изменяется в зависимости от даты подтверждения заказа.
