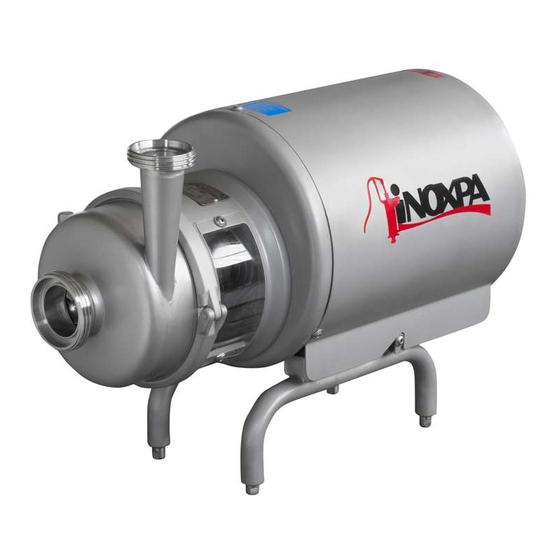

INOXPA PROLAC HCP Ex Installation, Service And Maintenance Instructions
Hygienic centrifugal pump
Hide thumbs
Also See for PROLAC HCP Ex:
Related Manuals for INOXPA PROLAC HCP Ex
Summary of Contents for INOXPA PROLAC HCP Ex

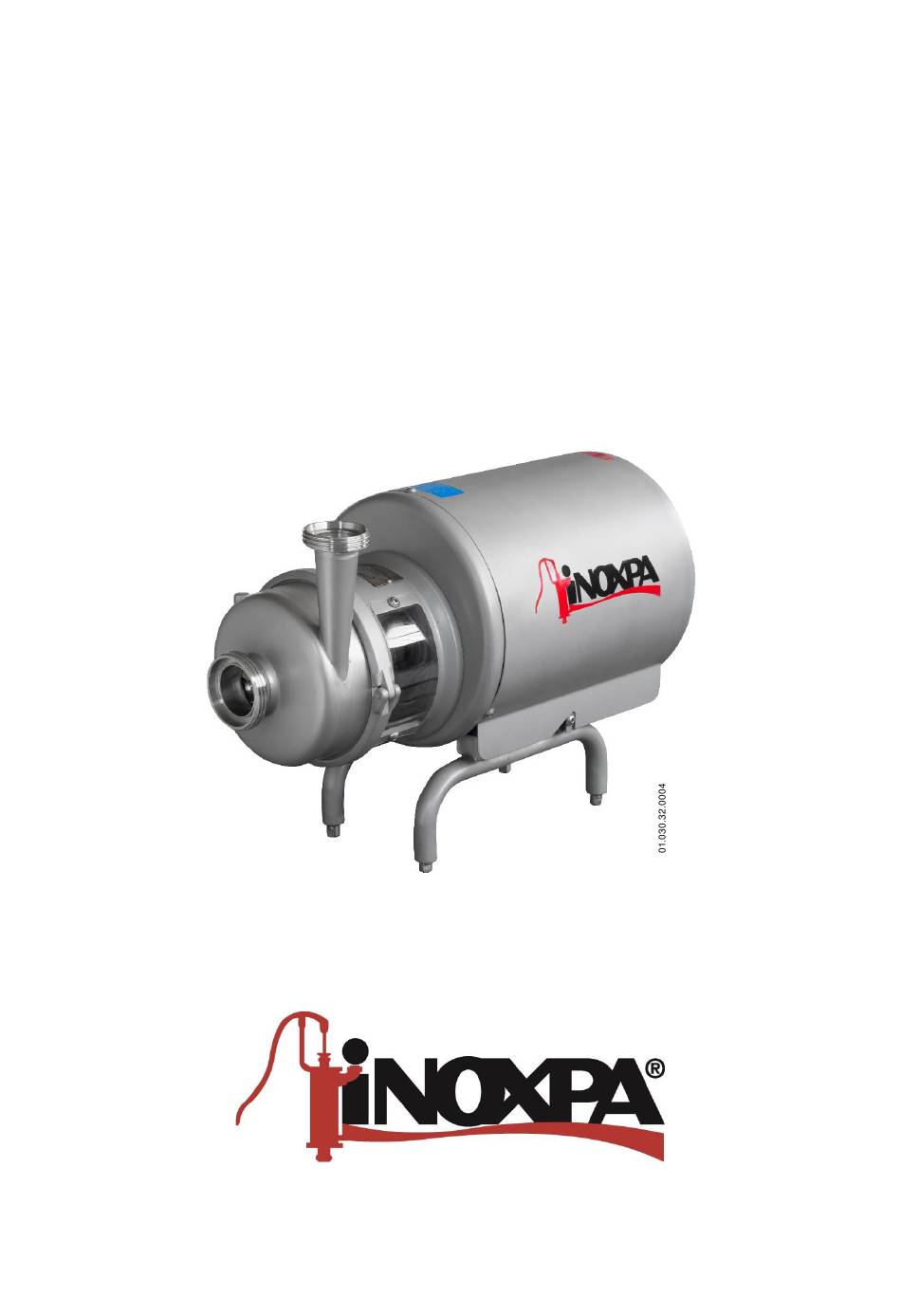

- Page 1 INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS ANNEX ATEX HYGIENIC CENTRIFUGAL PUMP PROLAC HCP Ex Original manual 01.030.30.03EN (C) 2022/11...
- Page 2 01.030.30.08EN (0) 2022/11 EU Declaration of Conformity INOXPA, S.A.U. Telers, 60 17820 – Banyoles (Girona) Hereby declare under our sole responsibility that the machine CENTRIFUGAL PUMP Designation PROLAC HCP Type Prolac HCP 40-110, Prolac HCP 40-150, Prolac HCP 40-205, Prolac HCP 50-150,...
-
Page 3: Table Of Contents
8.7. DISASSEMBLY AND ASSEMBLY OF THE PUMP ..................12 9. Technical specifications ..........................13 9.1. SOUND LEVEL ............................13 9.2. WEIGHT ..............................13 9.3. DIMENSIONS ............................. 13 9.4. PARTS AND PARTS LIST .......................... 13 9.5. DOUBLE MECHANICAL SEAL ........................13 INOXPA S.A.U. 01.030.30.03EN · (C) 2022/11... -
Page 4: Generalities
• Generation of explosive atmospheres and risk of explosion. 2.3. WARRANTY Any warranty issued will be immediately and fully voided and, in addition, INOXPA will be compensated for any product liability claim presented by third parties if (in addition to the conditions already indicated in the manual): •... -
Page 5: Safety
The limit values for working conditions in explosive atmospheres should not be exceeded. INOXPA will not be responsible for any damages that may be caused by the use of the pump in conditions other than those expressed in the ATEX form. -
Page 6: General Information
4. General Information 4.1. DESCRIPTION The PROLAC HCP Ex pump is a monobloc centrifugal pump designed to be used in areas where there is an explosive atmosphere. It is the responsibility of the end user to determine if the pump is suitable for the nature of the explosive atmosphere. -
Page 7: Installation
Bear in mind that the surface temperature of the pump is determined under normal conditions by the temperature of the circulating product, so the table of temperature classes and maximum surface temperature in section 5.2 must be taken into account. INOXPA S.A.U. 01.030.30.03EN · (C) 2022/11... -
Page 8: Adjustable Feet
When pumping flammable or explosive liquids, use a suitable connection. Connect the components of the unit with the ground jumpers to reduce the danger from static electricity. INOXPA S.A.U. 01.030.30.03EN · (C) 2022/11... -
Page 9: Starting The Pump
If the liquids to be drained are flammable, take into account the possible formation of potentially explosive atmospheres and, therefore, the adoption of safe work permits. 6.2. CHECKS WHEN STARTING THE PUMP Not applicable in this ATEX Annex. INOXPA S.A.U. 01.030.30.03EN · (C) 2022/11... -
Page 10: Operating Incidents
Operating incidents 7. Operating incidents Not applicable in this ATEX Annex. INOXPA S.A.U. 01.030.30.03EN · (C) 2022/11... -
Page 11: Maintenance
When ordering spare parts for a pump to work in a classified area, explicitly indicate in the order that it is an ATEX pump and indicate the manufacturing number. If this is not done in this way, INOXPA is not responsible for the pump working with parts that are not suitable for the classified area where it is installed. -
Page 12: Torque
Incorrect assembly or disassembly can cause damage to the pump operation and lead to high repair costs, as well as a long period of inactivity, and even invalidate the equipment protection systems. INOXPA is not responsible for accidents or damages caused by non-compliance with the instruction manual and this annex. -
Page 13: Technical Specifications
Not applicable in this ATEX Annex. 9.3. DIMENSIONS Not applicable in this ATEX Annex. 9.4. PARTS AND PARTS LIST Not applicable in this ATEX Annex. 9.5. DOUBLE MECHANICAL SEAL Not applicable in this ATEX Annex. INOXPA S.A.U. 01.030.30.03EN · (C) 2022/11... - Page 14 Como ponerse en contacto con INOXPA S.A.U.: los detalles de todos los países están continuamente actualizados en nuestra página web. Visite www.inoxpa.com para acceder a la información. INOXPA S.A.U. Telers, 60 – 17820 – Banyoles – Spain Tel.: +972 575 200 – Fax.: +34 972 575 502...
