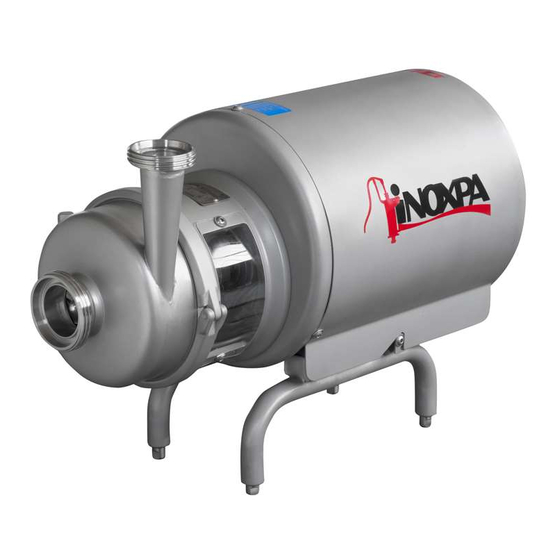

INOXPA PROLAC HCP Ex Installation, Service And Maintenance Instructions
Hide thumbs
Also See for PROLAC HCP Ex:
Table of Contents
Advertisement
Quick Links

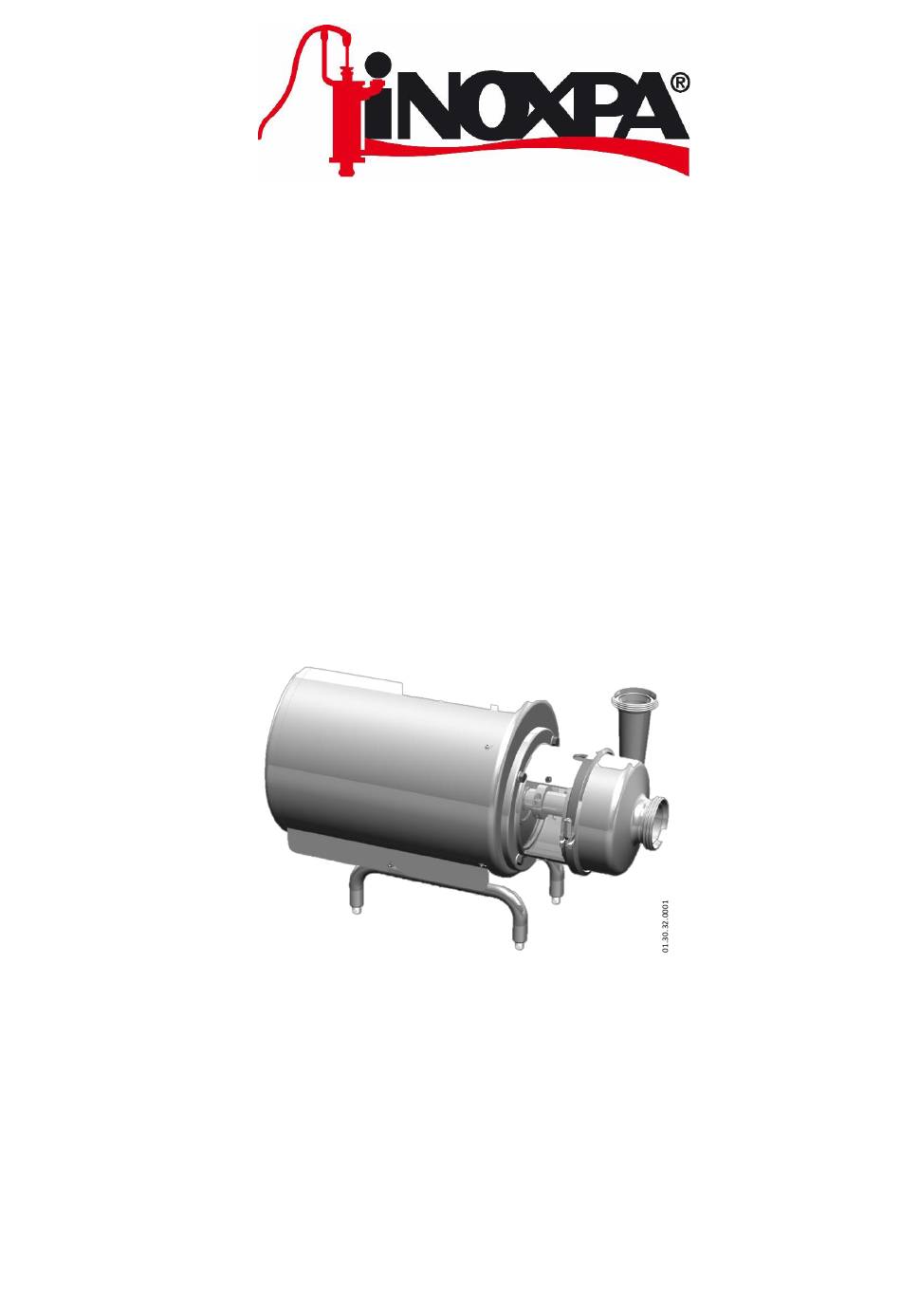

INSTALLATION, SERVICE AND
MAINTENANCE INSTRUCTIONS
ANNEX FOR EQUIPMENT MARKED CE ATEX UNDER DIRECTIVE
2014/34/EU:
PROLAC HCP Ex
The contents of this Annex supplement the information included in the instructions manual.
The instructions included in this Annex must be observed additionally whenever equipment
marked under Directive 2014/34/EU is used.
This Annex is to be supplemented with the manuals of the ATEX certified components of
which the assembly is comprised (e.g. motors, etc.).
INOXPA, S.A.U.
Telers, 60 Aptdo. 174
17820-Banyoles
Tel.: +34 972 57 52 00
Fax: +34 972 57 55 02
inoxpa@inoxpa.com
www.inoxpa.com
Original Manual
01.030.30.03EN
(B) 2020/11
Advertisement
Table of Contents
Related Manuals for INOXPA PROLAC HCP Ex
Summary of Contents for INOXPA PROLAC HCP Ex
- Page 1 MAINTENANCE INSTRUCTIONS ANNEX FOR EQUIPMENT MARKED CE ATEX UNDER DIRECTIVE 2014/34/EU: PROLAC HCP Ex The contents of this Annex supplement the information included in the instructions manual. The instructions included in this Annex must be observed additionally whenever equipment marked under Directive 2014/34/EU is used.
-
Page 2: Safety
The limits of the operating conditions in explosive atmospheres must not be exceeded. This pump was selected according to the operating conditions specified by the user. Therefore, INOXPA disclaims liability for any damage caused by use of the pump in conditions other than those stated in the order. 1.3.3. During maintenance ¡Danger! Important indications regarding protection from explosions. - Page 3 Generation of explosive atmospheres explosion risk. 1.3.5. Warranty Any warranty will be void immediately and lawfully; additionally, INOXPA will be compensated for any civil liability claims submitted by third parties, in the following cases (besides those already described in the manual): •...
-
Page 4: Table Of Contents
2. Table of contents 1. Safety ............................2 1.1. Instructions for start-up ......................2 1.2. Safety ........................... 2 1.3. General safety instructions ...................... 2 2. Table of contents .......................... 4 3. General Information ........................5 3.1. Description ..........................5 3.2. Application ..........................5 4. -
Page 5: General Information
3. General Information 3.1. DESCRIPTION The motors of the PROLAC HCP Ex centrifugal pumps must be suitable for operating under explosive atmospheres. 3.2. APPLICATION This pump was selected for a given set of pumping conditions and operating conditions under explosive atmospheres when the order was placed. INOXPA shall... -
Page 6: Installation
4. Installation 4.1. RECEPTION OF THE PUMP The received pump must be checked to ensure that it is adapted to the working conditions of the classified area and the conditions of the order. 4.1.1. Identification of the pump The shipment should be checked in accordance with the instructions included in the manual. Also, the CE ATEX mark affixed to the manufacturer's plate should be checked in order to verify that it matches the requirements of the order. -
Page 7: Pressurization Tank
Before closing the suction and discharge valves, make sure that the pump is switched-off and has stopped. 4.4.1. Shut-off valves Use valves that are EC marked in accordance with the Directive ATEX 2014/34/EU and in accordance with the manufacturer's instructions and the applicable national and local regulations. -
Page 8: Starting The Pump
5. Starting the pump Before starting up, those responsible must be duly informed about the pump and the safety instructions. This Annex, along with the instructions manual, will be available to staff at all times. In order to carry out any type of work in potentially explosive atmospheres, it is necessary to adopt special safety measures such as permits to work. -
Page 9: Maintenance
When ordering spare parts for a pump operating within a classified area, it must be expressly stated that the pump is an ATEX pump and the manufacture number must be quoted. Otherwise, INOXPA cannot ensure that the pump will operate with parts that are suitable for the classified area within which it is installed. -
Page 10: Assembly / Disassembly Of The Pump
INOXPA disclaims any responsibility for accidents or damage caused by failure to observe the instructions of the manual and of this Annex. In addition to the instructions included in the manual, the instructions of the motor's manufacturer must also be followed strictly in order to open the motor safely. -
Page 11: Technical Specifications
7. Technical Specifications In the following table, the maximum temperature values must comply with protection level T4. Product Temperature range -20ºC/108ºC Environment Temperature range -20ºC/40ºC Materials Parts in contact with the product AISI 316L (1.4404) Other steel parts AISI 304L (1.4306) Gaskets in contact with the product EPDM (standard) FPM (other materials available upon request) - Page 12 functioning properly and it must be inspected. For example, the sealing system may have leaks in the middle or be open due to insufficient backpressure of the washing liquid. b. Simple mechanical seal + thermosensor, balanced. The instructions of the mechanical seal manufacturer, and in particular those concerning the temperature probe, must be followed at all times.
- Page 14 NOTAS...
- Page 15 NOTAS...
- Page 16 NOTAS...
- Page 17 INOXPA COLOMBIA SAS BOGOTÁ S.T.A. PORTUGUESA LDA Pbx 57-1-7427577 ALGERIZ inoxpa.colombia@inoxpa.com Tel. +351 256472722 comercial.pt@inoxpa.com In addition to our branches, INOXPA has a network of independent distributors in over 50 countries worldwide. For further information, visit our website www.inoxpa.com...
