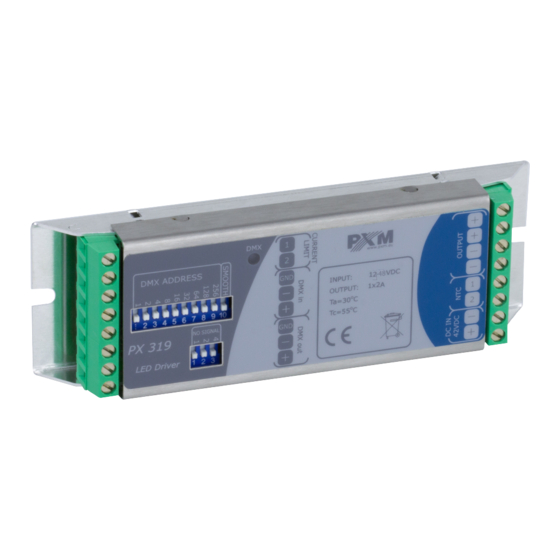

- Page 1 PX319 Driver LED 1x2A/48V MANUAL...
-
Page 2: Table Of Contents
9. Technical data..................... Declaration of conformity..................Manufacturer reserves the right to make modifications in order to improve device operation. tel.: 12 626 46 92 PXM Marek Żupnik spółka komandytowa Ver. 1.2 fax: 12 626 46 94 Podłęże 654 E-mail: info@pxm.pl 32-003 Podłęże... -
Page 3: General Description
1. GENERAL DESCRIPTION The PX319 driver is designed to control LEDs. It has voltage of 12 - 48 V DC and a maximum current-carrying capacity of 2 A. It is possible to set the driver output current according to the parameters of receivers LED. -
Page 4: Connections And Control Elements Description
3. DESCRIPTION OF THE JOINTS AND CONTROLS DMX signal LED resistor input limiting output to linear the output current LED modules DMX IN DMX OUT power supply DMX address switch temperature “No signal” and PWM frequency sensor input mode switch 4. -
Page 5: Dmx Address Setting
5. DMX ADDRESS SETTING PX319 allows for setting the address DMX. The address is set in a binary code using the “DIP switch”. Below are some examples of setting the address DMX. Nine first “DIP switches” are responsible for the address; the tenth switch is responsible for activating the “smooth” function. 2 3 4 5 6 7 8 9 2 3 4 5 6 7 8 9 2 3 4 5 6 7 8 9... -
Page 6: Smooth Function Settings
5.1. SMOOTH FUNCTION SETTINGS The “smooth” function and DMX address set to 1. 2 3 4 5 6 7 8 9 With the smooth function enabled, transitions between successive control signal values are smoothed, allowing for smooth changes in the brightness of the connected LEDs. This prevents the light “vibration”... -
Page 7: Driver Output Current Setting
6. DRIVER OUTPUT CURRENT SETTING The PX319 driver is equipped with a function to set the output current controlling linear LED modules. Depending on the number of modules connected to the device, it is necessary to select the control current by choosing a resistor with the appropriate resistance. The table below shows the correct selection of resistors: Current limit Resistor... -
Page 8: Temperature Control
In the absence of any connection between resistor and PX319 driver, it will operate with adjusted 250 mA output current (as for 100 Ohm resistor connection). Below is the table allowing for the selection of resistor barcodes: Significant Temperature Color Multiplier Tolerance figures... -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM DMX controller PX015 Chaser Scene DMX+ DMX- % 100 100 % Club 6p resistor setting the output current for PX319 temperature sensor NTC 4K7 thermistor lamp housing to successive modules 12 - 48 V DC linear LED module power supply unit linear LED module PX319 must be connected to DMX line in series. -
Page 10: Technical Drawing
8. TECHNICAL DRAWING 132 mm 124 mm 9. TECHNICAL SPECIFICATION - DMX channels: - Output channels number: - Power supply: 12 - 48 V DC - Maximum current consumption: - Power consumption without load: 0,5 W - Scene brightness: - Output load: 250 - 2000 mA - Output sockets: screw terminals... -
Page 11: Declaration Of Conformity
30-701 Kraków fax: 12 626 46 94 DECLARATION OF CONFORMITY according to guide line 2004/108/WE Name of producer PXM Marek Żupnik spółka komandytowa Manufacturer’s address: ul. Przemysłowa 12 30-701 Kraków We declare that our product: Product name: Driver LED 1x2A/48V...
