- Page 1 PX163+ Driver LED C.V. 48 x 700mA User manual...
-
Page 2: Table Of Contents
Table of Contents 1 Description....................4 2 Safety conditions..................5 3 Connectors and control elements............6 4 Designation of displayed messages............7 5 Device programming.................8 5.1 Button features......................9 5.2 Group DMX address settings..................9 5.3 Individual DMX address settings................10 5.4 Dimmer DMX address settings................10 5.5 Operation mode...................... - Page 3 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 32-003 Podłęże mail: info@pxm.pl Rev.1-4 BDO register number 000005972 www.pxm.pl 14.11.2019...
-
Page 4: Description

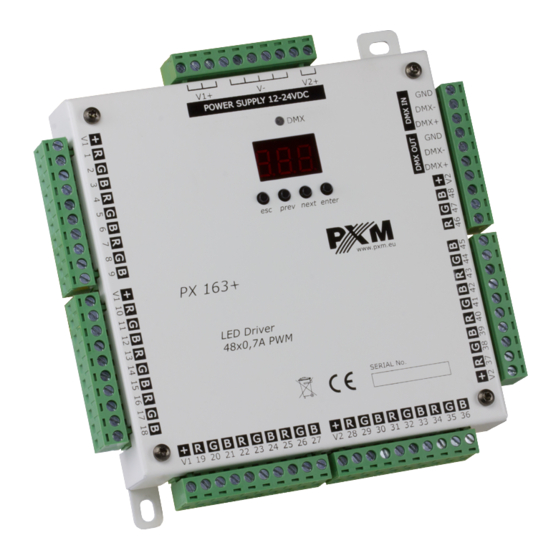

Description PX163+ is a 48-channel voltage driver designed for the RGB matrix systems, ideally suited for controlling lighting in large ares consisting of multiple modular elements. An example can be here the facade – LED screens or illuminated floors. It is possible to control all 48 channels through the DMX-512 protocol with use of the built-in DMX signal receiver. -
Page 5: Safety Conditions
The housing has been adapted for wall mounting, and the screw connectors allow quick and easy installation. Safety conditions Driver LED C.V. 48 x 700mA is a device powered with safe voltage 12 – 24V DC; however, during its installation and use the following rules must be strictly observed: 1. -
Page 6: Connectors And Control Elements
11. The device cannot be used in places with temperature lower than +2°C or higher than +40°C. Connectors and control elements 1. Driving outputs(48) 5. LED display 2. DMX OUT 6. Control buttons 3. DMX IN 7. Diode of DMX signal 4. -
Page 7: Designation Of Displayed Messages
Designation of displayed messages DMX address of the device – the basic position in the MENU setting of the parameters for all channels simultaneously setting of the parameters for each channel separately setting of DMX address selection of the driving method selection of the response to the lack of DMX signal driving in the effective mode switching on of all outputs at 100%... -
Page 8: Device Programming
the restore default settings menu in the device the function of smoothing of transitions between different values minimum level of brightness white color balance setting white balance mode white balance off 3-channel white balance (for RGB lamps) 4-channel white balance (for RGBW lamps) setting red balance setting green balance setting blue balance... -
Page 9: Button Features
5.1 Button features escape – goes back to the previous MENU level or discards changes made previous – scrolls to the previous feature on the same MENU level or decreases the parameter's value next – scrolls to the next feature on the same MENU level or increases the parameter's value enter –... -
Page 10: Individual Dmx Address Settings
5.3 Individual DMX address settings The PX163+ module has an option that allows for changing individual settings. It enables assigning any DMX address to every output channel. The simplest example of implementation of this function is to control the lightness of one-color LEDs connected to all outputs. In such case, the same address must be assigned to all channels so that all outputs are controller by one slider on the control panel. -
Page 11: Operation Mode
5.5 Operation mode The PX163+ driver can work in the effective mode (EFF), 48-channel (48) or 48-channel + dimmer (48d). In order to select the mode, enter Cbn function and then select 48 for the 48-channel mode or 48b for the 48-channel + dimmer or EFF for the 4 channel mode (effective) and confirm with the key “enter”. - Page 12 The description of operation of EFF – 4 byte (effective) mode CHANNEL 2 CHANNEL 3 CHANNEL 4 CHANNEL 1 EFFECT SPEED FADE BRIGHTNESS <0–12> Program 1 <13–25> Program 2 <26–38> Program 3 <39–51> Program 4 <52–64> Program 5 <65–77> Program 6 <78–90>...
-
Page 13: No Dmx Signal Response
5.6 No DMX signal response This function is used both to protect the system against the disappearance of DMX signal and to gain the driving of LEDs without connecting an external driver. After it has been activated, in case of the lack of DMX signal, the module will perform the selected function by itself. -
Page 14: Smooth
P01 – P18 – choosing a ready program provided in the device software. For each program it is possible to set the speed (SPd) of the effects reproduction in range 0,1 – 99,9s and smoothness of change of steps (FAd) in range 0 – 100, where 0 is a step transition, and 100 completely smooth and dimming values (diM) in the range 0 –... -
Page 15: Frequency Of Pwm Signals
5.8 Frequency of PWM signals The Frq function allows you to set the base frequency to drive LEDs. This function is extremely useful for applications in the television industry. By using “flicker free” technology, you can avoid an unpleasant image flicker effect caused by a lack of appropriate synchronization of LED driving signal. -
Page 16: White Balance
The way it functions is presented in the diagram below : Brightness This parameter is useful when the diodes connected to the driver show unstable functioning at the low control levels. In such a case the increase in the value OFFSET can result in achieving better dimming effects. -
Page 17: Screen Saving
ENTER 6 x NEXT ENTER ENTER NEXT NEXT ENTER NEXT NEXT NEXT ENTER NEXT ENTER When the 3cH mode is chosen, all three exit channels are calibrated, in the 4cH mode only the first 3 channels of each four channels are calibrated. The white channel (4 –... -
Page 18: Temperature
ENTER On – screen saver activation oFF – screen saver deactivation 7 x NEXT ENTER NEXT 5.12 Temperature The PX163+ was equipped with the possibility to check the temperature inside the device. If the temperature exceeds 70°C, there is a linear limitation of the device power until the exits will be switched off completely when the temperature reaches 90°C. -
Page 19: Default Settings
5.13 Default settings The device was equipped with the possibility to restore the default values and they can be restored in two ways: • using the command dEF (situated in the menu tree) ENTER 9 x NEXT Pressed ENTER ENTER while turning the device on (using the key “previous”) •... -
Page 20: Memory Error
The default settings in the PX163+ are the following : DMX address: 001 • operational mode: 48 • no signal: oFF • smooth: Level 1 • • frequency: 274Hz (Lo) SCr option: oFF • white balance: OFF • 5.13.1 Memory error The device is equipped with a built-in memory work control function. -
Page 21: Rotation Of The Display
5.15 Rotation of the display If necessary, you can rotate the display without rotating whole device. Just hold two middle buttons (“previous” and “next”) at the same time for approximately ~3s. normal position inverted position NOTE! The keys on the reverse of the display are set in the same way as the normal position, keys are reversed. -
Page 22: Service Mode
5.16 Service mode The service mode allows to turn the chosen channel on for 100% quickly. In order to switch in on, go to the initial menu and simultaneously press the keys “escape” and “previous” longer. The message will appear in the Simultaneously pressed screen, which means that none of the channels is ESC and PREVIOUS... -
Page 23: Rdm - Available Parameters
RDM – available parameters PX163+ supports the DMX–RDM protocol. DMX protocol allows only for a one-way data transmission, while its extension the RDM protocol can transmit information in two directions. This makes possible to simultaneously send and receive information, and hence the possibility of monitoring activities of the compatible devices. - Page 24 Parameter name Description additional device description; It is possible to enter an additional DEVICE_LABEL * 0x0082 device description using up to 32 ASCII characters. DMX_PERSONALITY 0x00E0 DMX operational mode DMX_PERSONALITY_ description of individual 0x00E1 DESCRIPTION operational modes choice of the option for the Smooth SMOOTH_OFF|1|2|3|4 * 0x801A function...
- Page 25 Parameter name Description SERIAL_NUMBER 0x8030 device serial number PROGRAM_DIMMER * 0x8032 setting the dimming value turning the display on the segment DISPLAY_FLIP_OFF|ON * 0x8038 display of the device PWM_FREQ_OFFSET * 0x8055 minimum level of brightness DIMMER_ADDRESS * 0x8061 DMX address of the dimmer * –...
-
Page 26: Programming
Programming ENTER ENTER NEXT ENTER NEXT NEXT NEXT PREV ENTER ENTER NEXT ENTER NEXT NEXT ENTER ENTER NEXT NEXT NEXT NEXT ENTER NEXT NEXT NEXT NEXT NEXT ENTER ENTER NEXT NEXT NEXT ENTER ENTER NEXT NEXT NEXT NEXT NEXT ENTER NEXT NEXT ENTER... -
Page 27: Connection Scheme
Connection scheme Power supply The receivers are connected to control outputs and power supply as shown in the figure below. To each line you can connect only determined number of light sources, depending on the wattage and max load for each line i.e. -
Page 28: Dimensions
10 Dimensions... -
Page 29: Technical Data
11 Technical data type PX163+ power supply 12 – 24V DC DMX channels output channels number current consumption max. 34A 12 bits for 274Hz / 10 bits for 1kHz of control accuracy resolution outputs load capacity max. 0,7A / channel output sockets terminal blocks weight... - Page 30 Podłęże, 14.11.2019 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: Driver LED C.V. 48 x 700mA Product code: PX163+ Meets the requirements of the following standards, as well as harmonised...
