- Page 1 PX254 LED Driver 3 x 6A OC MANUAL...
-
Page 2: Table Of Contents
8. Technical data........................Declaration of conformity......................Manufacturer reserves the right to make modifications in order to improve device operation. tel.: (12) 385 83 06 PXM Marek Żupnik spółka komandytowa fax: (12) 626 46 94 Podłęże 654 E-mail: info@pxm.pl Rev 2.3 32-003 Podłęże... -
Page 3: General Description
2. SAFETY CONDITIONS PX254 LED Driver 3 x 6A OC is a device powered with safe voltage 24 V; however, during its installation and use the following rules must be strictly observed: 1. The device may only be connected to 7 - 24 V DC with current-carrying capacity compatible with technical data. -
Page 4: Description Of The Connectors And Control Elements

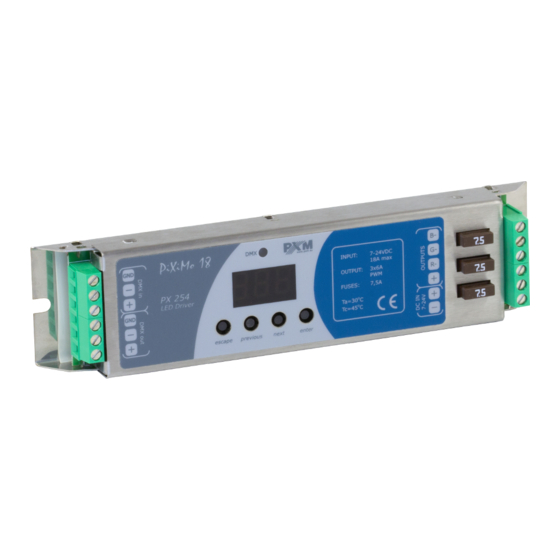

3. DESCRIPTION OF THE CONNECTORS AND CONTROL ELEMENTS DMX512 output display DMX-512 input control outputs power supply programming keys 4. DESIGNATION OF DISPLAYED MESSAGES DMX address of a device - a basic item in the MENU setting parameters for all channels simultaneously setting parameters for each channel individually inverting the meter display 180 degrees DMX address setting... - Page 5 scene programme no. 17 DMX address settings for first channel MASTER mode on / off number of channels being sent in the MASTER mode white colour balance setting red balance green balance blue balance white colour balance on / off program playback speed level of steps change smoothness in the program red during scene programming colour...
-
Page 6: Device Programming
5. DEVICE PROGRAMMING After you switch on the module, its display shows the program version for a brief moment. To access the main menu, press „enter”, and the display will show Adr. Press „previous” or „next” to select the appropriate menu and press „enter” to confirm your selection. 5.1. -
Page 7: Colour Mode
5.3. Colour mode enter enter next This driver can operate under various control modes. Depending enter on the mode selected, the device will occupy different numbers next of DMX channels. The following modes are available: next Ÿ HSL mode (Hue, Saturation, Lightness) is available on 3 DMX channels, responsible for hue, saturation and lightness of output channels, respectively;... - Page 8 Channel 1 Channel 2 Channel 3 Channel 4 Channel 5 Channel 6 Channel 7 GREEN BLUE MODE SPEED FADE BRIGHTNESS – – – 0 ÷ 7 - Program 1 – – – 8 ÷ 15 - Program 2 – – –...
-
Page 9: Reaction Of The Device To Dmx Signal Interruption
5.4. Reaction of the device to DMX signal interruption This function is used both to protect the system against disappearance of DMX signal and to gain control of LEDs without connecting an external driver. After it has been activated, in case of the lack of DMX signal, the module will perform the selected function by itself. - Page 10 DESCRIPTION OF PROGRAMS The following tables show the values for each output channel - R, G, B in programs from 1 up to 18 (P01 - P18). The value of 255 corresponds to the maximum lightness level on a given channel, 127 - 50% of power level, 0 - full channel blanking.
-
Page 11: Master/Slave Function
5.5. MASTER / SLAVE function The PX254 module has a built-in DMX512 receiver and can be controlled from any desktop or controller running in this standard. Moreover, it is equipped with a programmable function of response to no DMX signal (noS). With 18 built-in default programs, it is possible to obtain interesting effects without an external controller. -
Page 12: Smooth
enter enter next previous enter enter next previous - setting the red colour value enter - setting the green colour value - setting the blue colour value next - white balance on or oFF previous enter next enter next 5.7. Smooth The driver has an option of smoothing the output signal. -
Page 13: Light Control Frequency
5.8. Light control frequency The Frq function allows for setting the basic control frequency. This feature is extremely useful for controlling lamps for the television industry. By applying the "flicker free" technology, it is possible to avoid the unpleasant flickering effect which is caused by improper signal synchronization that controls the LEDs. -
Page 14: Default Settings And Memory Error
INPUT: INPUT: 7-24VDC standard 15A max OUTPUT: OUTPUT: position upside-down buttons are placed in the same way as in normal position position; display is flipped 5.11. Default settings and memory error If you have any difficulty accessing the device menu, e.g. it is not possible to enter a particular menu level or it is necessary to restore the device to its default settings, follow the instructions below. -
Page 15: Rdm Description Of Available Parameters
5.12. RDM description of available parameters The PX254 supports the DMX-RDM protocol. DMX protocol allows only of a one-way data transmission, while its extension the RDM protocol can transmit information in two directions. This makes possible to simultaneously send and receive information, and hence the possibility of monitoring activities of the compatible devices. - Page 16 Parametr name Description value of control level of red chanel balance; Minimum value is 0 and maximum is 100 (the value equals to pecentage of control level). BALANCE_RED * 0x8011 For the maximum value (100) the LEDs work with maximum brightness. Default value is 100.
- Page 17 Parametr name Description choice of work mode for No DMX signal; Minimal Value is 1, maximal 21. For values 1- 18 menu allows to chose program from 1 to 18 which is played during no DMX signal NO_SIG_P1- 0x801C detection. For the 19 value a scene saved in 18|SC_19|ON_20|OFF_21 memory is set and for the 20 value all outputs are set to ON with maximum value.
- Page 18 Parametr name Description to activate or deactivate the balance of output channels; BALANCE ON/OFF * 0x8027 A value of 0 is a balance off, a value of 1 active balance. The default value is set to 0. LEDs refresh frequency; The minimum value is 366 and the maximum PWM_FREQENCY * 0x8028...
-
Page 19: Programming Scheme
5.13. Programming scheme enter enter next enter next next enter enter next next next next next next enter next next next next enter enter next next next enter enter next next next enter next next next next next next enter next enter next... -
Page 20: Cennection Scheme
6. CONNECTION SCHEME PX254 features passive DMX and thus a maximum of 32 PX254 devices can be connected to one DMX line without using a DMX repeater. At the end of the line, a DMX line terminator (120 Ohm resistor) must be connected (to the last device). Connections must be made using cables of suitable thickness. - Page 21 b) sample connection of warm and cold white LEDs strips for Dynamic White mode With such a connection of strips, in dW control mode , the value 0 on the color temperature channel corresponds to warm white color, and warm white LED strip value 255 - cold white cold white LED strip INPUT:...
-
Page 22: Dimensions
7. DIMENSIONS 175 mm 8. TECHNICAL DATA - DMX channels - power supply 7 - 24 V DC - total current consumption max. 20 A - current consumption without load 30 mA for 12 V DC 40 mA for 24 V DC - number of output channels - control accuracy 16 bit... -
Page 23: Declaration Of Conformity
Name of producer: PXM Marek Żupnik sp. k. Manufacturer’s address: ul. Przemysłowa 12 30-701 Kraków, Poland We declare that our product: Product name: LED Driver 3 x 6A OC Product code: PX254 complies with the following standards: LVD: PN-EN 61347-2-13:2008 EMC:...
