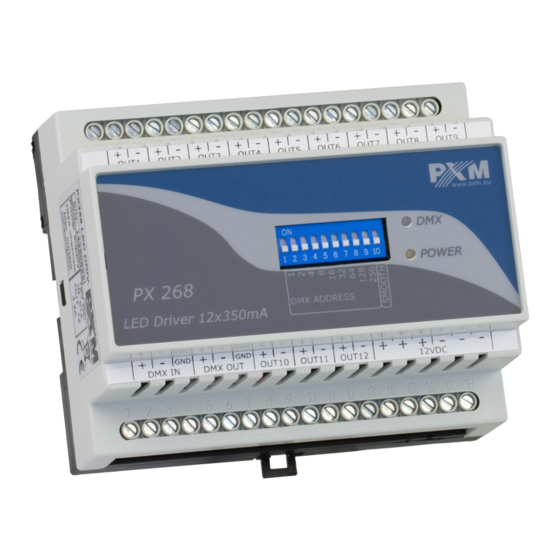

- Page 1 PX268 PiXiMo 12350 Driver LED 12x350 mA Manual...
- Page 2 8. Declaration of Conformity..................Manufacturer reserves the right to make modifications in order to improve device operation. tel.: +48 12 626 46 92 PXM Marek Żupnik Sp. komadytowa Ver. 1.1 fax: +48 12 626 46 94 ul. Przemysłowa 12 E-mail: info@pxm.pl 30-701 Kraków, Poland...
- Page 3 1. GENERAL DESCRIPTION The PiXiMo 12350 driver is designed to control LEDs, it is ideal for use in simple systems. Built-in receiver allows to control of 12 channels directly with DMX protocol. To each of the 12 channels you can connect up to three Power LEDs.
- Page 4 3. CONNECTIONS AND CONTROL ELEMENTS DESCRIPTION Following control outputs OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8 OUT9 12350 Passive DMX-512 Control Power supply type input outputs DMX-512 output...
- Page 5 4. DMX ADDRESS SETTING The PX268 allows to set an address on a single DMX channel. The start address is set in binary code using a switch-type "DIP switch". Below You will find some sample settings of the start address - next to the address number is picture of "DIP switch" set up. First 9 switches are responsible for setting the start DMX address, the last (10th) "DIP switch"...
- Page 6 5. CONNECTION SCHEME Due to use of passive-type DMX in the PX268 driver, a 120 Ohm terminator is needed at the end of DMX line. Such a solution allows to connect up to 32 of the PX268 drivers to a DMX controller (serial connection).
- Page 7 6. DIMENSIONS OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8 OUT9 12350 105 mm 60 mm 7. TECHNICAL DATA DMX output channels: Power supply: 12V DC Max. current consumption: 4,2 A Power consumption without load: 0,8 W Number of output channels: Control accuracy: 16 bit Output load:...
- Page 8 30-701 Kraków, Poland fax: +48 12 626 46 94 DECLARATION OF CONFORMITY according to guide lines 2004/108/EC Name of producer: PXM Marek Żupnik spółka komandytowa Manufacturer’s address: ul. Przemysłowa 12 30-701 Kraków, Poland We declare that our product: Product name:...
