- Page 1 PX760 Gate 2 DMX RDM PoE User manual...
-
Page 2: Table Of Contents
9 Upgrade.....................24 10 Connection scheme................26 11 Dimensions.....................28 12 Technical data..................29 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 Firm. 1.07 32-003 Podłęże mail: info@pxm.pl Rev.1-2... -
Page 3: Description

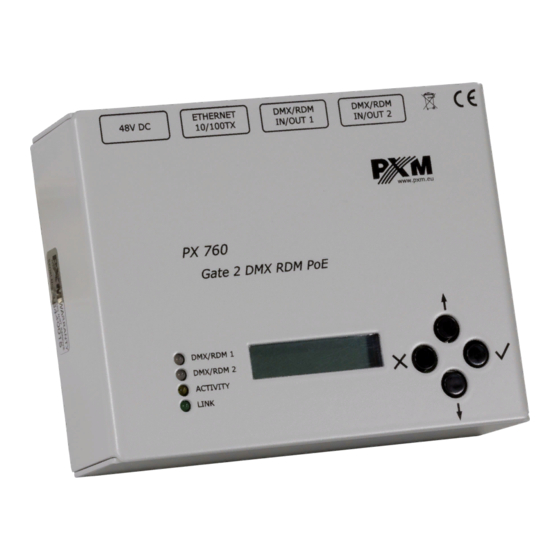

Description Gate 2 DMX RDM PoE device was created for 2-way converting Art-Net signal into two DMX512 and DMX512 ports on Art-Net. The gate is powered by PoE (Power over Ethernet) in the IEEE 802.3af standard, which allows to power the device via twisted-pair cable without using an external power supply while transmitting data, it is optionally powered by 48V DC. -
Page 4: Safety Conditions
Safety conditions PX760 Gate 2 DMX RDM PoE is a device powered with safe voltage 48V DC, however, during its installation and use the following rules must be strictly observed: 1. The device may only be connected to 48V DC (stabilized voltage) with current-carrying capacity compatible with technical data. -
Page 5: Connectors And Control Elements
Connectors and control elements programming buttons LED indicators display... -
Page 6: Power Supply
Power supply The Gate 2 DMX RDM PoE device can be powered from two power sources. The first is PoE (Power over Ethernet) in the IEEE 802.3af standard using a twisted-pair cable, without using a power supply, the second is a standard 48V DC power supply from an external power supply (no power supply included). -
Page 7: Programming The Device
Programming the device 5.1 Button features (escape) - allows you to exit the parameter being programmed ✕ without saving any changes or to move to a higher menu level ↓ (next) - moves you back through the menu or decreases values being set ↑... -
Page 8: Description Of Information Parameters
5.2 Description of information parameters The PX760 provides you with the following device information, such as: • gate model and current IP address (if an address is provided by DHCP, an asterisk * is added) gate serial number and version number of the software installed •... -
Page 9: Dmx In / Out Port Settings
ENTER PX760 G2 DMX RDM 2.137.176.112 2 x NEXT ENTER ENTER Network config. IP address IP address -> 2.137.176.112 [2].137.176.112 NEXT ENTER Subnet mask Subnet mask 255.0.0.0 [255].0.0.0 NEXT ENTER Gateway address Gateway address 2.0.0.1 [2].0.0.1 NEXT ENTER DHCP DHCP [Off] NEXT DHCP... -
Page 10: Art-Net Configuration
5.5 Art-Net configuration Below is a diagram showing the [ART-NET config.] menu and a description of individual parameters that can be changed depending on the user's needs. ENTER PX760 G2 DMX RDM 2.137.176.112 3 x NEXT ENTER ENTER ENTER ART-NET config. Port 1 Universe Universe... - Page 11 previous page previous page ENTER ENTER DMX parameters Break time -> 176us ENTER Net switch Net switch NEXT 0 0x00 [0 0x00] Break time NEXT [176us] ENTER ENTER Subet switch Subet switch MAB time 0 0x0 [0 0x0] 12us NEXT NEXT ENTER ENTER...
- Page 12 S: (Sub-Net switch) sub-net number in the Art-Net protocol • (range 0 – 15 dec, 0x0 – 0xf hex) U: Universe switch • Using [Universe] you can change all 3 universe number components (Net switch, Sub-Net switch and Universe switch). There is a possibility of quick preview from the main menu of Universes assigned to a given port, the diagram below: ENTER...
- Page 13 with RDM protocol support [Auto discovery]. The device automatically searches when the device is started up. [DMX Parameters] – configuration of DMX parameters for a given port, times: [Break time] – duration of a low state along the line at the beginning of •...
-
Page 14: Art-Net Configuration In Mode Dmx Art-Net
[Timeout value] – a value in seconds after which transmission through a DMX port is stopped following Art-Net signal loss → 5.6 Art-Net configuration in mode DMX Art-Net In the PX760 gate in the mode of converting the signal from DMX512 to →... -
Page 15: Presets Menu
ENTER PX760 G2 DMX RDM 2.137.176.112 3 x NEXT ENTER ENTER ENTER ART-NET config. Port 1 Universe Universe -> -> 0 0x0000 0 0x0000 [0 0x0000] NEXT ENTER Universe switch Universe switch 0 0x0 [0 0x0] NEXT ENTER Direction (in) Direction (in) DMX ->... -
Page 16: Settings For The Other Parameters
5.8 Settings for the other parameters The miscellaneous sub-menu [Miscellaneous] allows you to turn on [On] or off [Off] the screen saver [Screensaver]. After 15 seconds the display and the all the indicator LEDs will be turned off. The device will continue to operate, without any interruption of the other parameters. -
Page 17: Setting The Display Contrast
5.9 Setting the display contrast If the device has a problem with the readability of messages displayed on the screen, it is possible to change its settings. To do this, press the ~10x Esc button. The contrast can be set in range from 1 to 64. If the screen is illegible and only “... -
Page 18: Information Communicated By Led Indicators
Information communicated by LED indicators The indicators diodes on the front panel of the gate provide information on the status of the unit: the two upper LEDs are bi-color ones (blue – orange) and communicate the status of DMX-RDM. Each diode is assigned to one of the two DMX ports. - Page 19 Additional information communicated by the LED indicators: if the screen saver mode is enabled or a “Art-Net Mute Indicators” • command has been received, all the diodes go out if the gate receives an “Art-Net Indicate” command, all the diodes start •...
-
Page 20: Px760 Cooperation With The Grandma2 Console
PX760 cooperation with the grandMA2 console The PX760 gate can work with the grandMA2 console, however, support for devices supporting the RDM protocol requires changing the console settings. To operate RDM devices, the settings must be changed in the gate [Auto discovery] on enabled, the gate will continuously search for RDM devices. - Page 21 The PX760 gate should be connected to the console via an Ethernet cable to the [ETHERCON 2 (ETH1)] connector with the IP address set so that the console is in the same network as the gate. If Gate 2 DMX RDM is on the 2.x.x.x network with the mask of 255.0.0.0, then for the device to work together, the console must be on the same network.
- Page 22 If everything is correctly configured, the gate continuously searches for the devices supporting the RDM protocol, the console is in the same network as the gate and has enabled RDM and Art-Net Output Active support. After adding the main RDM window to the main scree, you should see a list of all devices that supported the RDM protocol:...
-
Page 23: Art-Net Commands
Art-Net commands List of Art-Net commands supported in PX760 Name Value OpPoll 0x2000 OpPollReply 0x2100 OpOutput / OpDmx 0x5000 OpSync 0x5200 OpAddress 0x6000 OpInput 0x7000 OpTodRequest 0x8000 OpTodData 0x8100 OpTodControl 0x8200 OpRdm 0x8300 OpFirmwareMaster 0xf200 OpFirmwareReply 0xf300... -
Page 24: Upgrade
Upgrade In order to update the gate firmware, use the program DMX-Workshop, which is available on the Artistic Licence website: http://www.artisticlicence.com. Firmware updates are available on the manufacturer's website. 1. In the main menu field select the option [Node List] 2. -
Page 26: Connection Scheme
10 Connection scheme... - Page 27 → a) device operating in Art-Net DMX512 mode with a 48V DC power supply connected 48V DC Router Driver → b) device operating in DMX512 Art-Net mode using PoE power supply in the IEEE 802.3af standard R o u t e r / s w i t c h with PoE power supply Driver Driver...
-
Page 28: Dimensions
11 Dimensions... -
Page 29: Technical Data
12 Technical data type PX760 DMX/RDM lines DMX/RDM input socket 3-pin or 5-pin Neutrik XLR RDM protocol support bi-directional signal conversion optically isolated XLR connectors galvanic isolated XLR connectors Ethernet connector type Neutrik etherCON DHCP protocol support Art-Net version Art-Net 1, 2, 3, 4 communication method: Art-Net, display and buttons firmware update... - Page 30 width: 127mm dimensions height: 42mm depth: 99mm "Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd”...
- Page 31 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: Gate 2 DMX RDM PoE Product code: PX760 meets the requirements of the following standards, as well as harmonised standards: PN-EN IEC 63000:2019-01...
