PX736
DMX Splitter 2/10
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMX Splitter 2/10 and is the answer not in the manual?

Questions and answers

Summary of Contents for PXM DMX Splitter 2/10

  • Page 1 PX736 DMX Splitter 2/10 User manual...
  • Page 2: Table Of Contents

    3 Connectors and control elements............5 4 Connection scheme...................7 5 Dimensions....................7 6 Technical data.....................8 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 32-003 Podłęże mail: info@pxm.pl Rev.1-1 BDO register number 000005972 www.pxm.pl...
  • Page 3: Description

    Description PX736 allows for providing branches in extensive DMX installations. Connecting in series multiple receivers in one line may be hard. Applying splitter in the topology allows to create branches on DMX line. Moreover, the PX736 will amplify and regenerate DMX signal, removing interference effects, as well as eliminating signal reflections on the line.
  • Page 4: Safety Conditions

    Safety conditions The PX736 is a device powered directly from power grid 230V AC, what may result in electric shock in case of not following safety rules. During its installation and use the following rules must be strictly observed: 1. Installation of the device should be carried out by a person with appropriate qualifications in accordance with this document.
  • Page 5: Connectors And Control Elements

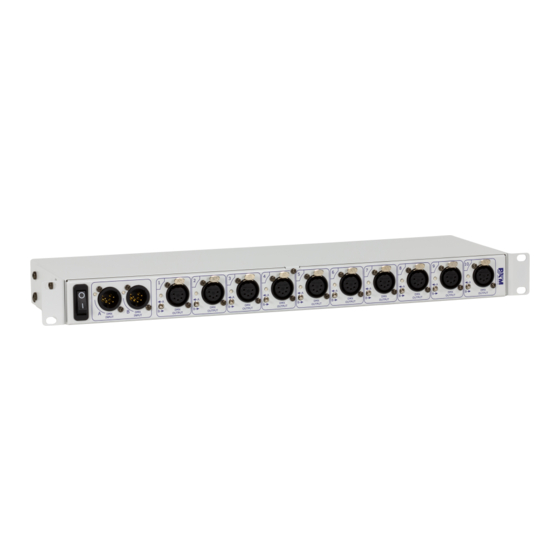

    11. Use only a slightly damp cloth for cleaning – the splitter must be completely disconnected from the power supply at this time. Connectors and control elements PX736 is equipped with two DMX input, ten DMX outputs, signaling diodes and input selection switches. The indicator diodes on the front panel provide information on the status of the unit : when the splitter is turned on, input diodes A and B flash twice...
  • Page 6 FRONT PANEL OF THE DEVICE – indicator diodes, switches and power input LED indicators output LED indicators input selector switch on / off power switch FRONT PANEL OF THE DEVICE – socket description DMX input ten DMX outputs REAR PANEL OF THE DEVICE product serial number PowerCON TRUE1 Neutric connector...
  • Page 7: Connection Scheme

    Connection scheme Each of the ten outputs needs to be assigned a single input (A or B). For example, for 7 outputs are assigned to input A, while 3 output to input B (example in the diagram below). In order to select either input A or B, use the switches located next to the output.
  • Page 8: Technical Data

    Technical data type PX736 DMX INPUT / OUTPUT lines 2 / 10 signal regeneration DMX input selection individually for each output DMX line optical isolation overvoltage protection INPUT / OUTPUT insulation breakdown voltage >1000V type of DMX signal cable shielded twisted pair cable signal cable diameter 22 or 24 AWG data cable impedance...
  • Page 9 Podłęże, 21.01.2020 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: DMX Splitter 2/10 Product code: PX736 meets the requirements of the following standards, as well as harmonised standards: PN-EN IEC 63000:2019-01...

This manual is also suitable for:

Px736
